70346CS - 0.44" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

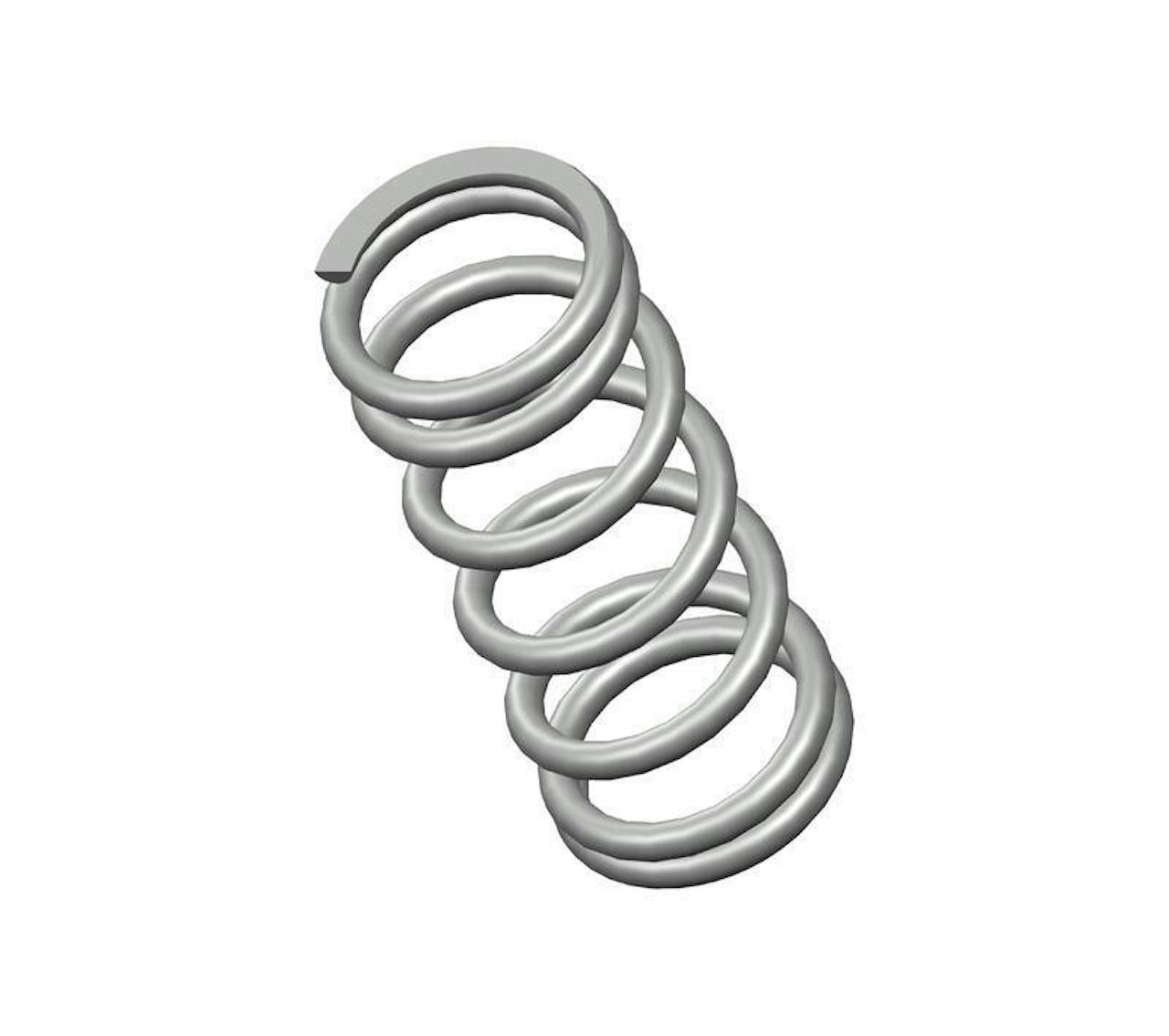

Compression spring manufactured from music wire with 7 coils and closed & ground ends. This spring features an O.D. of 0.18", and an I.D. of 0.136".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 70346
Ends Closed & Ground
Finish None
Free Length 0.44 in
Inside Diameter 0.136 in
Material Music Wire
Outside Diameter 0.18 in
Part Type Standard
Rate 17 lbs/in
SKU 70346CS
Solid Length 0.15 in
Suggested Max Deflection 0.2 in
Suggested Max Load 3.5 lbf
Total Coils 7
Wire Diameter 0.022 in
The compression spring 70346CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 70346 compression spring design exhibits exceptional tensile strength and resilience.

The 70346 design is manufactured with a free length of 0.44", with an outer diameter of 0.18", an inner diameter of 0.136", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.

The 70346CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 70346 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
