Century Spring

70182CS - 0.88" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

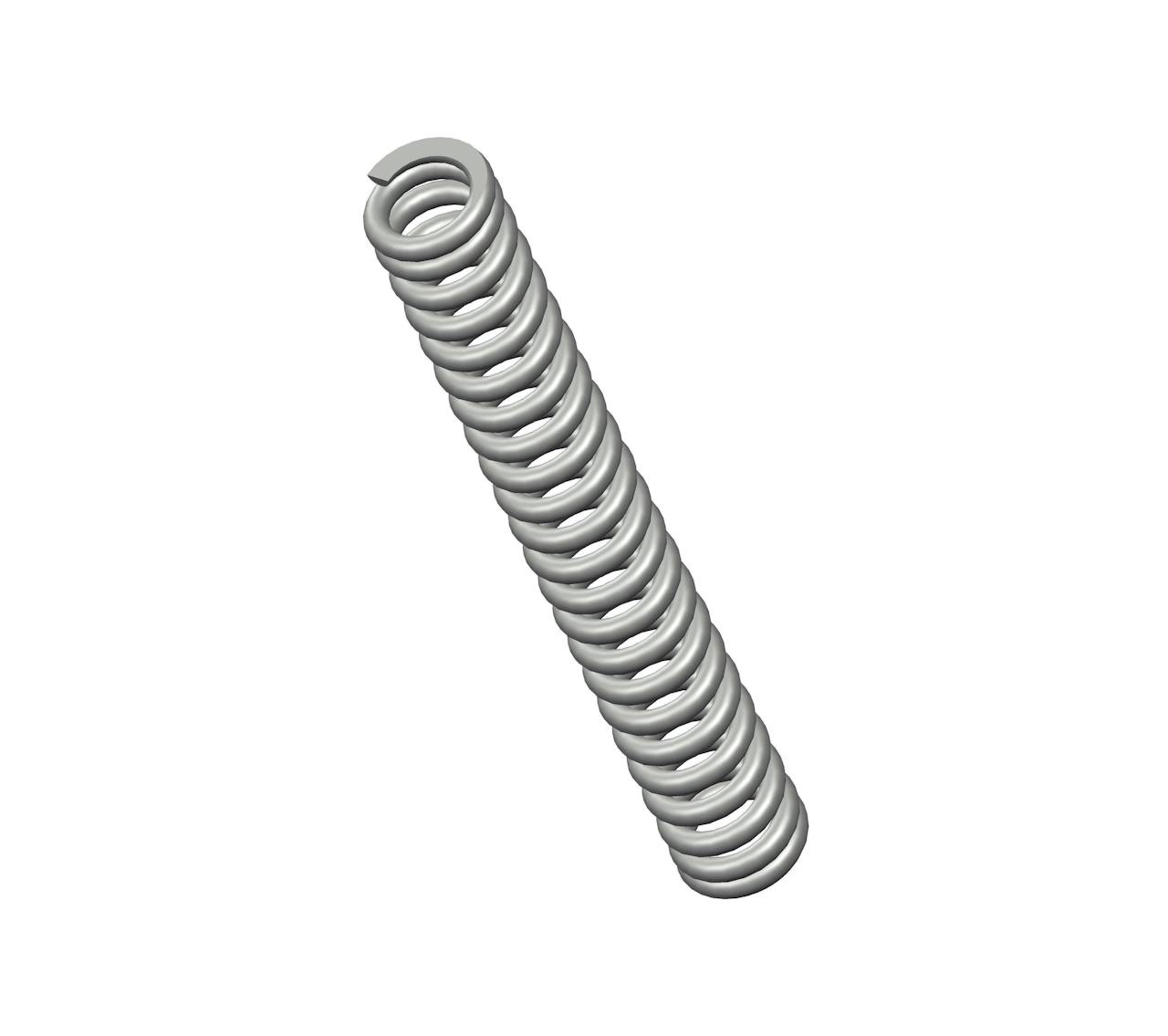

Compression spring manufactured from music wire with 22.9 coils and closed & ground ends. This spring features an O.D. of 0.12", and an I.D. of 0.076".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 70182
Ends Closed & Ground
Finish None
Free Length 0.88 in
Inside Diameter 0.076 in
Material Music Wire
Outside Diameter 0.12 in
Part Type Standard
Rate 17 lbs/in
SKU 70182CS
Solid Length 0.5 in
Suggested Max Deflection 0.29 in
Suggested Max Load 5 lbf
Total Coils 22.9
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 70182
Ends Closed & Ground
Finish None
Free Length 22.35 mm
Inside Diameter 1.93 mm
Material Music Wire
Outside Diameter 3.05 mm
Part Type Standard
Rate 2.98 N/mm
SKU 70182CS
Solid Length 12.7 mm
Suggested Max Deflection 7.37 mm
Suggested Max Load 22.24 N
Total Coils 22.9
Wire Diameter 0.56 mm
The 70182CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.022" diameter music wire, the 70182 spring design exhibits reliable strength across its 22.9 active coils, withstanding repeated compression cycles with a maximum load of 5 lbf without succumbing to fatigue.

We manufacture the 70182 design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 17 lbs/in along its recommended maximum of 0.29" deflection. For best results, your application should fully accommodate the inner (0.076") and outer (0.12") diameters of this spring and be designed for its closed & ground end configuration.
