Century Spring

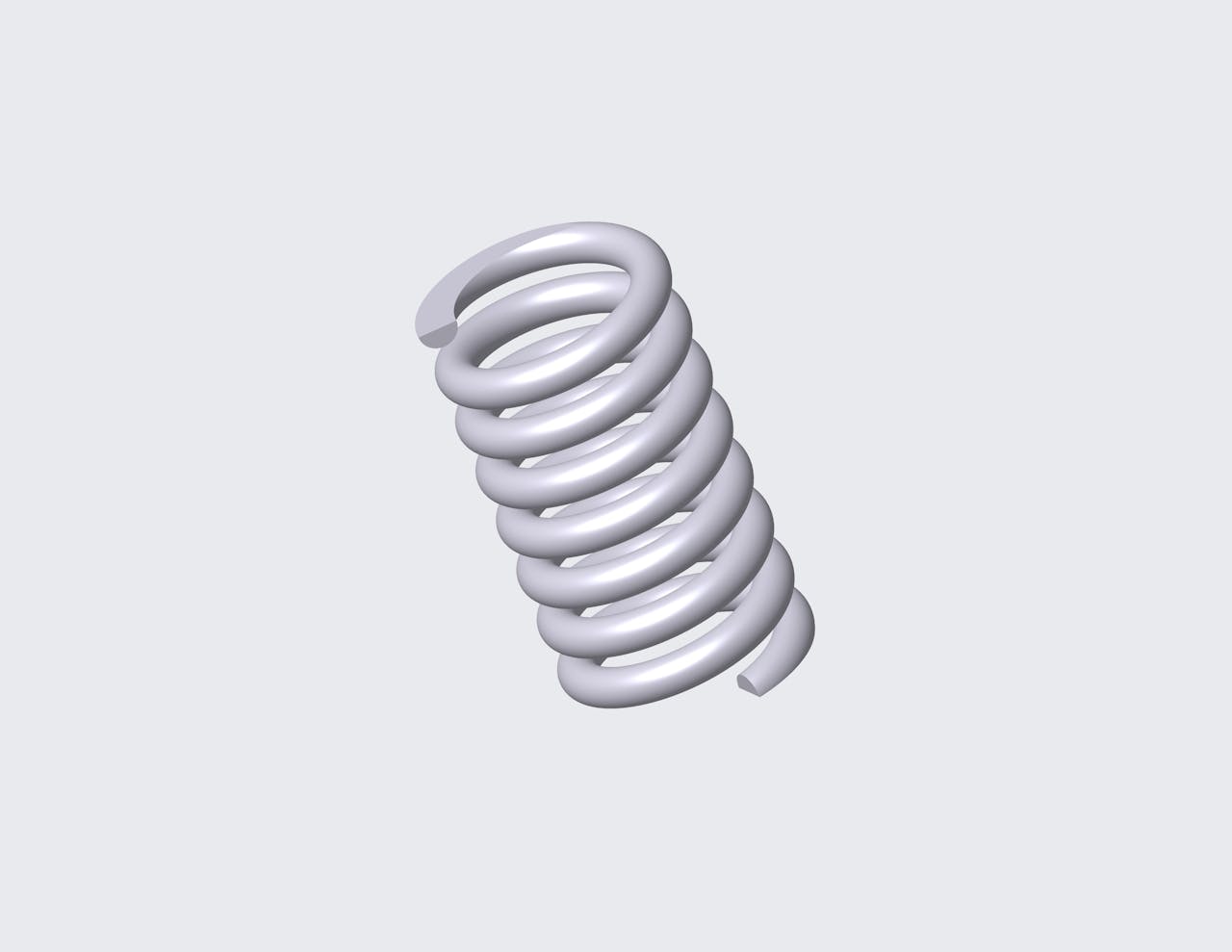

69244SCS - 0.88" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.34".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 69244S
Ends Closed & Ground
Finish Passivated
Free Length 0.88 in
Inside Diameter 0.34 in
Material 316 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 138.214 lbs/in
SKU 69244SCS
Solid Length 0.56 in
Suggested Max Deflection 0.197 in
Suggested Max Load 27.228 lbf
Total Coils 7
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 69244S
Ends Closed & Ground
Finish Passivated
Free Length 22.35 mm
Inside Diameter 8.64 mm
Material 316 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 24.2 N/mm
SKU 69244SCS
Solid Length 14.22 mm
Suggested Max Deflection 5 mm
Suggested Max Load 121.11 N
Total Coils 7
Wire Diameter 2.03 mm
The 69244S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 69244SCS compression spring is designed with a free length of 0.88" total of 6 coils, and a rate of 40.954 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 69244S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
