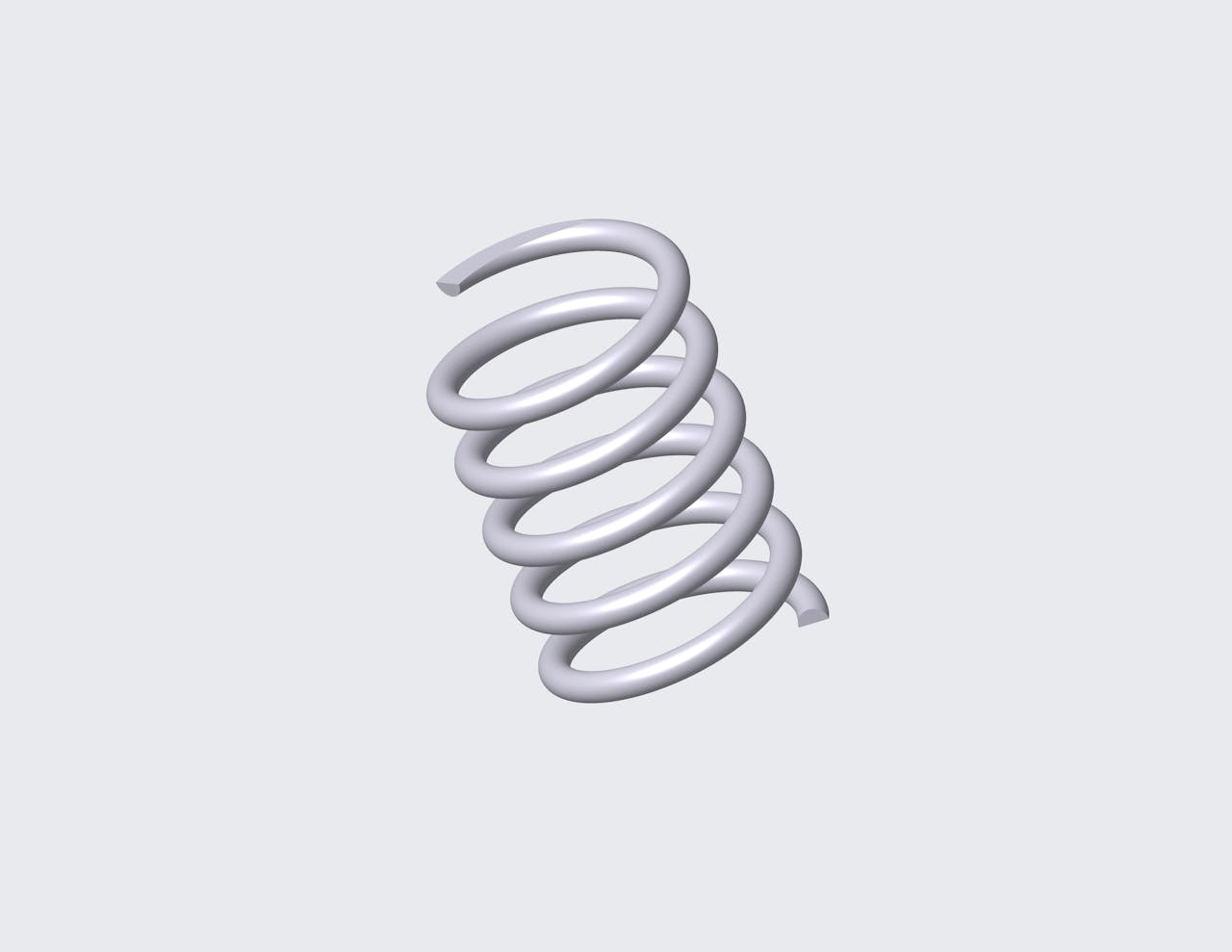

69232SCS - 0.75" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.39".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 69232S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.75 in |
| Inside Diameter | 0.39 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 43.267 lbs/in |
| SKU | 69232SCS |
| Solid Length | 0.275 in |
| Suggested Max Deflection | 0.221 in |
| Suggested Max Load | 9.562 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.055 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 69232S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 19.05 mm |
| Inside Diameter | 9.91 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 7.58 N/mm |
| SKU | 69232SCS |
| Solid Length | 6.99 mm |
| Suggested Max Deflection | 5.61 mm |
| Suggested Max Load | 42.53 N |
| Total Coils | 5 |
| Wire Diameter | 1.4 mm |
The compression spring 69232SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 69232S compression spring design exhibits exceptional tensile strength and resilience.
The 69232S design is manufactured with a free length of 0.75", with an outer diameter of 0.5", an inner diameter of 0.39", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 43.267 lbs/in.
The 69232SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 69232S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 69232S design is manufactured with a free length of 0.75", with an outer diameter of 0.5", an inner diameter of 0.39", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 43.267 lbs/in.
The 69232SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 69232S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
