69225SCS - 0.72" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

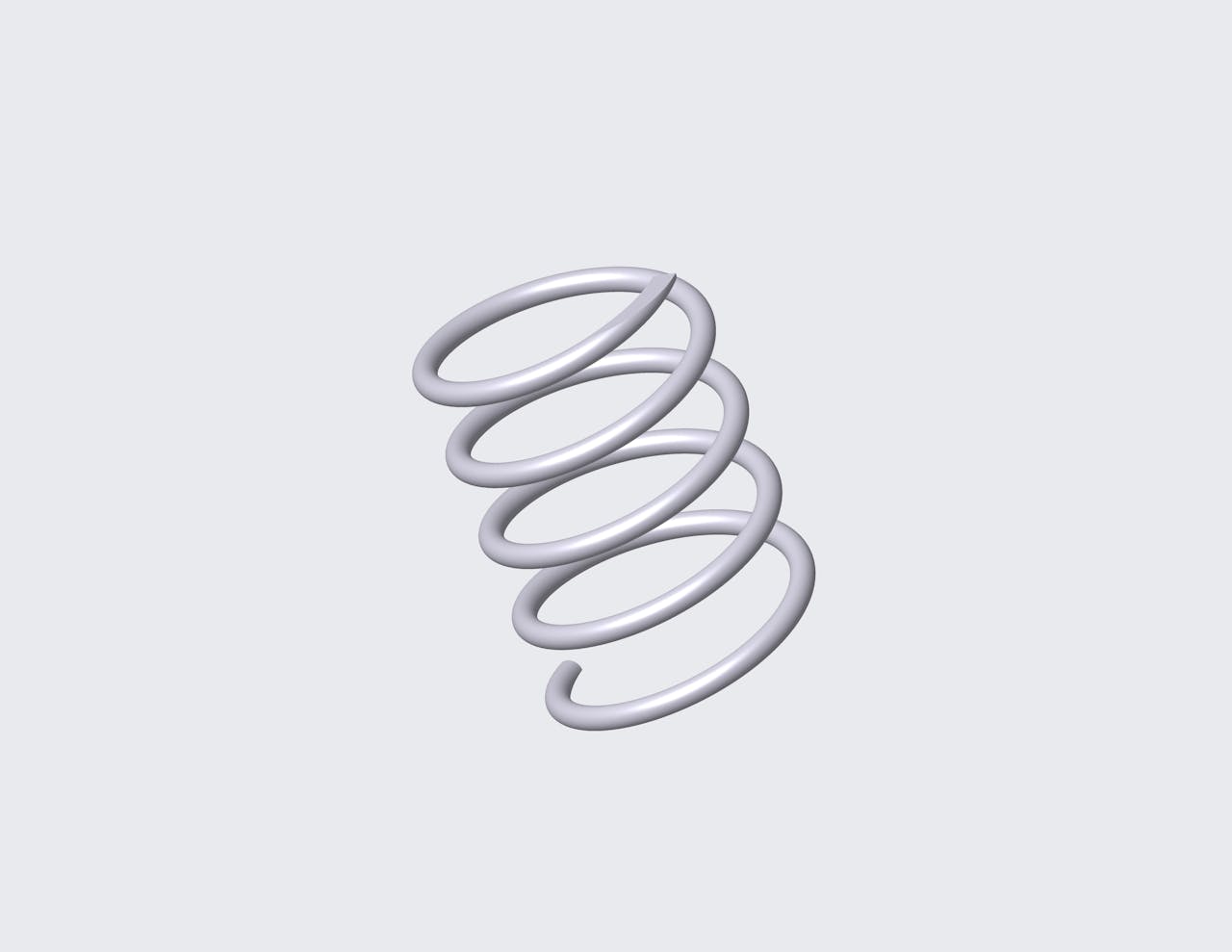

Compression spring manufactured from 316 stainless steel with 4.25 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.416".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 69225S
Ends Closed & Ground
Finish Passivated
Free Length 0.72 in
Inside Diameter 0.416 in
Material 316 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 17.994 lbs/in
SKU 69225SCS
Solid Length 0.179 in
Suggested Max Deflection 0.251 in
Suggested Max Load 4.516 lbf
Total Coils 4.25
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 69225S
Ends Closed & Ground
Finish Passivated
Free Length 18.29 mm
Inside Diameter 10.57 mm
Material 316 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 3.15 N/mm
SKU 69225SCS
Solid Length 4.55 mm
Suggested Max Deflection 6.38 mm
Suggested Max Load 20.09 N
Total Coils 4.25
Wire Diameter 1.07 mm
The 69225SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.042" diameter 316 stainless steel, the 69225S spring design exhibits reliable strength across its 4.25 active coils, withstanding repeated compression cycles with a maximum load of 4.516 lbf without succumbing to fatigue.

We manufacture the 69225S design to provide a compression spring that is 0.72" long at rest and provides a consistent rate of 17.994 lbs/in along its recommended maximum of 0.251" deflection. For best results, your application should fully accommodate the inner (0.416") and outer (0.5") diameters of this spring and be designed for its closed & ground end configuration.
