Century Spring

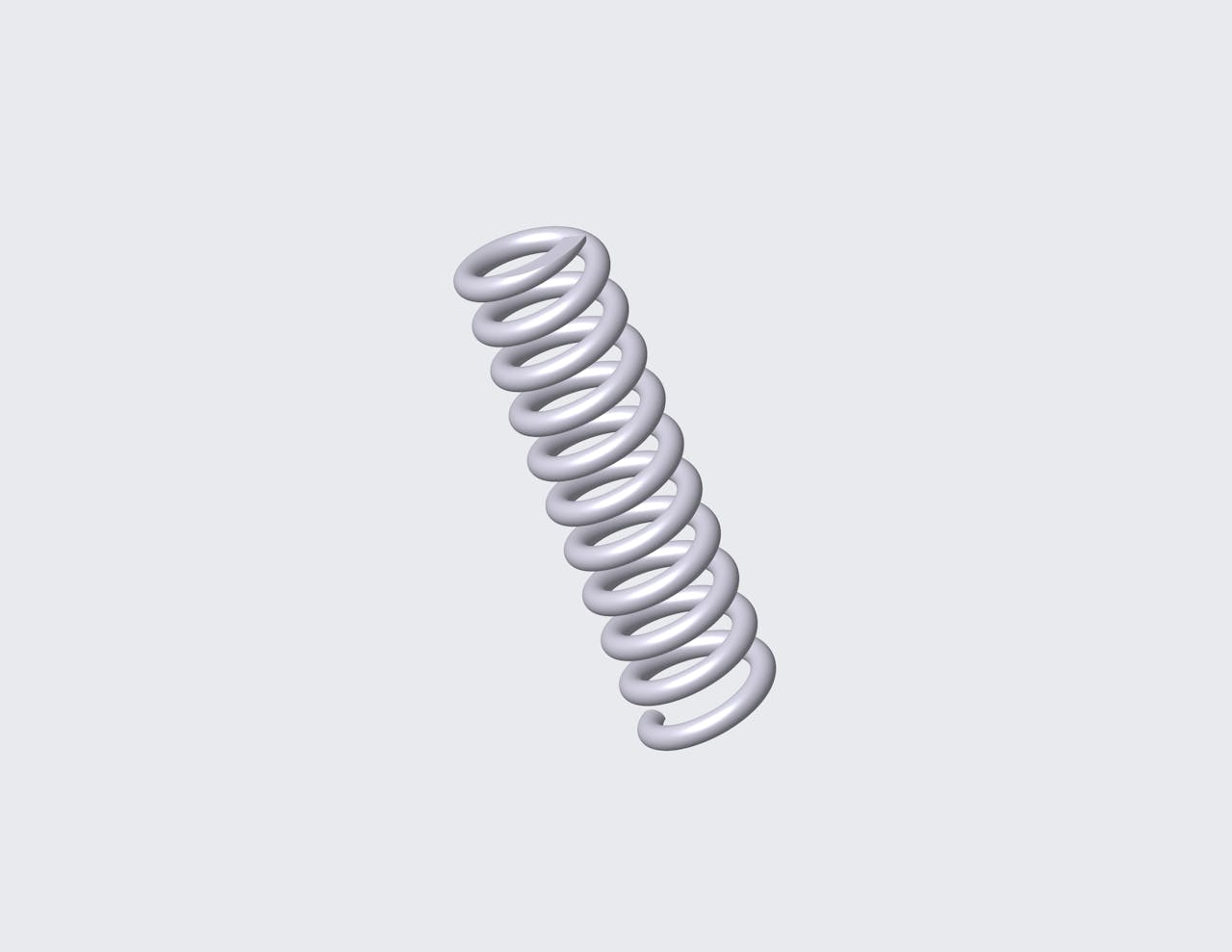

69183SCS - 1.75" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.324".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 69183S
Ends Closed & Ground
Finish Passivated
Free Length 1.75 in
Inside Diameter 0.324 in
Material 316 Stainless Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 97.059 lbs/in
SKU 69183SCS
Solid Length 0.8 in
Suggested Max Deflection 0.289 in
Suggested Max Load 28.05 lbf
Total Coils 10
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 69183S
Ends Closed & Ground
Finish Passivated
Free Length 44.45 mm
Inside Diameter 8.23 mm
Material 316 Stainless Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 17 N/mm
SKU 69183SCS
Solid Length 20.32 mm
Suggested Max Deflection 7.34 mm
Suggested Max Load 124.77 N
Total Coils 10
Wire Diameter 2.03 mm
The 69183SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter 316 stainless steel, the 69183S spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 28.05 lbf without succumbing to fatigue.

We manufacture the 69183S design to provide a compression spring that is 1.75" long at rest and provides a consistent rate of 97.059 lbs/in along its recommended maximum of 0.289" deflection. For best results, your application should fully accommodate the inner (0.324") and outer (0.484") diameters of this spring and be designed for its closed & ground end configuration.
