Century Spring

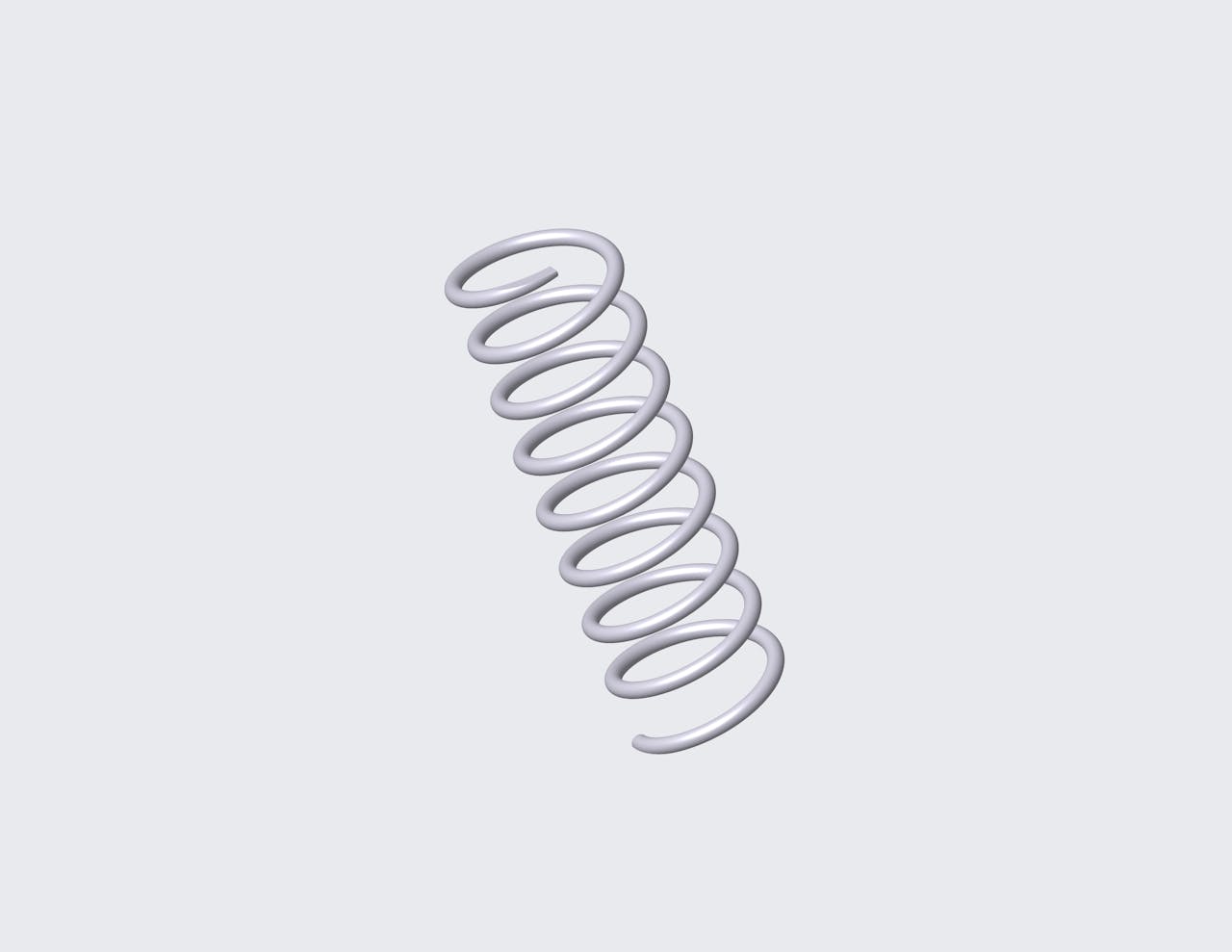

69167SCS - 1.5" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.389".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 69167S
Ends Closed & Ground
Finish Passivated
Free Length 1.5 in
Inside Diameter 0.389 in
Material 316 Stainless Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 12.752 lbs/in
SKU 69167SCS
Solid Length 0.38 in
Suggested Max Deflection 0.514 in
Suggested Max Load 6.555 lbf
Total Coils 8
Wire Diameter 0.0475 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 69167S
Ends Closed & Ground
Finish Passivated
Free Length 38.1 mm
Inside Diameter 9.88 mm
Material 316 Stainless Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 2.23 N/mm
SKU 69167SCS
Solid Length 9.65 mm
Suggested Max Deflection 13.06 mm
Suggested Max Load 29.16 N
Total Coils 8
Wire Diameter 1.21 mm
The 69167S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 69167SCS compression spring is designed with a free length of 1.5" total of 8.25 coils, and a rate of 5.85 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 69167S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
