69135SCS - 0.94" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

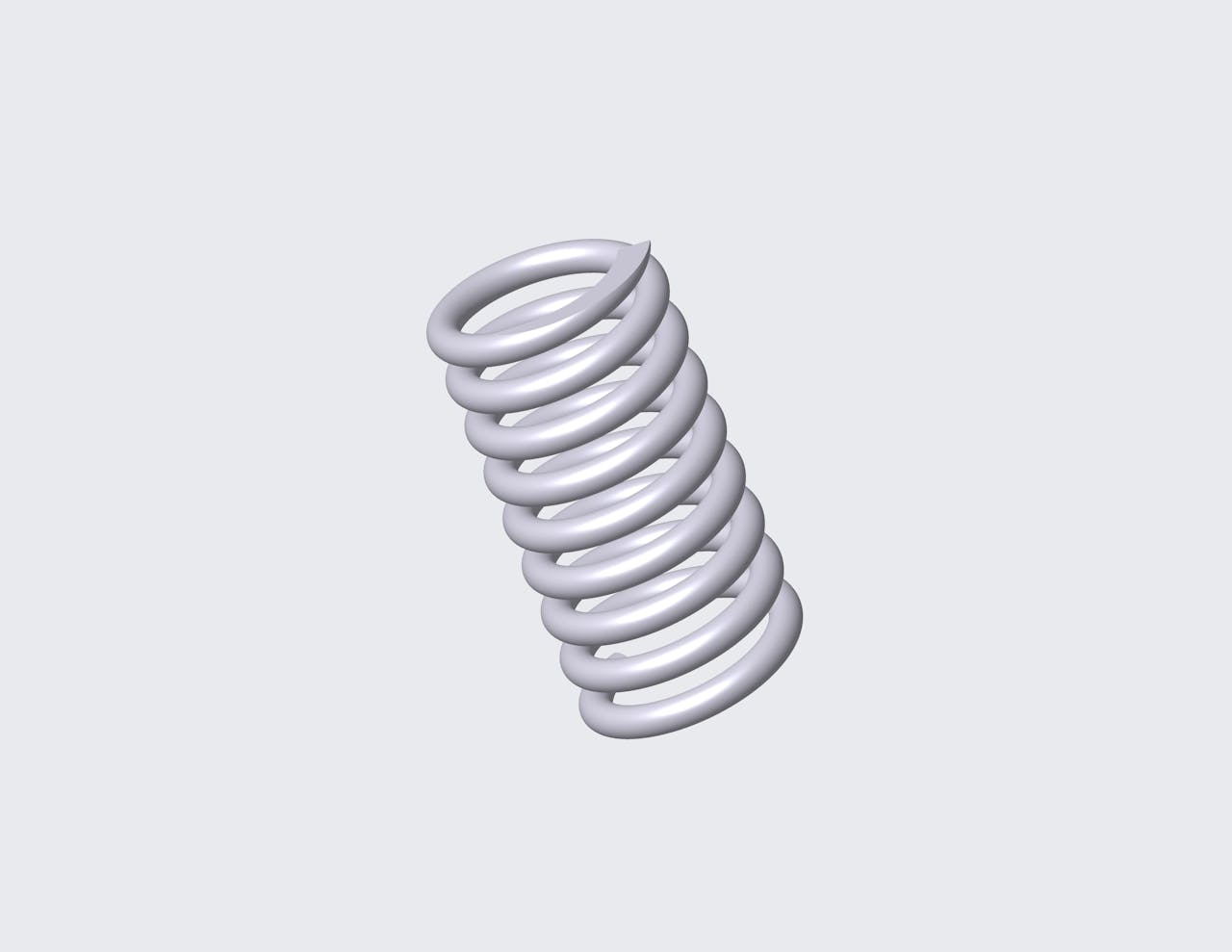

Compression spring manufactured from 316 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.35".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 69135S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.94 in |
| Inside Diameter | 0.35 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.484 in |
| Part Type | Standard |
| Rate | 57.896 lbs/in |
| SKU | 69135SCS |
| Solid Length | 0.536 in |
| Suggested Max Deflection | 0.296 in |
| Suggested Max Load | 17.137 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.067 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 69135S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 23.88 mm |
| Inside Diameter | 8.89 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 12.29 mm |
| Part Type | Standard |
| Rate | 10.14 N/mm |
| SKU | 69135SCS |
| Solid Length | 13.61 mm |
| Suggested Max Deflection | 7.52 mm |
| Suggested Max Load | 76.23 N |
| Total Coils | 8 |
| Wire Diameter | 1.7 mm |
The 69135S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 69135SCS compression spring is designed with a free length of 0.94" total of 6 coils, and a rate of 10.157 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 69135S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 69135SCS compression spring is designed with a free length of 0.94" total of 6 coils, and a rate of 10.157 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 69135S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
