Century Spring

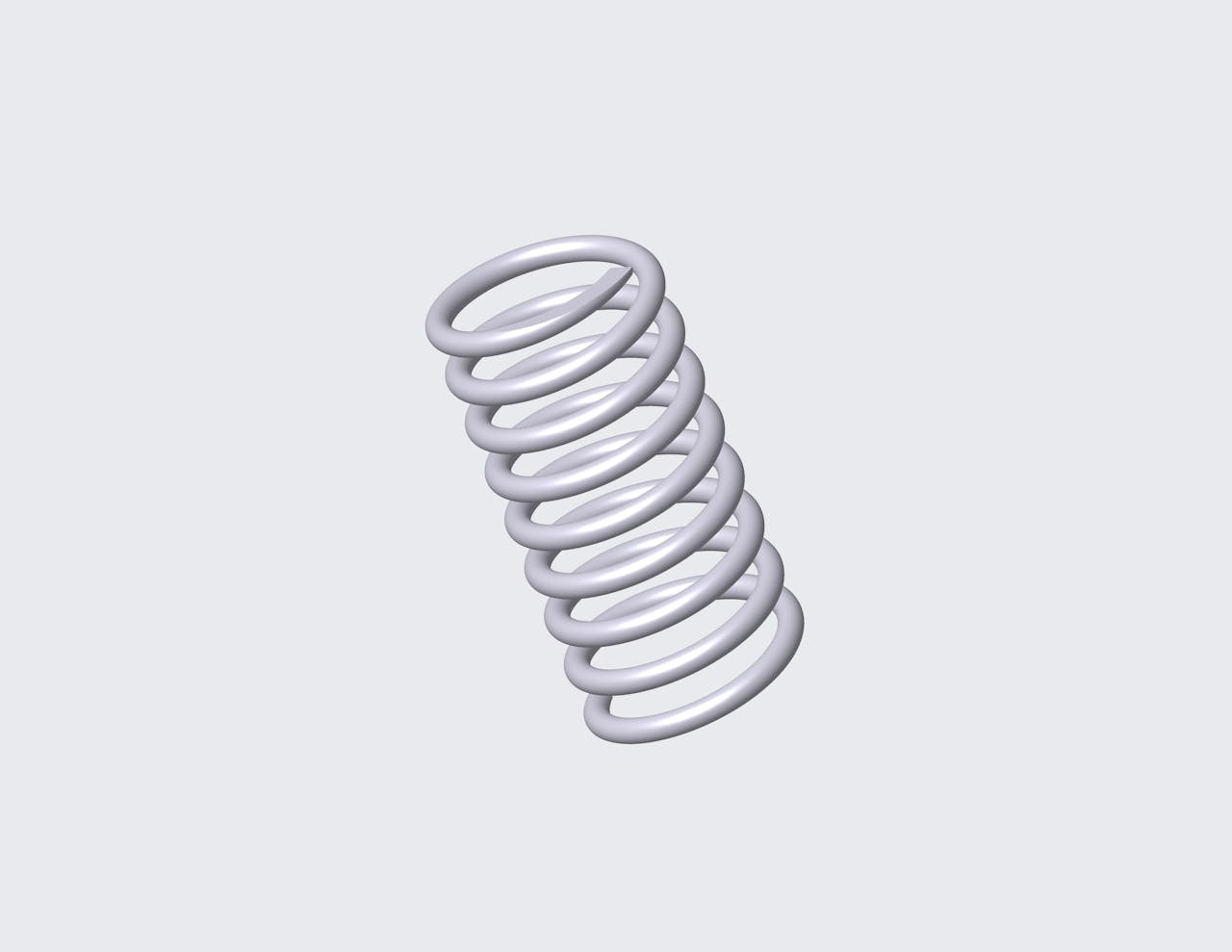

69067SCS - 0.94" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.468", and an I.D. of 0.366".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 69067S
Ends Closed & Ground
Finish Passivated
Free Length 0.94 in
Inside Diameter 0.366 in
Material 316 Stainless Steel
Outside Diameter 0.468 in
Part Type Standard
Rate 19.437 lbs/in
SKU 69067SCS
Solid Length 0.408 in
Suggested Max Deflection 0.429 in
Suggested Max Load 8.338 lbf
Total Coils 8
Wire Diameter 0.051 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 69067S
Ends Closed & Ground
Finish Passivated
Free Length 23.88 mm
Inside Diameter 9.3 mm
Material 316 Stainless Steel
Outside Diameter 11.89 mm
Part Type Standard
Rate 3.4 N/mm
SKU 69067SCS
Solid Length 10.36 mm
Suggested Max Deflection 10.9 mm
Suggested Max Load 37.09 N
Total Coils 8
Wire Diameter 1.3 mm
The compression spring 69067SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 69067S compression spring design exhibits exceptional tensile strength and resilience.

The 69067S design is manufactured with a free length of 0.94", with an outer diameter of 0.468", an inner diameter of 0.366", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 19.437 lbs/in.

The 69067SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 69067S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
