Century Spring

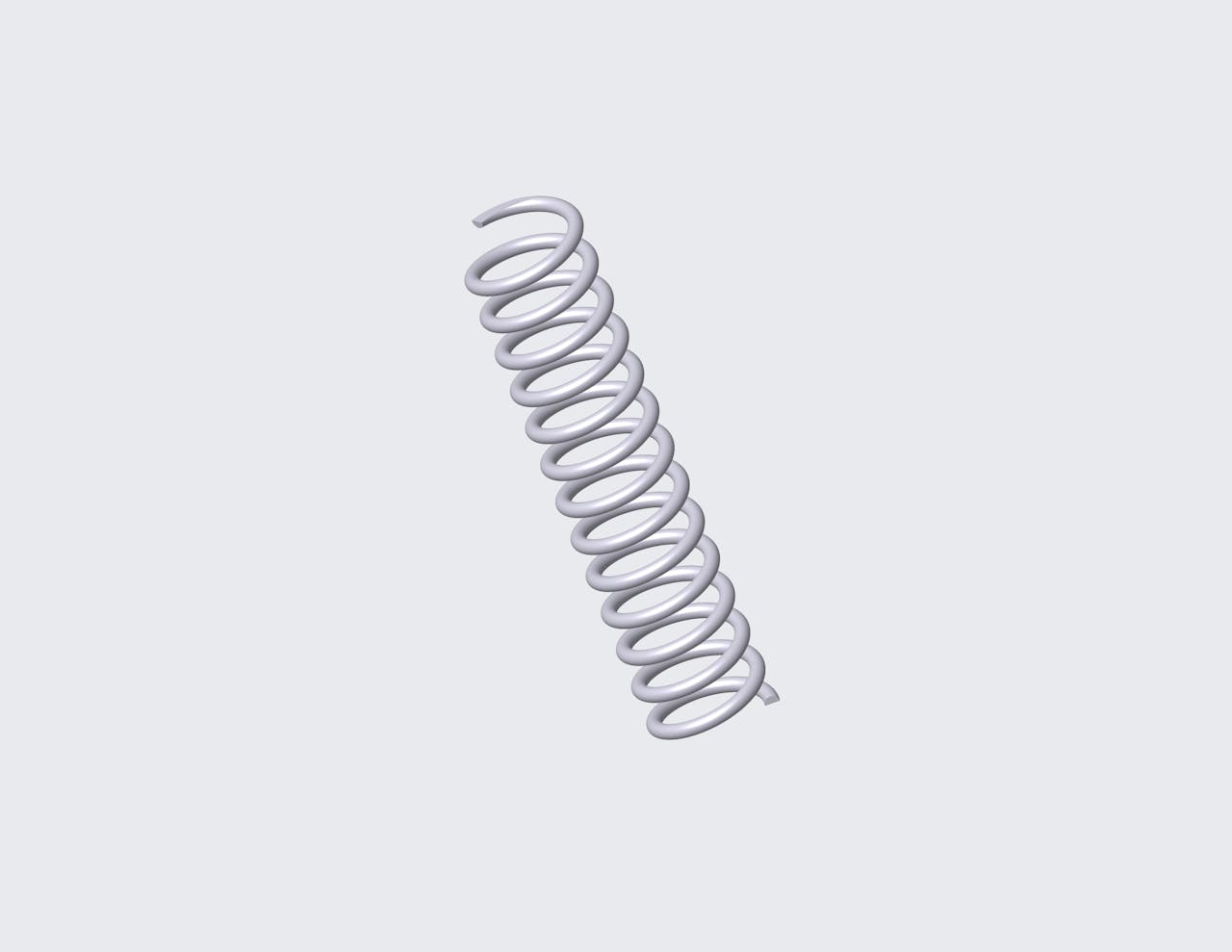

69049SCS - 2" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 13 coils and open ends. This spring features an O.D. of 0.453", and an I.D. of 0.345".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 69049S
Ends Open
Finish Passivated
Free Length 2 in
Inside Diameter 0.345 in
Material 316 Stainless Steel
Outside Diameter 0.453 in
Part Type Standard
Rate 12.871 lbs/in
SKU 69049SCS
Solid Length 0.756 in
Suggested Max Deflection 0.79 in
Suggested Max Load 10.168 lbf
Total Coils 13
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 69049S
Ends Open
Finish Passivated
Free Length 50.8 mm
Inside Diameter 8.76 mm
Material 316 Stainless Steel
Outside Diameter 11.51 mm
Part Type Standard
Rate 2.25 N/mm
SKU 69049SCS
Solid Length 19.2 mm
Suggested Max Deflection 20.07 mm
Suggested Max Load 45.23 N
Total Coils 13
Wire Diameter 1.37 mm
The 69049S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 69049SCS compression spring is designed with a free length of 1.94" total of 15.5 coils, and a rate of 3.365 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 69049S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
