69048SCS - 1.94" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

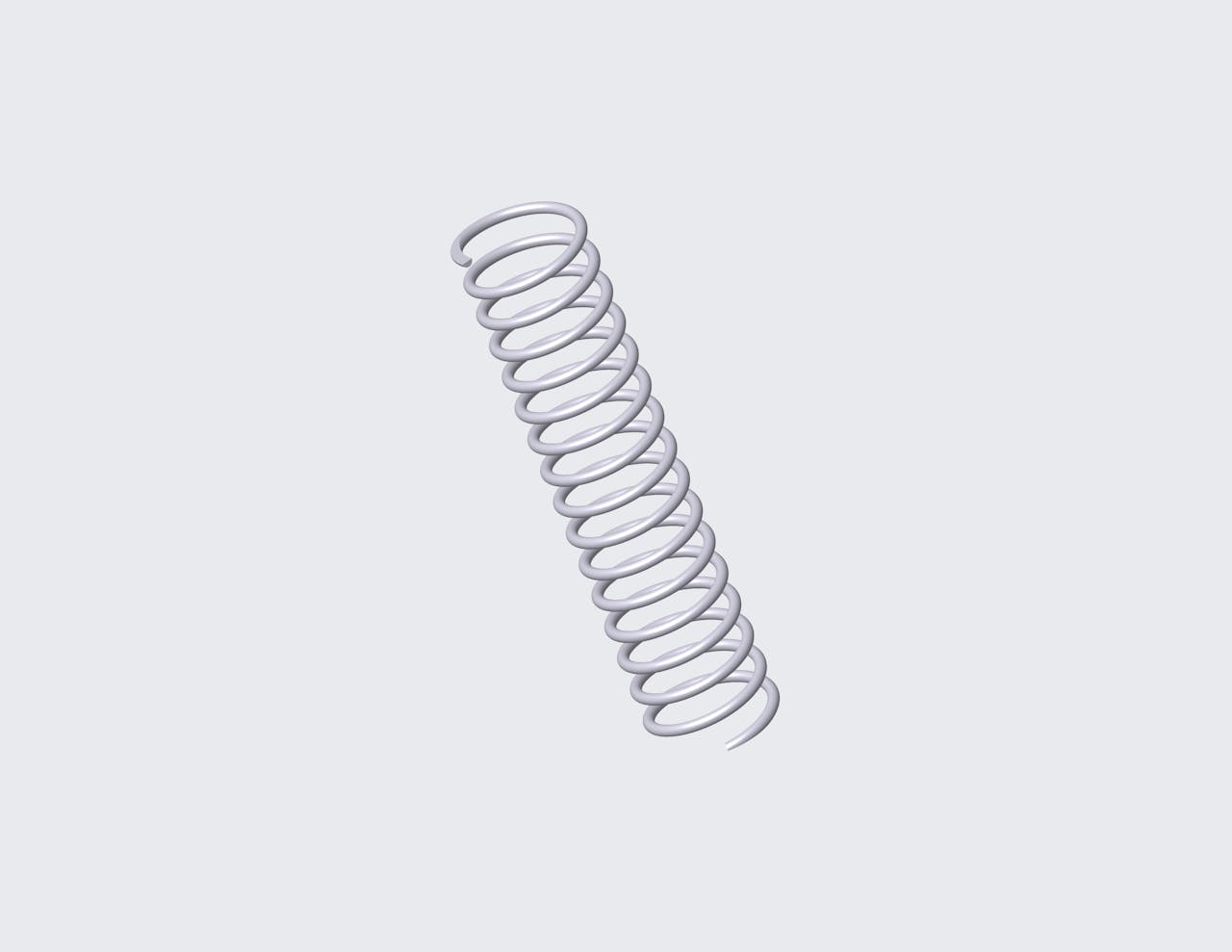

Compression spring manufactured from 316 stainless steel with 15.5 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.373".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 69048S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 1.94 in |
| Inside Diameter | 0.373 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.453 in |
| Part Type | Standard |
| Rate | 3.365 lbs/in |
| SKU | 69048SCS |
| Solid Length | 0.62 in |
| Suggested Max Deflection | 1.304 in |
| Suggested Max Load | 4.388 lbf |
| Total Coils | 15.5 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 69048S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 49.28 mm |
| Inside Diameter | 9.47 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 11.51 mm |
| Part Type | Standard |
| Rate | 0.59 N/mm |
| SKU | 69048SCS |
| Solid Length | 15.75 mm |
| Suggested Max Deflection | 33.12 mm |
| Suggested Max Load | 19.52 N |
| Total Coils | 15.5 |
| Wire Diameter | 1.02 mm |
The compression spring 69048SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 69048S compression spring design exhibits exceptional tensile strength and resilience.
The 69048S design is manufactured with a free length of 1.94", with an outer diameter of 0.453", an inner diameter of 0.373", and a total of 15.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.365 lbs/in.
The 69048SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 69048S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 69048S design is manufactured with a free length of 1.94", with an outer diameter of 0.453", an inner diameter of 0.373", and a total of 15.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.365 lbs/in.
The 69048SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 69048S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
