68842SCS - 0.38" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

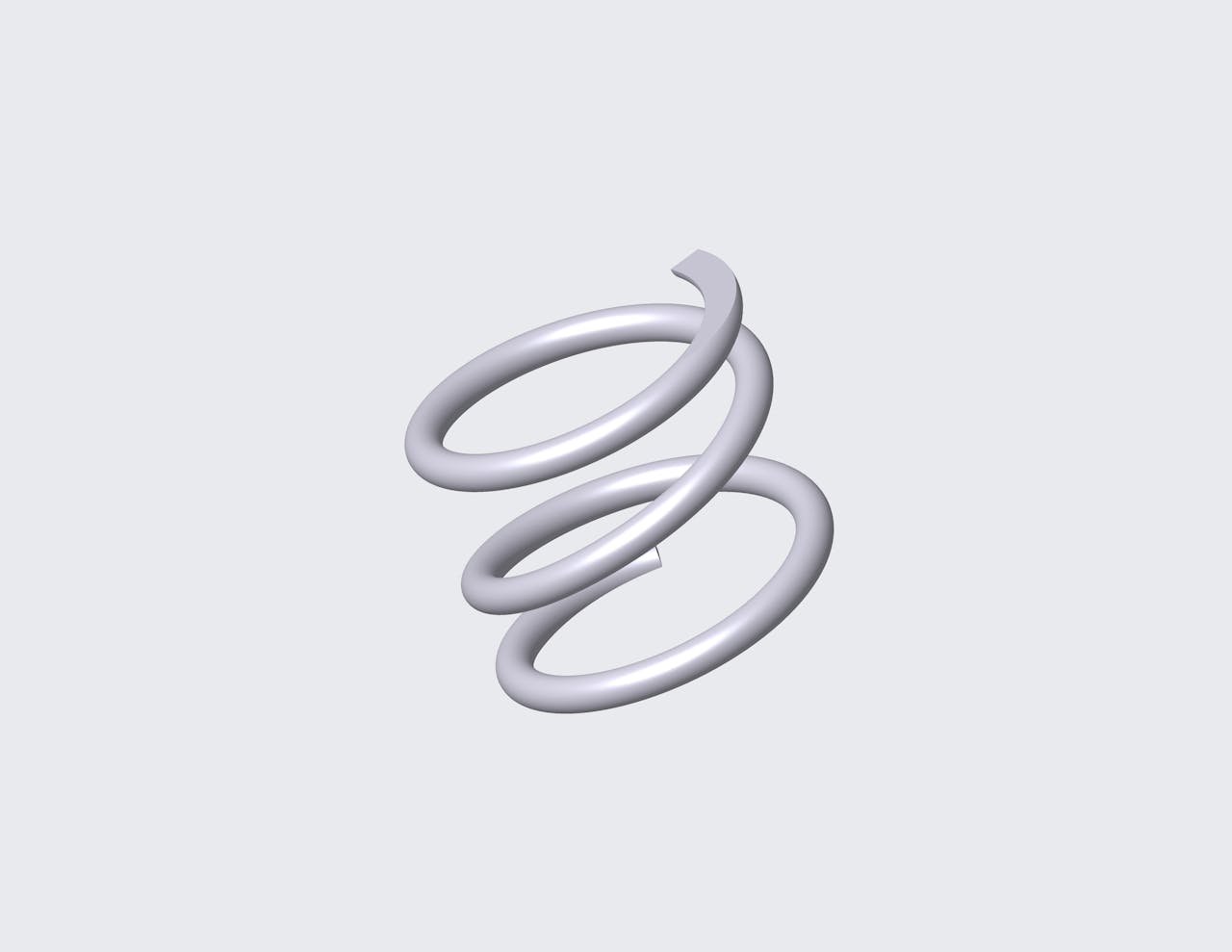

Compression spring manufactured from 316 stainless steel with 3.5 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.334".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 68842S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.38 in |
| Inside Diameter | 0.334 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 53.17 lbs/in |
| SKU | 68842SCS |
| Solid Length | 0.151 in |
| Suggested Max Deflection | 0.108 in |
| Suggested Max Load | 5.742 lbf |
| Total Coils | 3.5 |
| Wire Diameter | 0.043 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 68842S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 9.65 mm |
| Inside Diameter | 8.48 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 9.31 N/mm |
| SKU | 68842SCS |
| Solid Length | 3.84 mm |
| Suggested Max Deflection | 2.74 mm |
| Suggested Max Load | 25.54 N |
| Total Coils | 3.5 |
| Wire Diameter | 1.09 mm |
The compression spring 68842SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 68842S compression spring design exhibits exceptional tensile strength and resilience.
The 68842S design is manufactured with a free length of 0.38", with an outer diameter of 0.42", an inner diameter of 0.334", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 53.17 lbs/in.
The 68842SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 68842S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 68842S design is manufactured with a free length of 0.38", with an outer diameter of 0.42", an inner diameter of 0.334", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 53.17 lbs/in.
The 68842SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 68842S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
