Century Spring

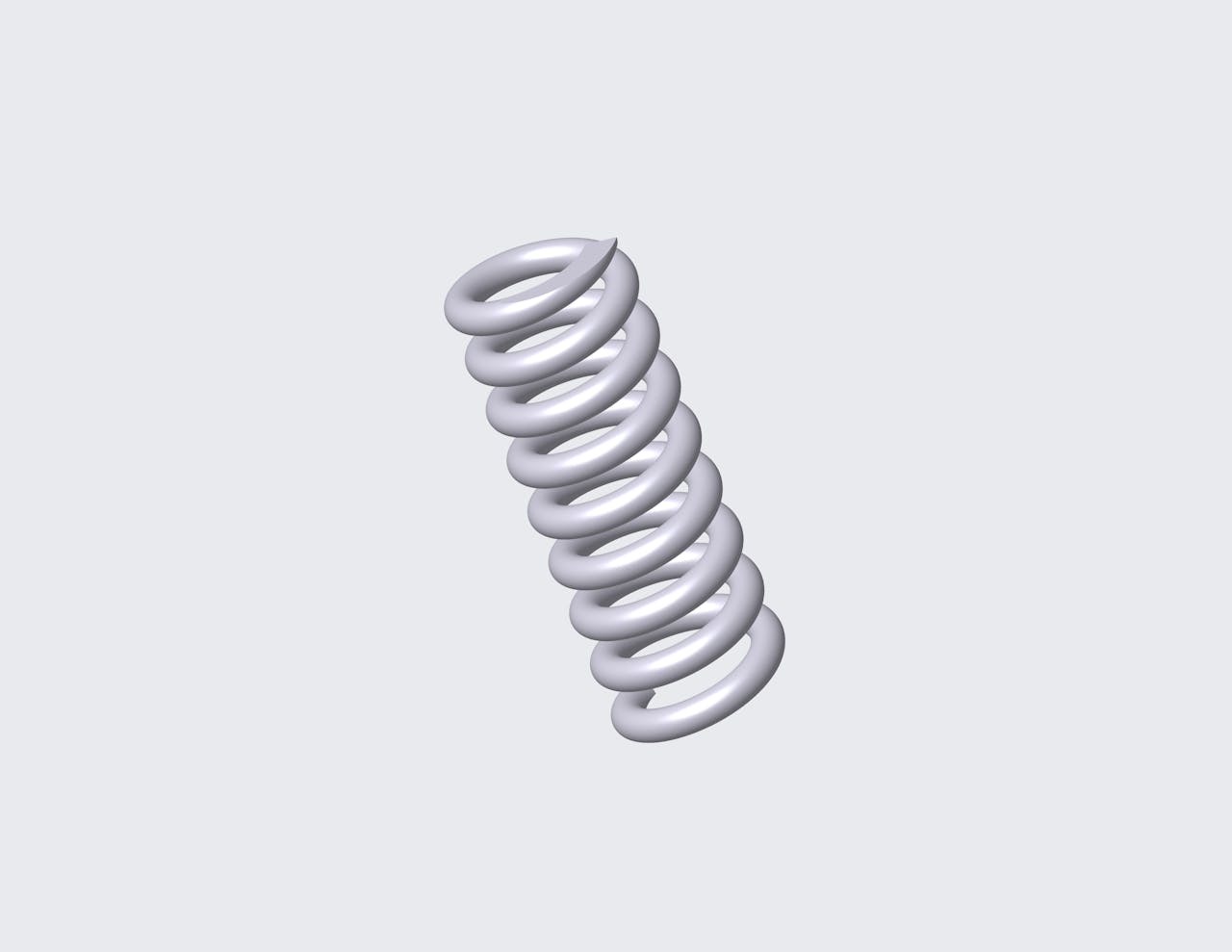

68450SCS - 0.88" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.212".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 68450S
Ends Closed & Ground
Finish Passivated
Free Length 0.88 in
Inside Diameter 0.212 in
Material 316 Stainless Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 119.779 lbs/in
SKU 68450SCS
Solid Length 0.464 in
Suggested Max Deflection 0.136 in
Suggested Max Load 16.29 lbf
Total Coils 8
Wire Diameter 0.058 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 68450S
Ends Closed & Ground
Finish Passivated
Free Length 22.35 mm
Inside Diameter 5.38 mm
Material 316 Stainless Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 20.97 N/mm
SKU 68450SCS
Solid Length 11.79 mm
Suggested Max Deflection 3.45 mm
Suggested Max Load 72.46 N
Total Coils 8
Wire Diameter 1.47 mm
The 68450S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 68450SCS compression spring is designed with a free length of 0.88" total of 11.3 coils, and a rate of 5.434 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 68450S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
