Century Spring

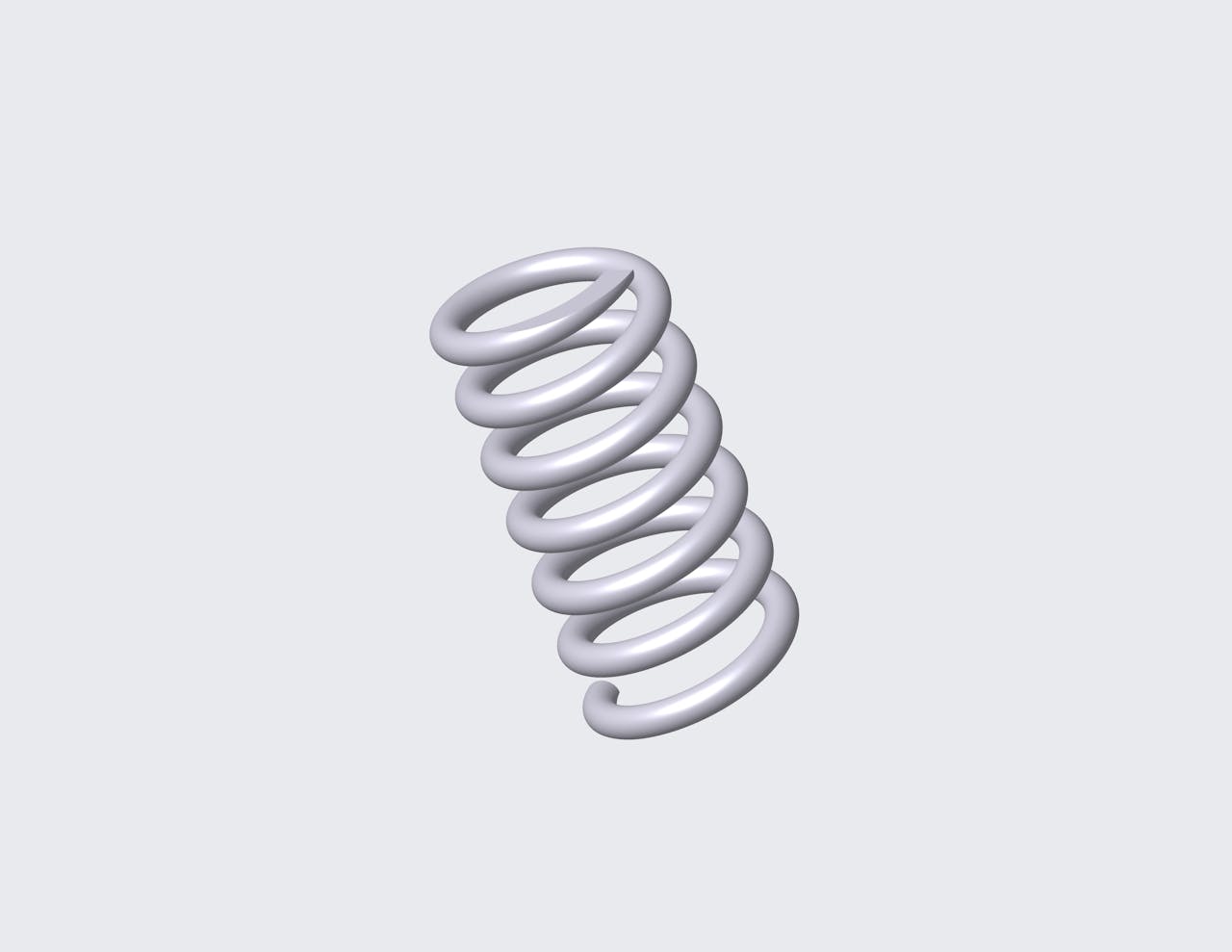

68245SCS - 0.56" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.281", and an I.D. of 0.201".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 68245S
Ends Closed & Ground
Finish Passivated
Free Length 0.56 in
Inside Diameter 0.201 in
Material 316 Stainless Steel
Outside Diameter 0.281 in
Part Type Standard
Rate 57.153 lbs/in
SKU 68245SCS
Solid Length 0.24 in
Suggested Max Deflection 0.12 in
Suggested Max Load 6.858 lbf
Total Coils 6
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 68245S
Ends Closed & Ground
Finish Passivated
Free Length 14.22 mm
Inside Diameter 5.11 mm
Material 316 Stainless Steel
Outside Diameter 7.14 mm
Part Type Standard
Rate 10.01 N/mm
SKU 68245SCS
Solid Length 6.1 mm
Suggested Max Deflection 3.05 mm
Suggested Max Load 30.5 N
Total Coils 6
Wire Diameter 1.02 mm
The compression spring 68245SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 68245S compression spring design exhibits exceptional tensile strength and resilience.

The 68245S design is manufactured with a free length of 0.56", with an outer diameter of 0.281", an inner diameter of 0.201", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 57.153 lbs/in.

The 68245SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 68245S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
