Century Spring

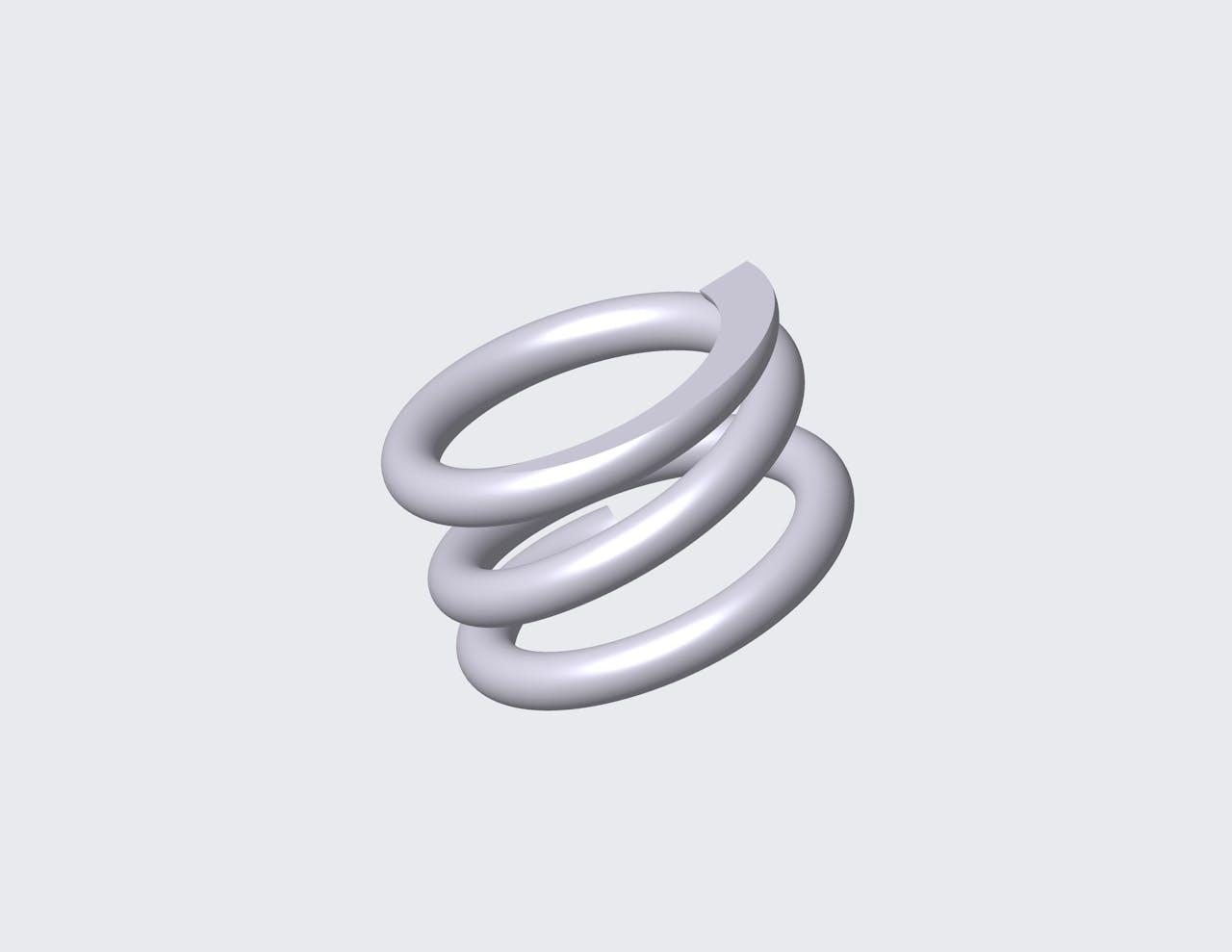

68113SCS - 0.16" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 3 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.182".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 68113S
Ends Closed & Ground
Finish Passivated
Free Length 0.16 in
Inside Diameter 0.182 in
Material 316 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 165.754 lbs/in
SKU 68113SCS
Solid Length 0.102 in
Suggested Max Deflection 0.029 in
Suggested Max Load 4.807 lbf
Total Coils 3
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 68113S
Ends Closed & Ground
Finish Passivated
Free Length 4.06 mm
Inside Diameter 4.62 mm
Material 316 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 29.02 N/mm
SKU 68113SCS
Solid Length 2.59 mm
Suggested Max Deflection 0.74 mm
Suggested Max Load 21.38 N
Total Coils 3
Wire Diameter 0.86 mm
The 68113SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.034" diameter 316 stainless steel, the 68113S spring design exhibits reliable strength across its 3 active coils, withstanding repeated compression cycles with a maximum load of 4.807 lbf without succumbing to fatigue.

We manufacture the 68113S design to provide a compression spring that is 0.16" long at rest and provides a consistent rate of 165.754 lbs/in along its recommended maximum of 0.029" deflection. For best results, your application should fully accommodate the inner (0.182") and outer (0.25") diameters of this spring and be designed for its closed & ground end configuration.
