68003SCS

Inventory:
Estimated Lead Time

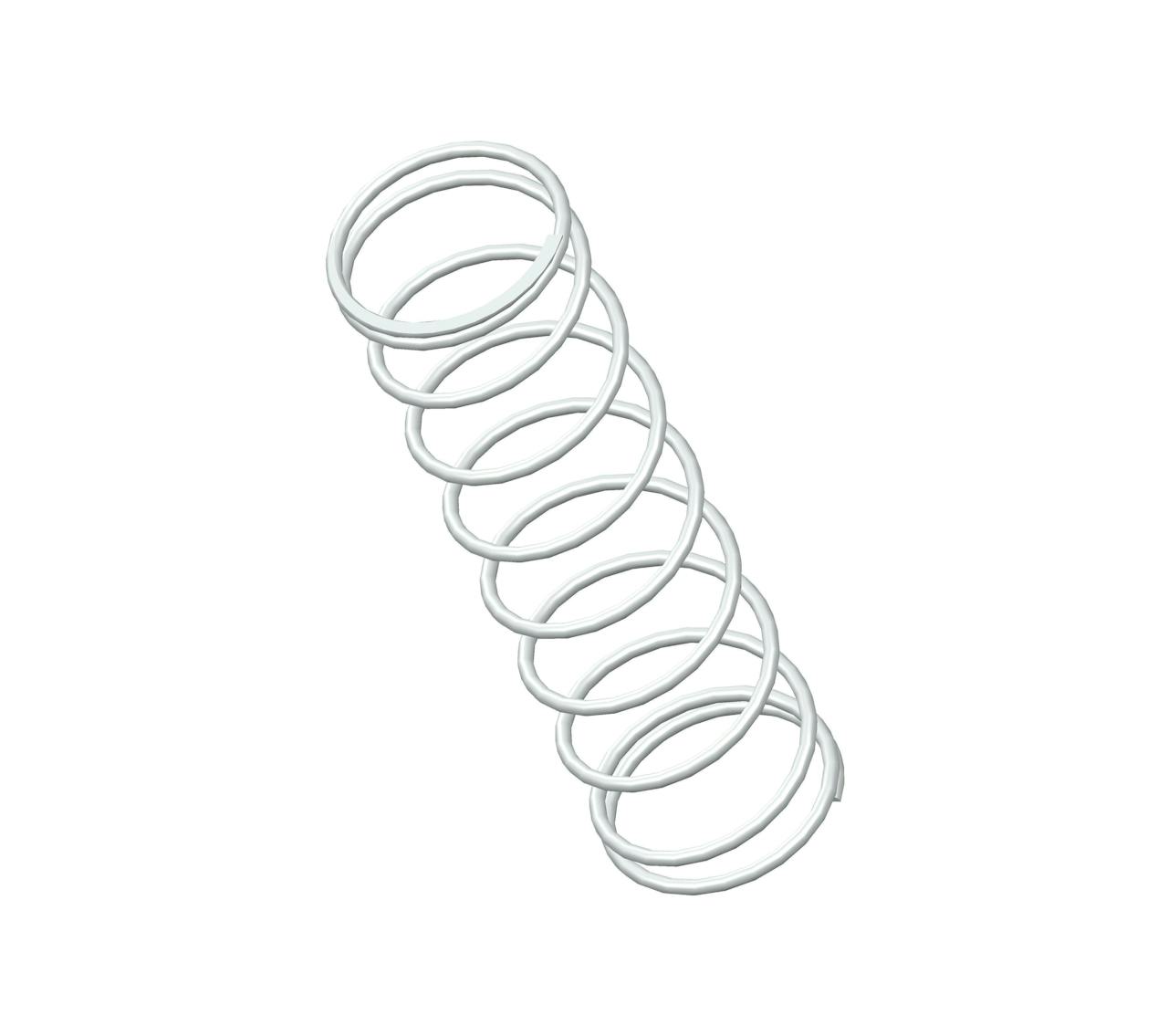

Compression spring manufactured from 316 Stainless Steel with 28.5 coils and Closed & Ground ends. This spring features an O.D. of 0.156 Inch, and an I.D. of 0.084 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Ends Closed & Ground
Finish Passivated
Free Length 1.25 in
Inside Diameter 0.084 in
Material 316 Stainless Steel
Outside Diameter 0.156 in
Rate 45.849 lbs/in
SKU 68003SCS
Solid Length 1.026 in
Suggested Max Deflection 0.181 in
Suggested Max Load 8.299 lbf
Total Coils 28.5
Wire Diameter 0.036 in
Specs (in metric)
Label Value
Brand Century Spring
Ends Closed & Ground
Finish Passivated
Free Length 31.75 mm
Inside Diameter 2.13 mm
Material 316 Stainless Steel
Outside Diameter 3.96 mm
Rate 8.03 N/mm
SKU 68003SCS
Solid Length 26.06 mm
Suggested Max Deflection 4.6 mm
Suggested Max Load 36.91 N
Total Coils 28.5
Wire Diameter 0.91 mm
