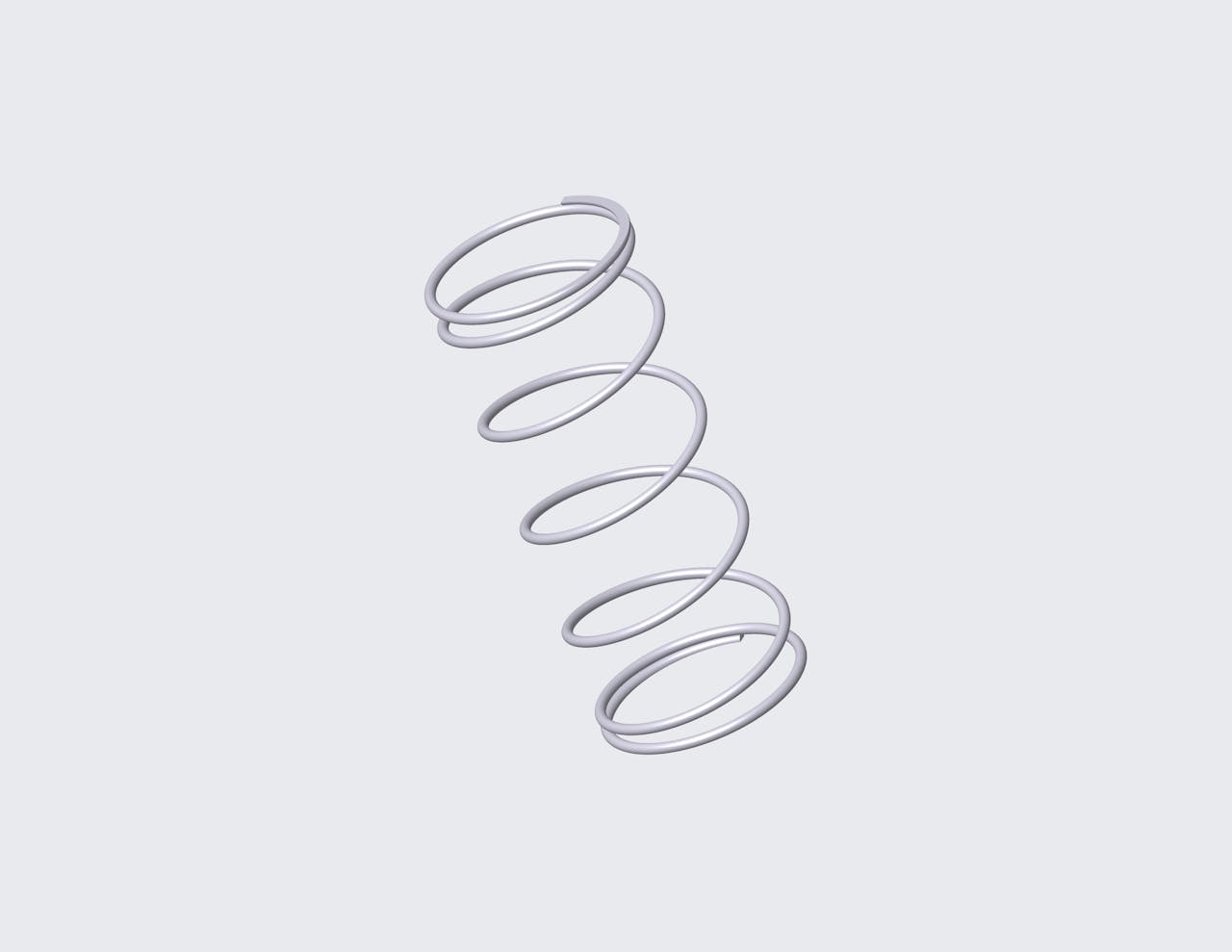

67893SCS - 1.19" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 7 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.448".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 67893S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 1.19 in |
| Inside Diameter | 0.448 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 1.073 lbs/in |
| SKU | 67893SCS |
| Solid Length | 0.208 in |
| Suggested Max Deflection | 0.982 in |
| Suggested Max Load | 1.054 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 67893S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 30.23 mm |
| Inside Diameter | 11.38 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 0.19 N/mm |
| SKU | 67893SCS |
| Solid Length | 5.28 mm |
| Suggested Max Deflection | 24.94 mm |
| Suggested Max Load | 4.69 N |
| Total Coils | 7 |
| Wire Diameter | 0.66 mm |
The compression spring 67893SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 67893S compression spring design exhibits exceptional tensile strength and resilience.
The 67893S design is manufactured with a free length of 1.19", with an outer diameter of 0.5", an inner diameter of 0.448", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.073 lbs/in.
The 67893SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 67893S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 67893S design is manufactured with a free length of 1.19", with an outer diameter of 0.5", an inner diameter of 0.448", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.073 lbs/in.
The 67893SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 67893S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
