Century Spring

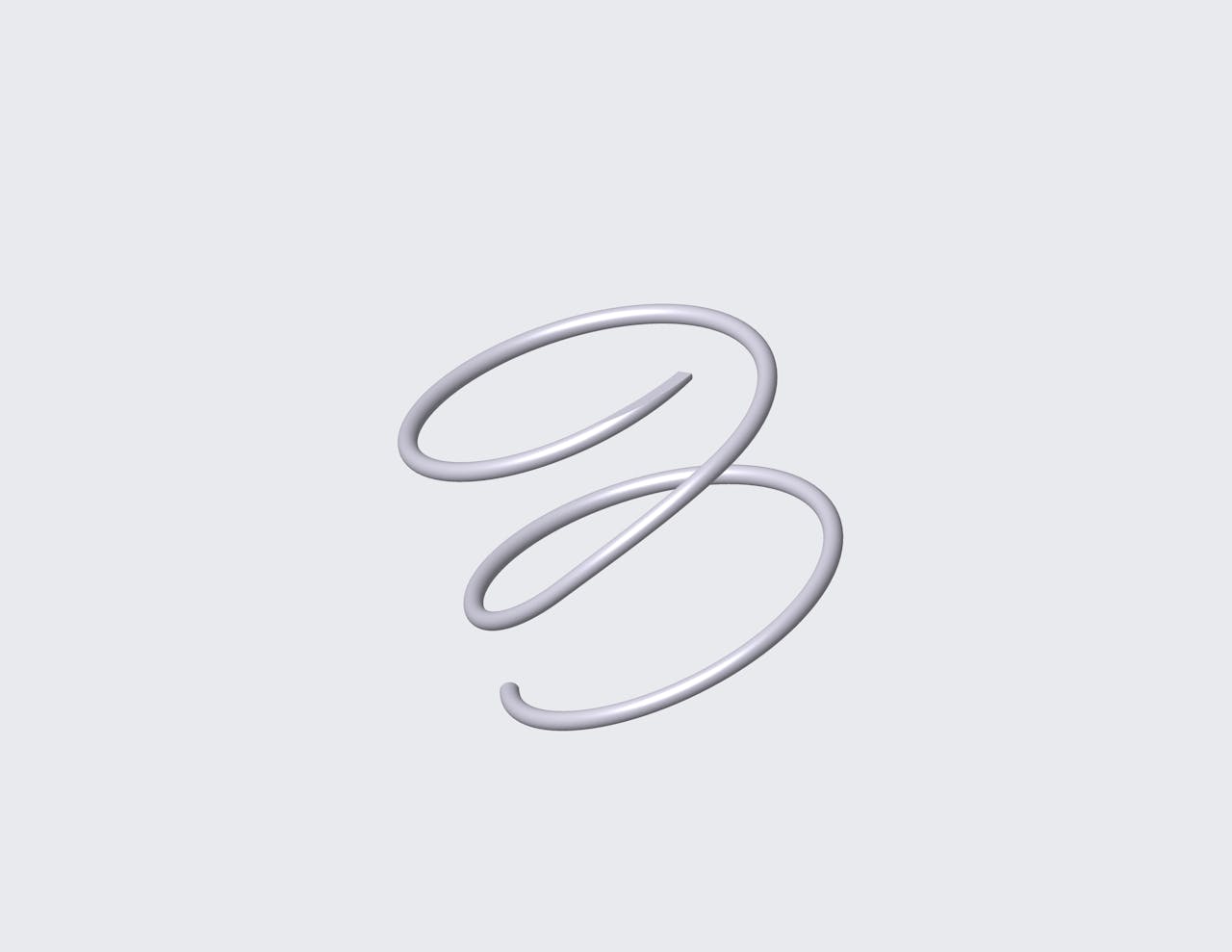

67875SCS - 0.44" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 3 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.448".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67875S
Ends Closed & Ground
Finish Passivated
Free Length 0.44 in
Inside Diameter 0.448 in
Material 316 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 5.364 lbs/in
SKU 67875SCS
Solid Length 0.078 in
Suggested Max Deflection 0.207 in
Suggested Max Load 1.11 lbf
Total Coils 3
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67875S
Ends Closed & Ground
Finish Passivated
Free Length 11.18 mm
Inside Diameter 11.38 mm
Material 316 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.94 N/mm
SKU 67875SCS
Solid Length 1.98 mm
Suggested Max Deflection 5.26 mm
Suggested Max Load 4.94 N
Total Coils 3
Wire Diameter 0.66 mm
The compression spring 67875SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 67875S compression spring design exhibits exceptional tensile strength and resilience.

The 67875S design is manufactured with a free length of 0.44", with an outer diameter of 0.5", an inner diameter of 0.448", and a total of 3 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.364 lbs/in.

The 67875SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 67875S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
