Century Spring

67811SCS - 2" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

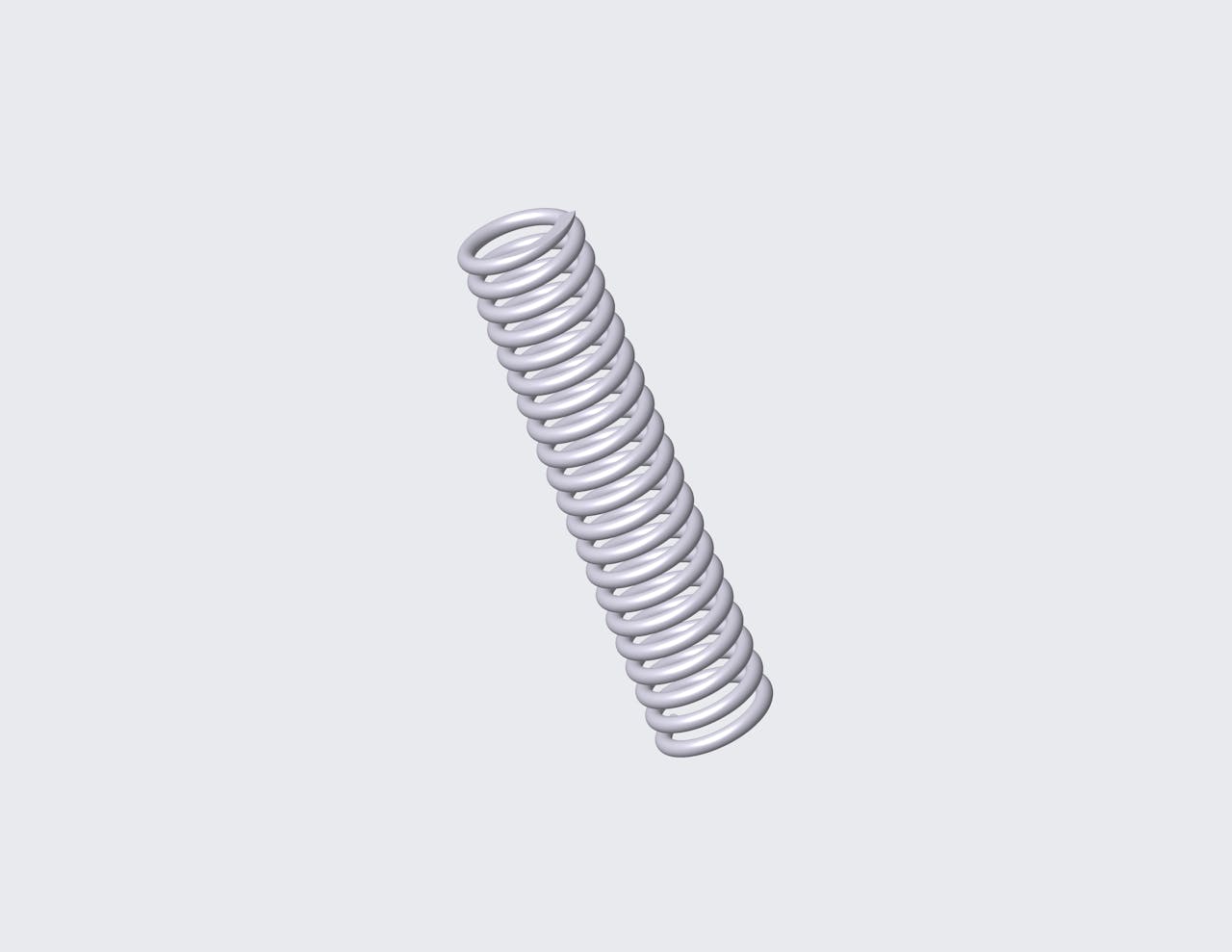

Compression spring manufactured from 316 stainless steel with 20 coils and closed & ground ends. This spring features an O.D. of 0.437", and an I.D. of 0.321".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67811S
Ends Closed & Ground
Finish Passivated
Free Length 2 in
Inside Diameter 0.321 in
Material 316 Stainless Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 14.436 lbs/in
SKU 67811SCS
Solid Length 1.16 in
Suggested Max Deflection 0.84 in
Suggested Max Load 12.126 lbf
Total Coils 20
Wire Diameter 0.058 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67811S
Ends Closed & Ground
Finish Passivated
Free Length 50.8 mm
Inside Diameter 8.15 mm
Material 316 Stainless Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 2.53 N/mm
SKU 67811SCS
Solid Length 29.46 mm
Suggested Max Deflection 21.34 mm
Suggested Max Load 53.94 N
Total Coils 20
Wire Diameter 1.47 mm
The 67811S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 67811SCS compression spring is designed with a free length of 1.81" total of 10.3 coils, and a rate of 0.709 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 67811S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
