Century Spring

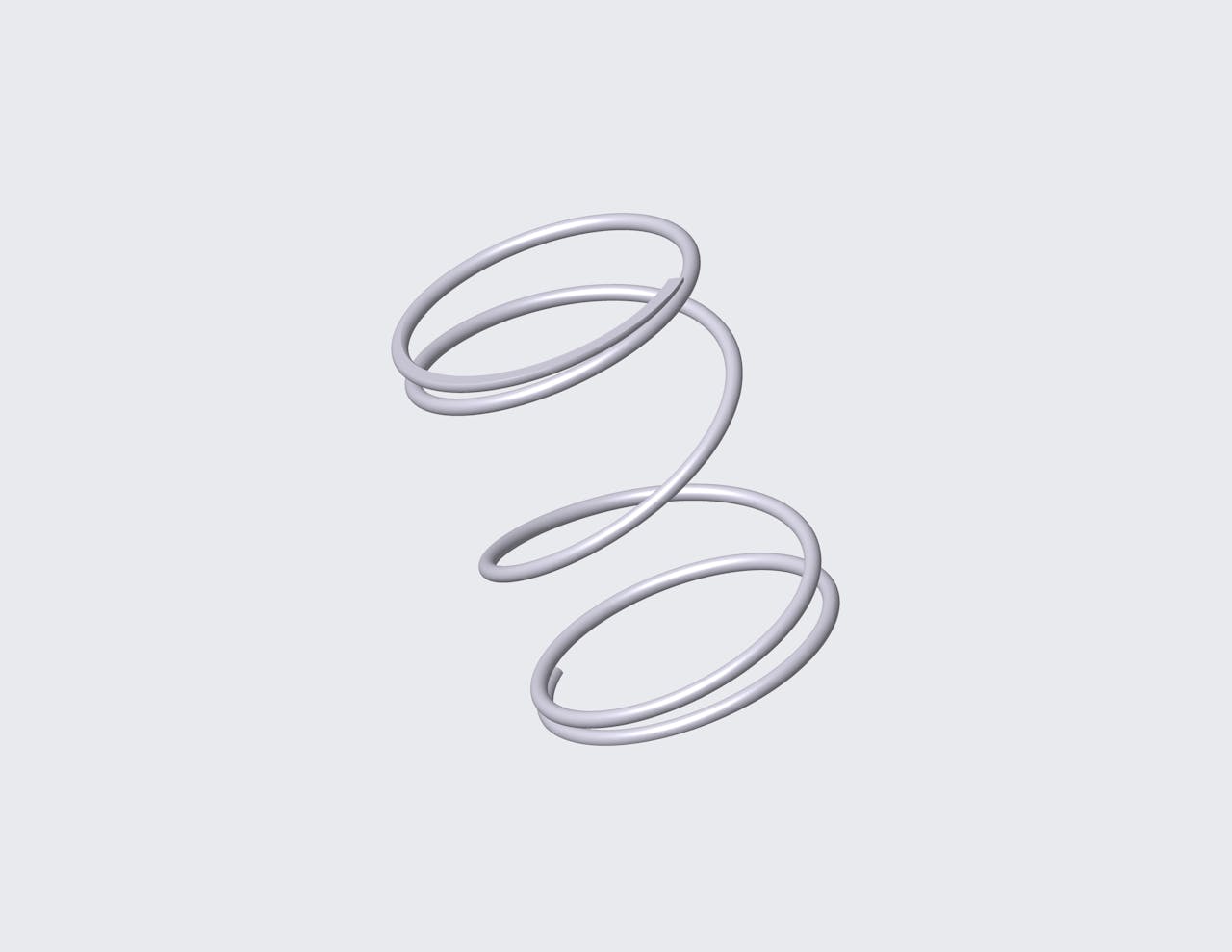

67616SCS - 0.5" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 4.5 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.335".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67616S
Ends Closed
Finish Passivated
Free Length 0.5 in
Inside Diameter 0.335 in
Material 316 Stainless Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 1.788 lbs/in
SKU 67616SCS
Solid Length 0.11 in
Suggested Max Deflection 0.377 in
Suggested Max Load 0.674 lbf
Total Coils 4.5
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67616S
Ends Closed
Finish Passivated
Free Length 12.7 mm
Inside Diameter 8.51 mm
Material 316 Stainless Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 0.31 N/mm
SKU 67616SCS
Solid Length 2.79 mm
Suggested Max Deflection 9.58 mm
Suggested Max Load 3 N
Total Coils 4.5
Wire Diameter 0.51 mm
The compression spring 67616SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 67616S compression spring design exhibits exceptional tensile strength and resilience.

The 67616S design is manufactured with a free length of 0.5", with an outer diameter of 0.375", an inner diameter of 0.335", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.788 lbs/in.

The 67616SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 67616S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
