Century Spring

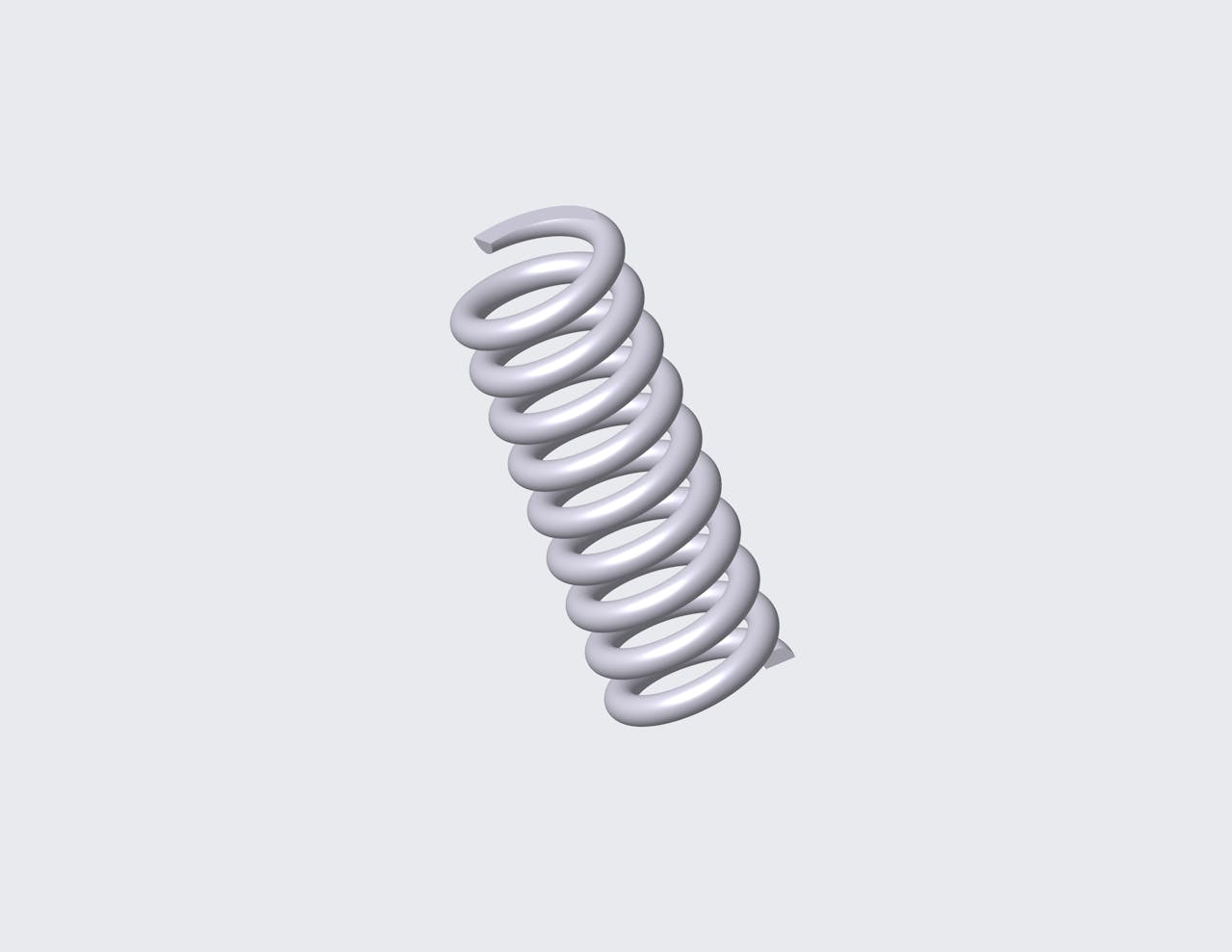

67387SCS - 0.84" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8.8 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.21".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67387S
Ends Closed & Ground
Finish Passivated
Free Length 0.84 in
Inside Diameter 0.21 in
Material 316 Stainless Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 70.464 lbs/in
SKU 67387SCS
Solid Length 0.45 in
Suggested Max Deflection 0.171 in
Suggested Max Load 12.049 lbf
Total Coils 8.8
Wire Diameter 0.051 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67387S
Ends Closed & Ground
Finish Passivated
Free Length 21.34 mm
Inside Diameter 5.33 mm
Material 316 Stainless Steel
Outside Diameter 7.92 mm
Part Type Standard
Rate 12.34 N/mm
SKU 67387SCS
Solid Length 11.43 mm
Suggested Max Deflection 4.34 mm
Suggested Max Load 53.59 N
Total Coils 8.8
Wire Diameter 1.3 mm
The 67387S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 67387SCS compression spring is designed with a free length of 0.78" total of 8 coils, and a rate of 7.525 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 67387S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
