67339SCS - 1.81" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

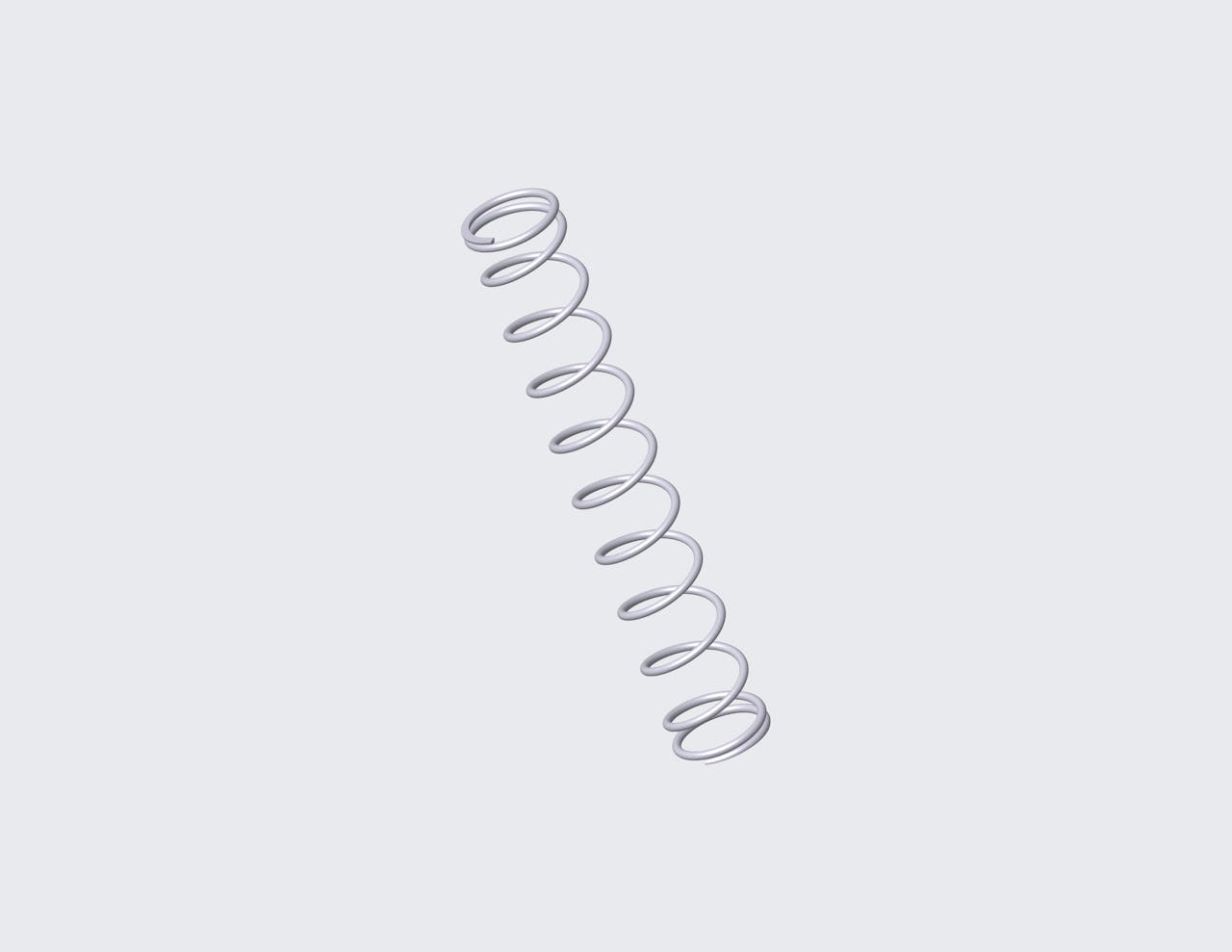

Compression spring manufactured from 316 stainless steel with 12 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.244".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 67339S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 1.81 in |
| Inside Diameter | 0.244 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 2.902 lbs/in |
| SKU | 67339SCS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 0.636 in |
| Suggested Max Load | 1.846 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 67339S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 45.97 mm |
| Inside Diameter | 6.2 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 0.51 N/mm |
| SKU | 67339SCS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 16.15 mm |
| Suggested Max Load | 8.21 N |
| Total Coils | 12 |
| Wire Diameter | 0.66 mm |
The compression spring 67339SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 67339S compression spring design exhibits exceptional tensile strength and resilience.
The 67339S design is manufactured with a free length of 1.81", with an outer diameter of 0.296", an inner diameter of 0.244", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.902 lbs/in.
The 67339SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 67339S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 67339S design is manufactured with a free length of 1.81", with an outer diameter of 0.296", an inner diameter of 0.244", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.902 lbs/in.
The 67339SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 67339S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
