Century Spring

67060SCS - 0.94" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

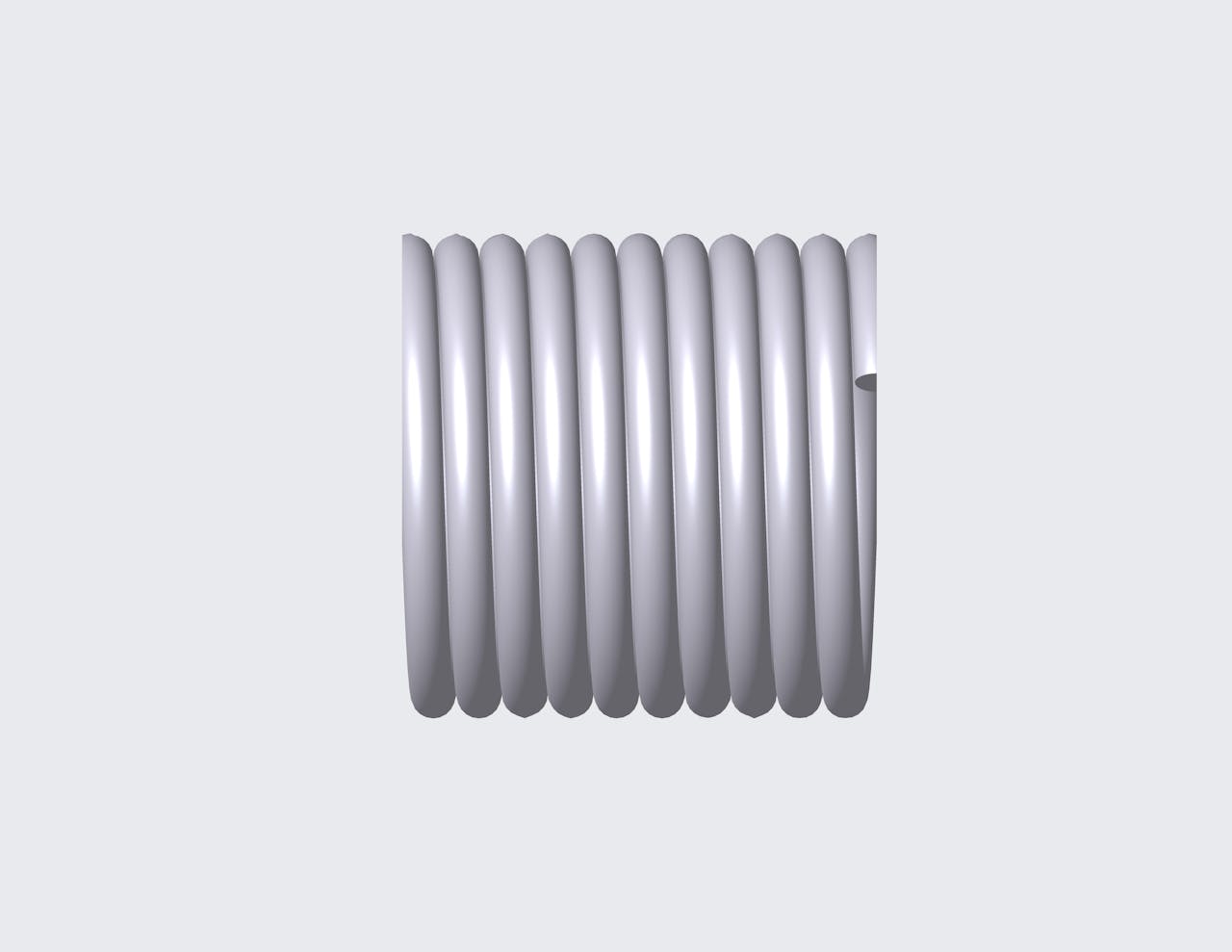

Compression spring manufactured from 316 stainless steel with 13 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.19".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67060S
Ends Closed
Finish Passivated
Free Length 0.94 in
Inside Diameter 0.19 in
Material 316 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 8.644 lbs/in
SKU 67060SCS
Solid Length 0.42 in
Suggested Max Deflection 0.381 in
Suggested Max Load 3.293 lbf
Total Coils 13
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67060S
Ends Closed
Finish Passivated
Free Length 23.88 mm
Inside Diameter 4.83 mm
Material 316 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 1.51 N/mm
SKU 67060SCS
Solid Length 10.67 mm
Suggested Max Deflection 9.68 mm
Suggested Max Load 14.65 N
Total Coils 13
Wire Diameter 0.76 mm
The 67060S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 67060SCS compression spring is designed with a free length of 0.94" total of 13 coils, and a rate of 6.384 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 67060S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
