67058SCS

Inventory:
Estimated Lead Time

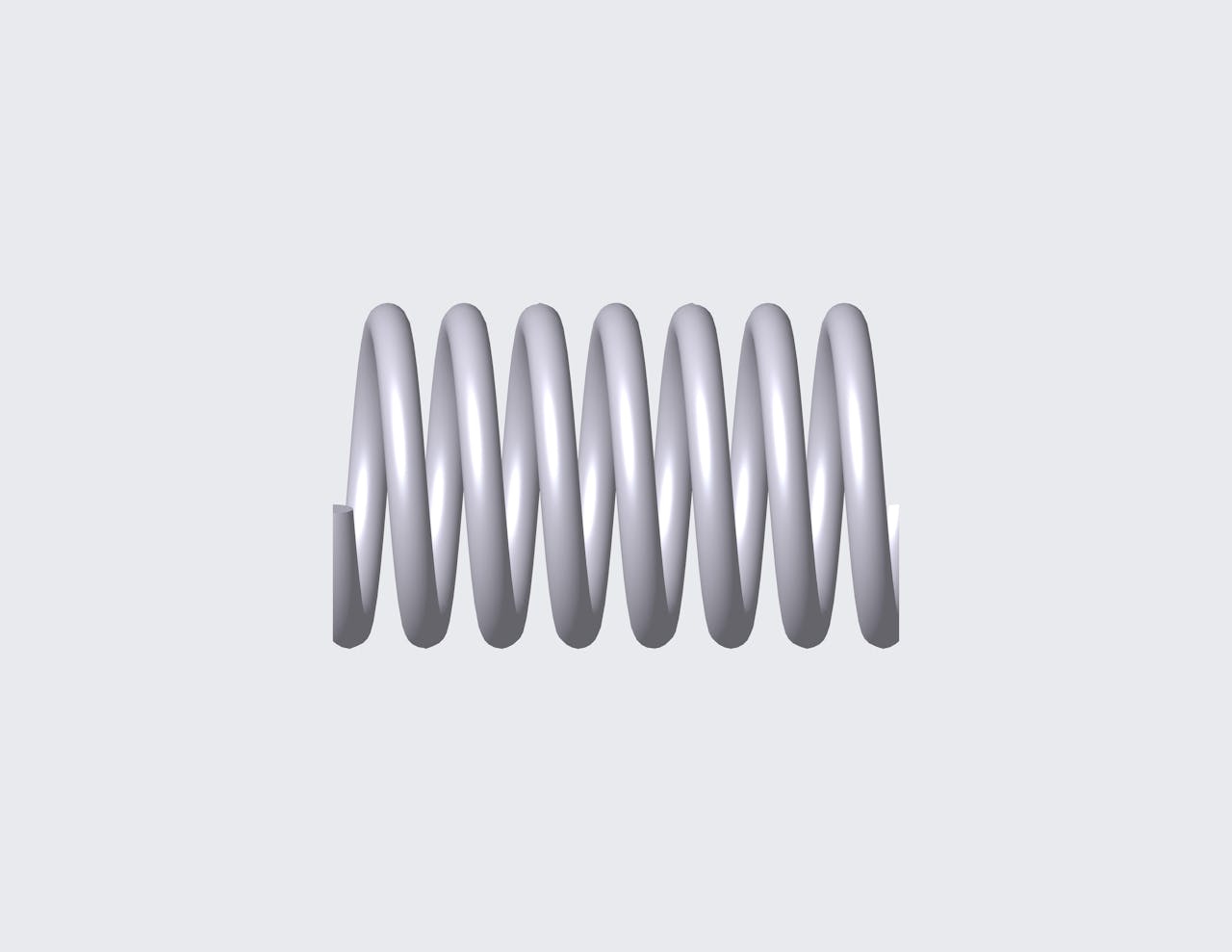

Compression spring manufactured from 316 Stainless Steel with 13 coils and Closed & Ground ends. This spring features an O.D. of 0.25 Inch, and an I.D. of 0.14 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Ends Closed & Ground
Finish Passivated
Free Length 0.94 in
Inside Diameter 0.14 in
Material 316 Stainless Steel
Outside Diameter 0.25 in
Rate 140.238 lbs/in
SKU 67058SCS
Solid Length 0.715 in
Suggested Max Deflection 0.125 in
Suggested Max Load 17.53 lbf
Total Coils 13
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Ends Closed & Ground
Finish Passivated
Free Length 23.88 mm
Inside Diameter 3.56 mm
Material 316 Stainless Steel
Outside Diameter 6.35 mm
Rate 24.56 N/mm
SKU 67058SCS
Solid Length 18.16 mm
Suggested Max Deflection 3.18 mm
Suggested Max Load 77.97 N
Total Coils 13
Wire Diameter 1.4 mm
