Century Spring

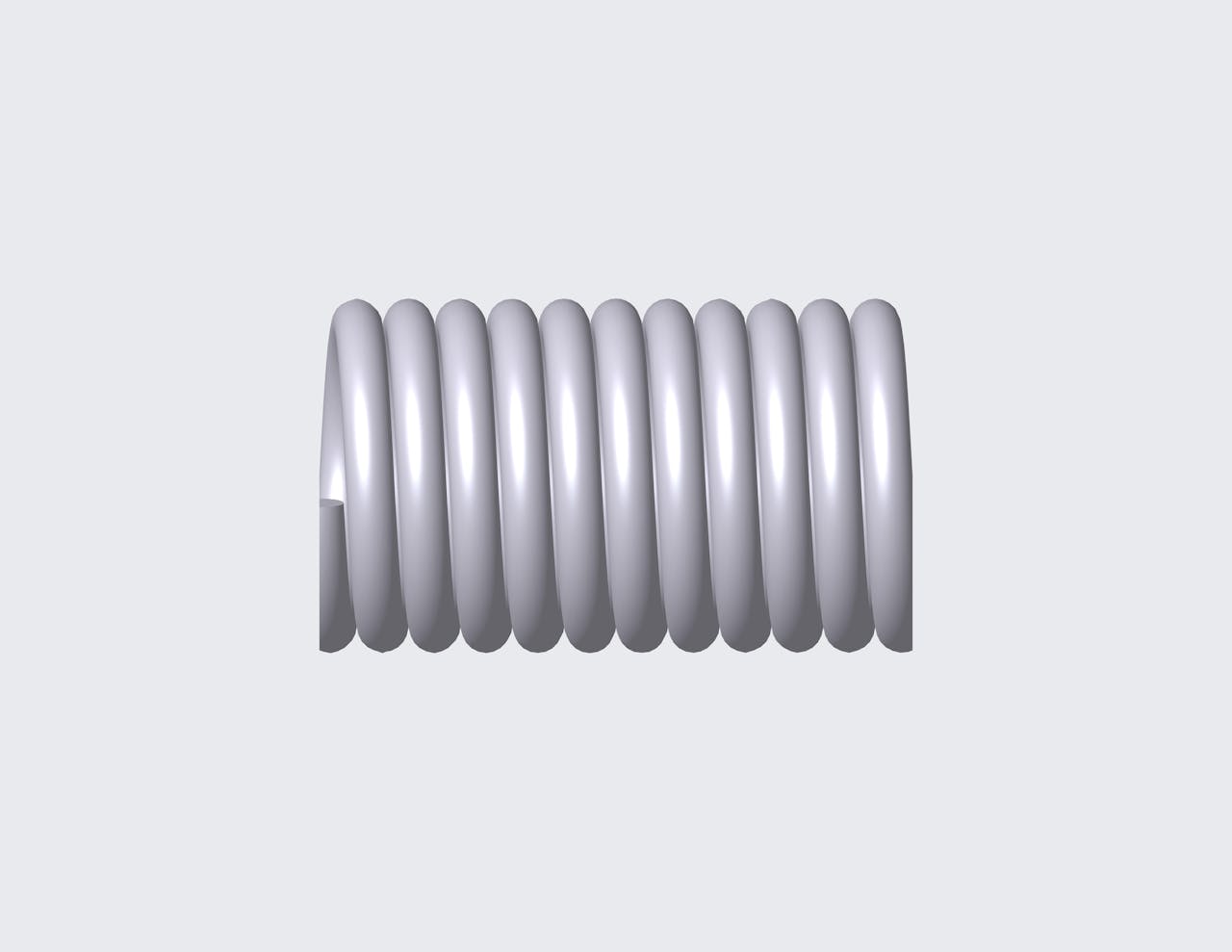

66707SCS - 1.75" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 19 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.156".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66707S
Ends Closed
Finish Passivated
Free Length 1.75 in
Inside Diameter 0.156 in
Material 316 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 0.947 lbs/in
SKU 66707SCS
Solid Length 0.32 in
Suggested Max Deflection 0.717 in
Suggested Max Load 0.679 lbf
Total Coils 19
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 66707S
Ends Closed
Finish Passivated
Free Length 44.45 mm
Inside Diameter 3.96 mm
Material 316 Stainless Steel
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.17 N/mm
SKU 66707SCS
Solid Length 8.13 mm
Suggested Max Deflection 18.21 mm
Suggested Max Load 3.02 N
Total Coils 19
Wire Diameter 0.41 mm
The compression spring 66707SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66707S compression spring design exhibits exceptional tensile strength and resilience.

The 66707S design is manufactured with a free length of 1.75", with an outer diameter of 0.188", an inner diameter of 0.156", and a total of 19 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.947 lbs/in.

The 66707SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 66707S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
