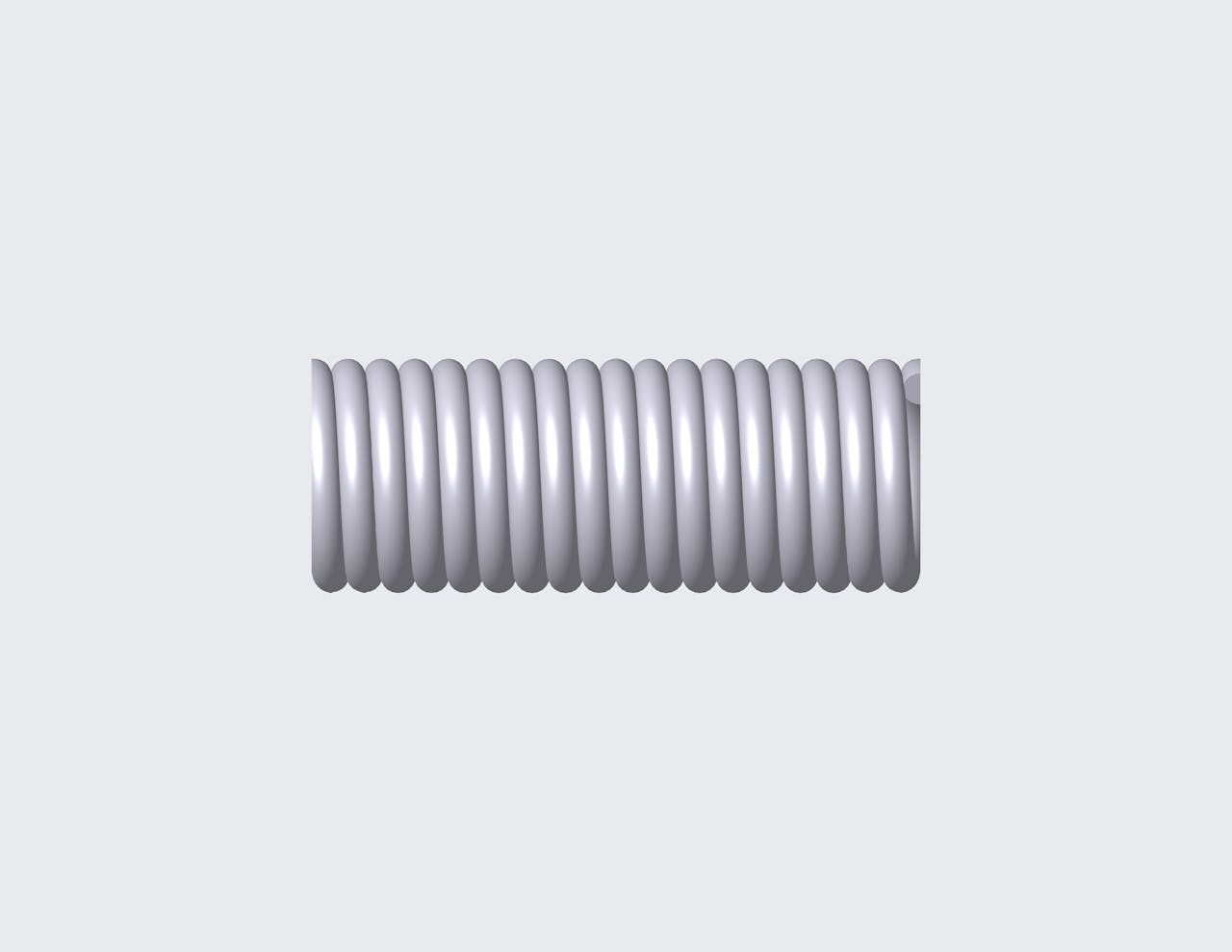

66551SCS - 0.41" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 5.25 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.132".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66551S
Ends Closed & Ground
Finish Passivated
Free Length 0.41 in
Inside Diameter 0.132 in
Material 316 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 57.716 lbs/in
SKU 66551SCS
Solid Length 0.147 in
Suggested Max Deflection 0.061 in
Suggested Max Load 3.521 lbf
Total Coils 5.25
Wire Diameter 0.028 in
The 66551SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.028" diameter 316 stainless steel, the 66551S spring design exhibits reliable strength across its 5.25 active coils, withstanding repeated compression cycles with a maximum load of 3.521 lbf without succumbing to fatigue.

We manufacture the 66551S design to provide a compression spring that is 0.41" long at rest and provides a consistent rate of 57.716 lbs/in along its recommended maximum of 0.061" deflection. For best results, your application should fully accommodate the inner (0.132") and outer (0.188") diameters of this spring and be designed for its closed & ground end configuration.
