66296SCS - 0.5" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

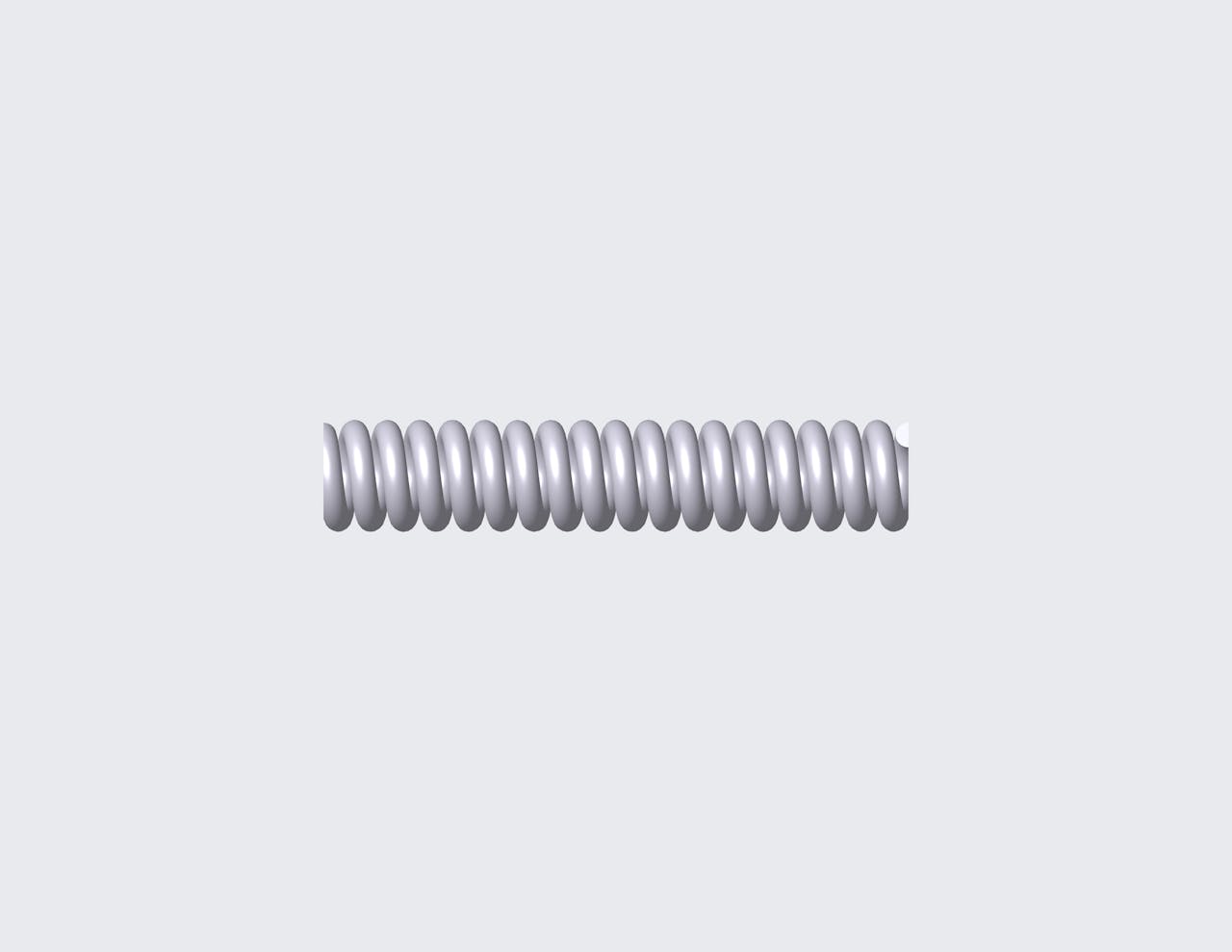

Compression spring manufactured from 316 stainless steel with 12 coils and closed ends. This spring features an O.D. of 0.14", and an I.D. of 0.12".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66296S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 0.5 in |
| Inside Diameter | 0.12 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.14 in |
| Part Type | Standard |
| Rate | 0.569 lbs/in |
| SKU | 66296SCS |
| Solid Length | 0.13 in |
| Suggested Max Deflection | 0.37 in |
| Suggested Max Load | 0.211 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.01 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66296S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 12.7 mm |
| Inside Diameter | 3.05 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 3.56 mm |
| Part Type | Standard |
| Rate | 0.1 N/mm |
| SKU | 66296SCS |
| Solid Length | 3.3 mm |
| Suggested Max Deflection | 9.4 mm |
| Suggested Max Load | 0.94 N |
| Total Coils | 12 |
| Wire Diameter | 0.25 mm |
The 66296SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.01" diameter 316 stainless steel, the 66296S spring design exhibits reliable strength across its 12 active coils, withstanding repeated compression cycles with a maximum load of 0.211 lbf without succumbing to fatigue.
We manufacture the 66296S design to provide a compression spring that is 0.5" long at rest and provides a consistent rate of 0.569 lbs/in along its recommended maximum of 0.37" deflection. For best results, your application should fully accommodate the inner (0.12") and outer (0.14") diameters of this spring and be designed for its closed end configuration.
