66264SCS - 1.38" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

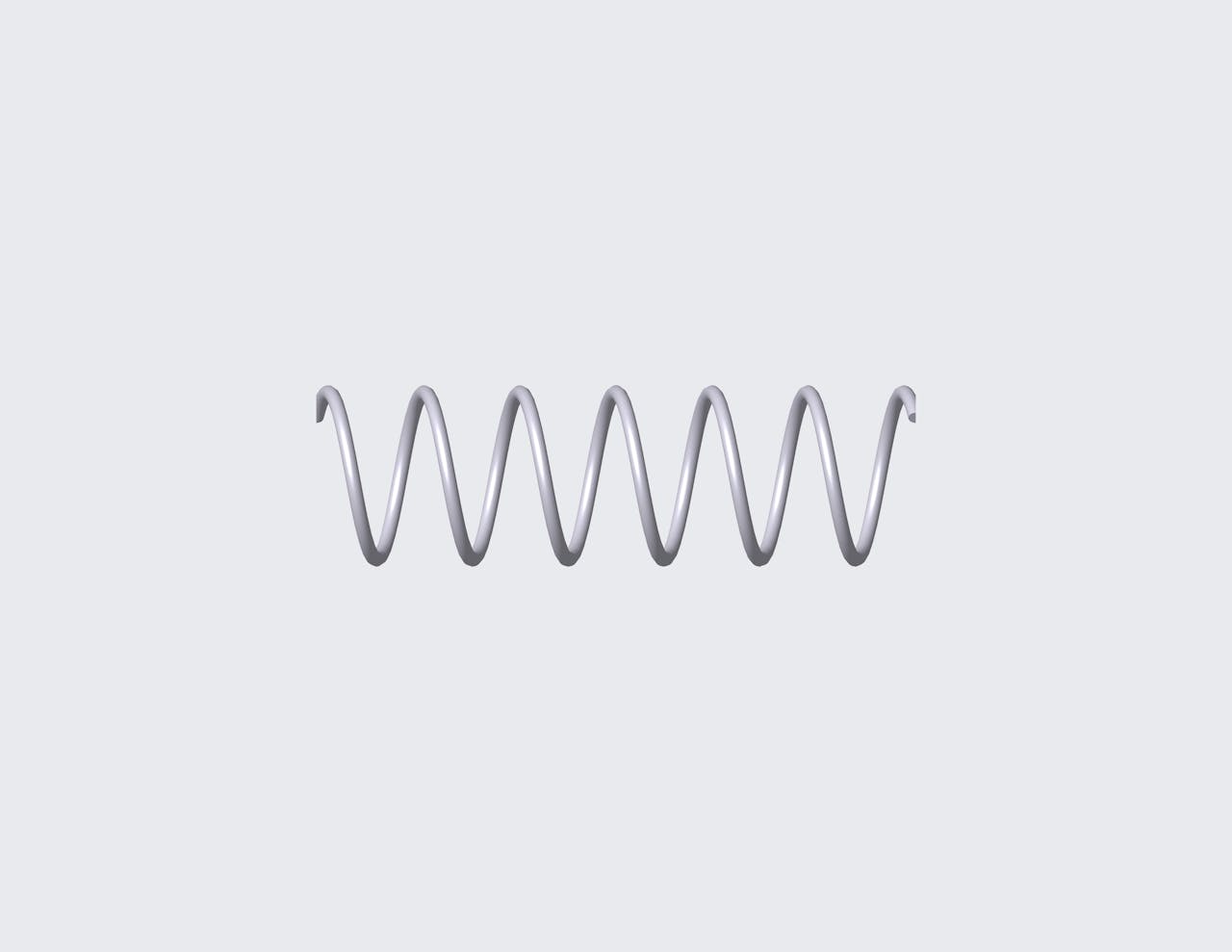

Compression spring manufactured from 316 stainless steel with 27.5 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.097".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66264S
Ends Closed
Finish Passivated
Free Length 1.38 in
Inside Diameter 0.097 in
Material 316 Stainless Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 1.377 lbs/in
SKU 66264SCS
Solid Length 0.399 in
Suggested Max Deflection 0.499 in
Suggested Max Load 0.687 lbf
Total Coils 27.5
Wire Diameter 0.014 in
The 66264SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.014" diameter 316 stainless steel, the 66264S spring design exhibits reliable strength across its 27.5 active coils, withstanding repeated compression cycles with a maximum load of 0.687 lbf without succumbing to fatigue.

We manufacture the 66264S design to provide a compression spring that is 1.38" long at rest and provides a consistent rate of 1.377 lbs/in along its recommended maximum of 0.499" deflection. For best results, your application should fully accommodate the inner (0.097") and outer (0.125") diameters of this spring and be designed for its closed end configuration.
