66253SCS - 1" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

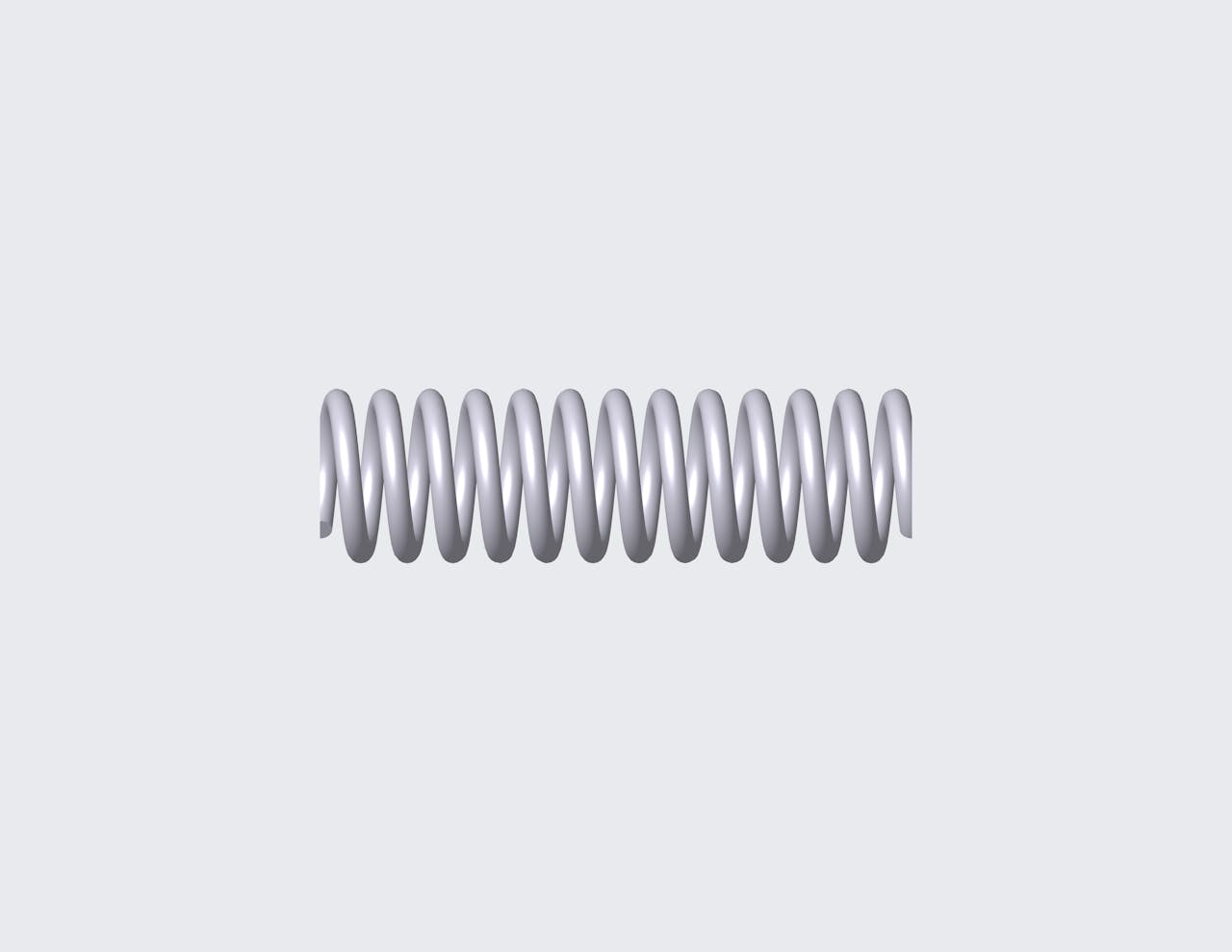

Compression spring manufactured from 316 stainless steel with 23.5 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.097".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66253S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 1 in |
| Inside Diameter | 0.097 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 1.633 lbs/in |
| SKU | 66253SCS |
| Solid Length | 0.343 in |
| Suggested Max Deflection | 0.421 in |
| Suggested Max Load | 0.687 lbf |
| Total Coils | 23.5 |
| Wire Diameter | 0.014 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66253S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 25.4 mm |
| Inside Diameter | 2.46 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 0.29 N/mm |
| SKU | 66253SCS |
| Solid Length | 8.71 mm |
| Suggested Max Deflection | 10.69 mm |
| Suggested Max Load | 3.06 N |
| Total Coils | 23.5 |
| Wire Diameter | 0.36 mm |
The compression spring 66253SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66253S compression spring design exhibits exceptional tensile strength and resilience.
The 66253S design is manufactured with a free length of 1", with an outer diameter of 0.125", an inner diameter of 0.097", and a total of 23.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.633 lbs/in.
The 66253SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 66253S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
