Century Spring

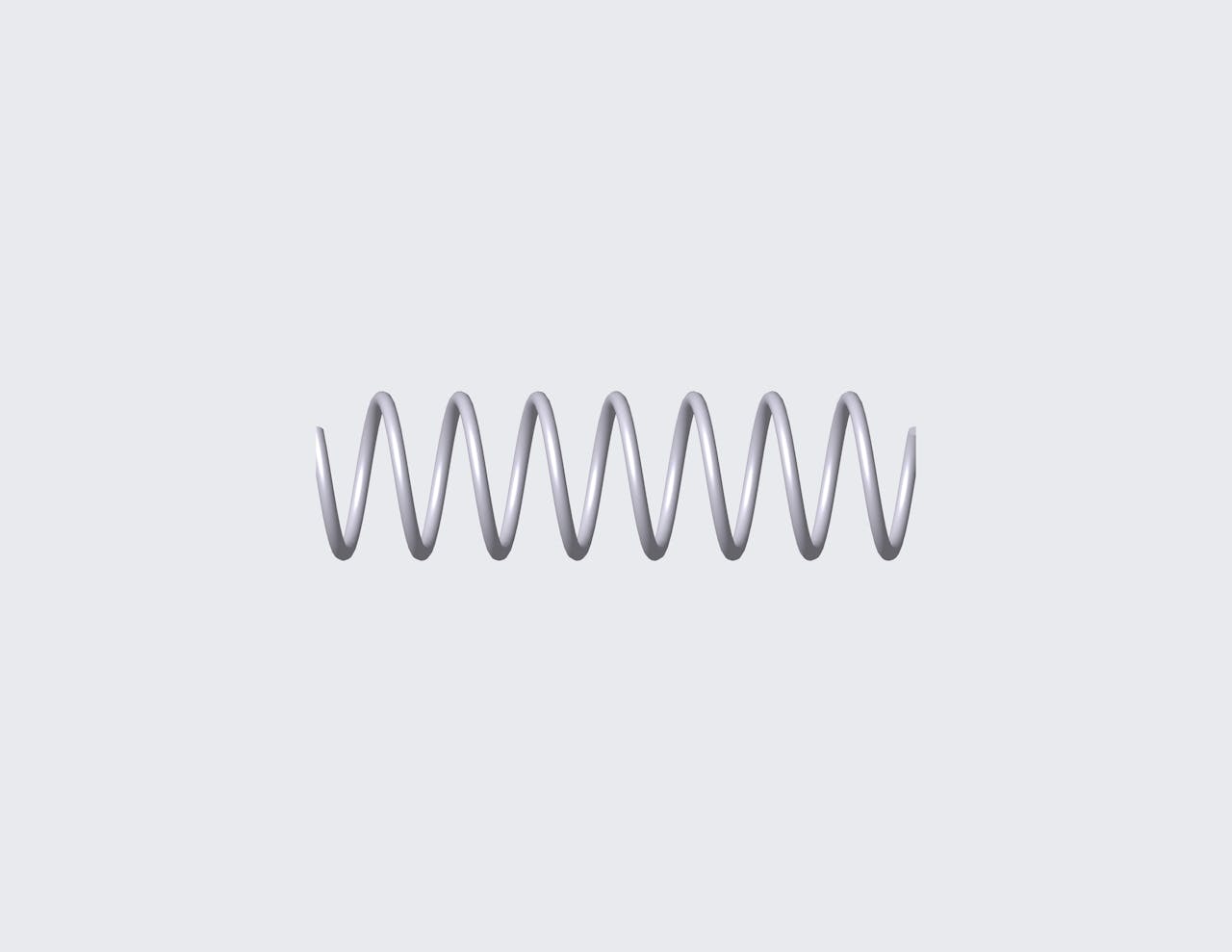

66223SCS - 0.63" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 16 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.089".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66223S
Ends Closed
Finish Passivated
Free Length 0.63 in
Inside Diameter 0.089 in
Material 316 Stainless Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 7.651 lbs/in
SKU 66223SCS
Solid Length 0.306 in
Suggested Max Deflection 0.183 in
Suggested Max Load 1.4 lbf
Total Coils 16
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 66223S
Ends Closed
Finish Passivated
Free Length 16 mm
Inside Diameter 2.26 mm
Material 316 Stainless Steel
Outside Diameter 3.18 mm
Part Type Standard
Rate 1.34 N/mm
SKU 66223SCS
Solid Length 7.77 mm
Suggested Max Deflection 4.65 mm
Suggested Max Load 6.23 N
Total Coils 16
Wire Diameter 0.46 mm
The compression spring 66223SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66223S compression spring design exhibits exceptional tensile strength and resilience.

The 66223S design is manufactured with a free length of 0.63", with an outer diameter of 0.125", an inner diameter of 0.089", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.651 lbs/in.

The 66223SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 66223S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
