66201SCS - 0.5" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

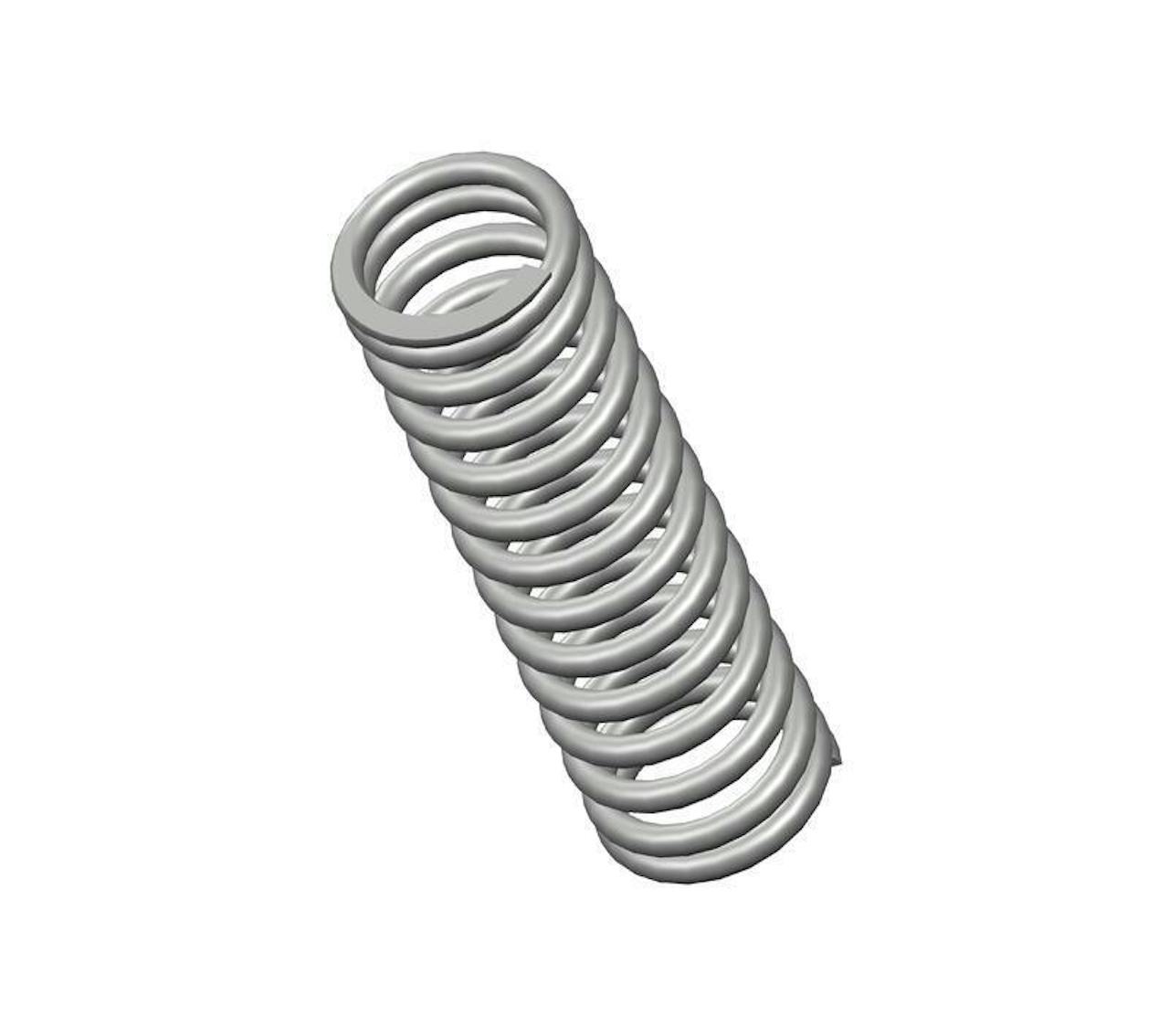

Compression spring manufactured from 316 stainless steel with 10.8 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.089".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66201S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 0.5 in |
| Inside Diameter | 0.089 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 12.172 lbs/in |
| SKU | 66201SCS |
| Solid Length | 0.212 in |
| Suggested Max Deflection | 0.115 in |
| Suggested Max Load | 1.4 lbf |
| Total Coils | 10.8 |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66201S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 12.7 mm |
| Inside Diameter | 2.26 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 2.13 N/mm |
| SKU | 66201SCS |
| Solid Length | 5.38 mm |
| Suggested Max Deflection | 2.92 mm |
| Suggested Max Load | 6.23 N |
| Total Coils | 10.8 |
| Wire Diameter | 0.46 mm |
The compression spring 66201SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66201S compression spring design exhibits exceptional tensile strength and resilience.
The 66201S design is manufactured with a free length of 0.5", with an outer diameter of 0.125", an inner diameter of 0.089", and a total of 10.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 12.172 lbs/in.
The 66201SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 66201S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 66201S design is manufactured with a free length of 0.5", with an outer diameter of 0.125", an inner diameter of 0.089", and a total of 10.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 12.172 lbs/in.
The 66201SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 66201S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
You May Also Like
-
-
-

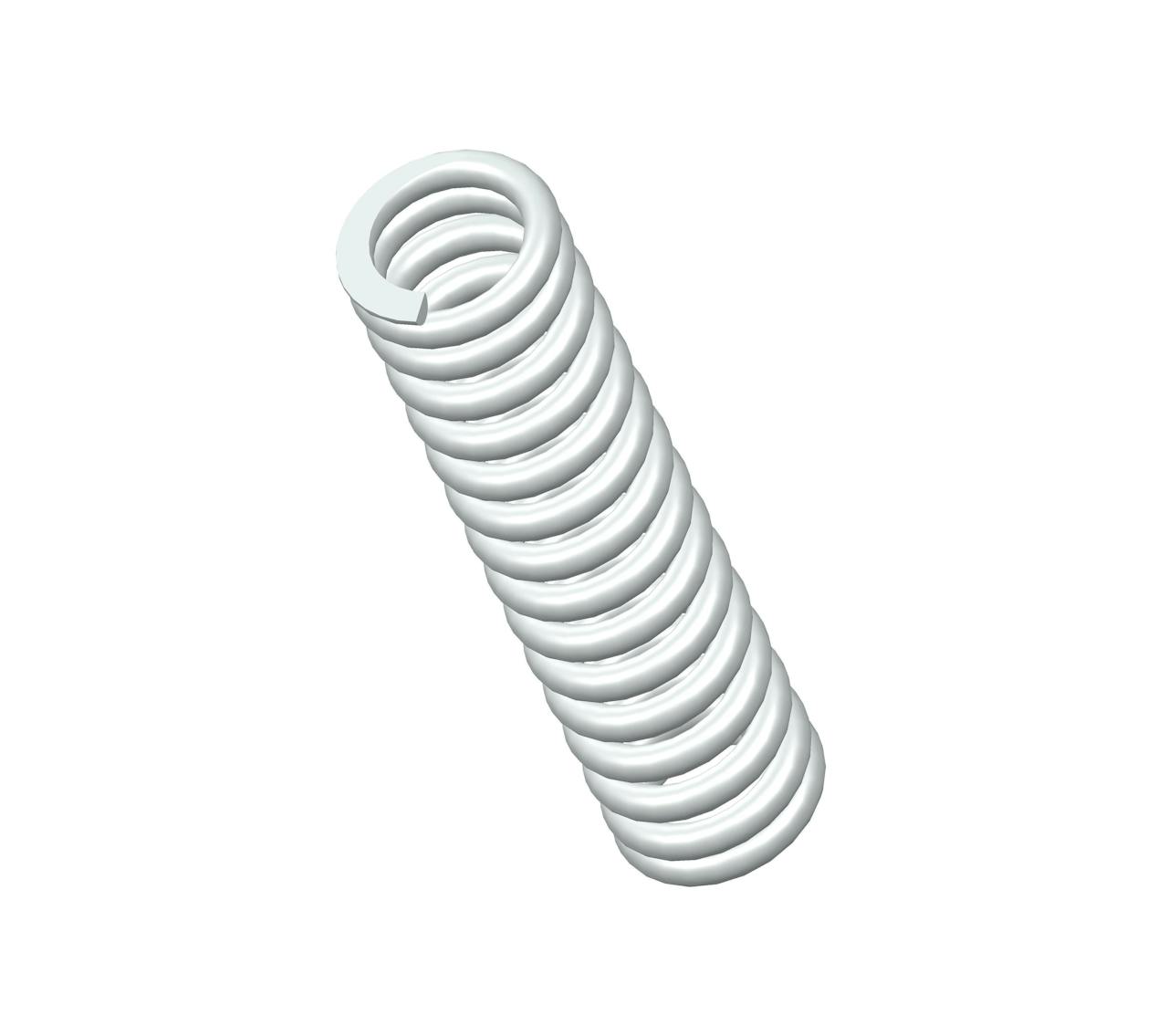

OO-13CS - 0.94" 302/304 Stainless Steel Compression SpringCentury Spring
