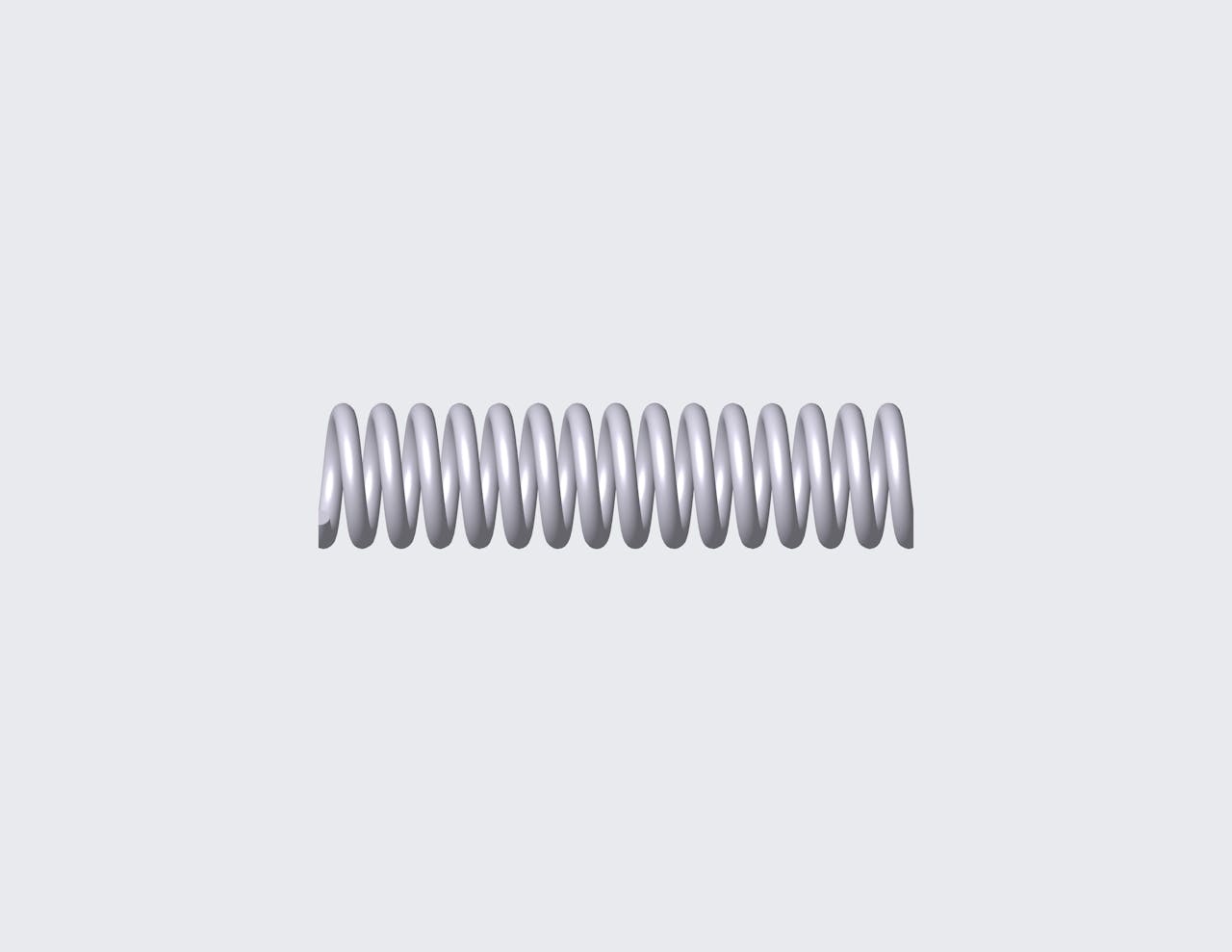

66154SCS - 0.31" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.091".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66154S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.31 in |
| Inside Diameter | 0.091 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 13.813 lbs/in |
| SKU | 66154SCS |
| Solid Length | 0.136 in |
| Suggested Max Deflection | 0.086 in |
| Suggested Max Load | 1.188 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.017 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66154S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 7.87 mm |
| Inside Diameter | 2.31 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 2.42 N/mm |
| SKU | 66154SCS |
| Solid Length | 3.45 mm |
| Suggested Max Deflection | 2.18 mm |
| Suggested Max Load | 5.28 N |
| Total Coils | 8 |
| Wire Diameter | 0.43 mm |
The compression spring 66154SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66154S compression spring design exhibits exceptional tensile strength and resilience.
The 66154S design is manufactured with a free length of 0.31", with an outer diameter of 0.125", an inner diameter of 0.091", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 13.813 lbs/in.
The 66154SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 66154S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 66154S design is manufactured with a free length of 0.31", with an outer diameter of 0.125", an inner diameter of 0.091", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 13.813 lbs/in.
The 66154SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 66154S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
