66115SCS - 0.63" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

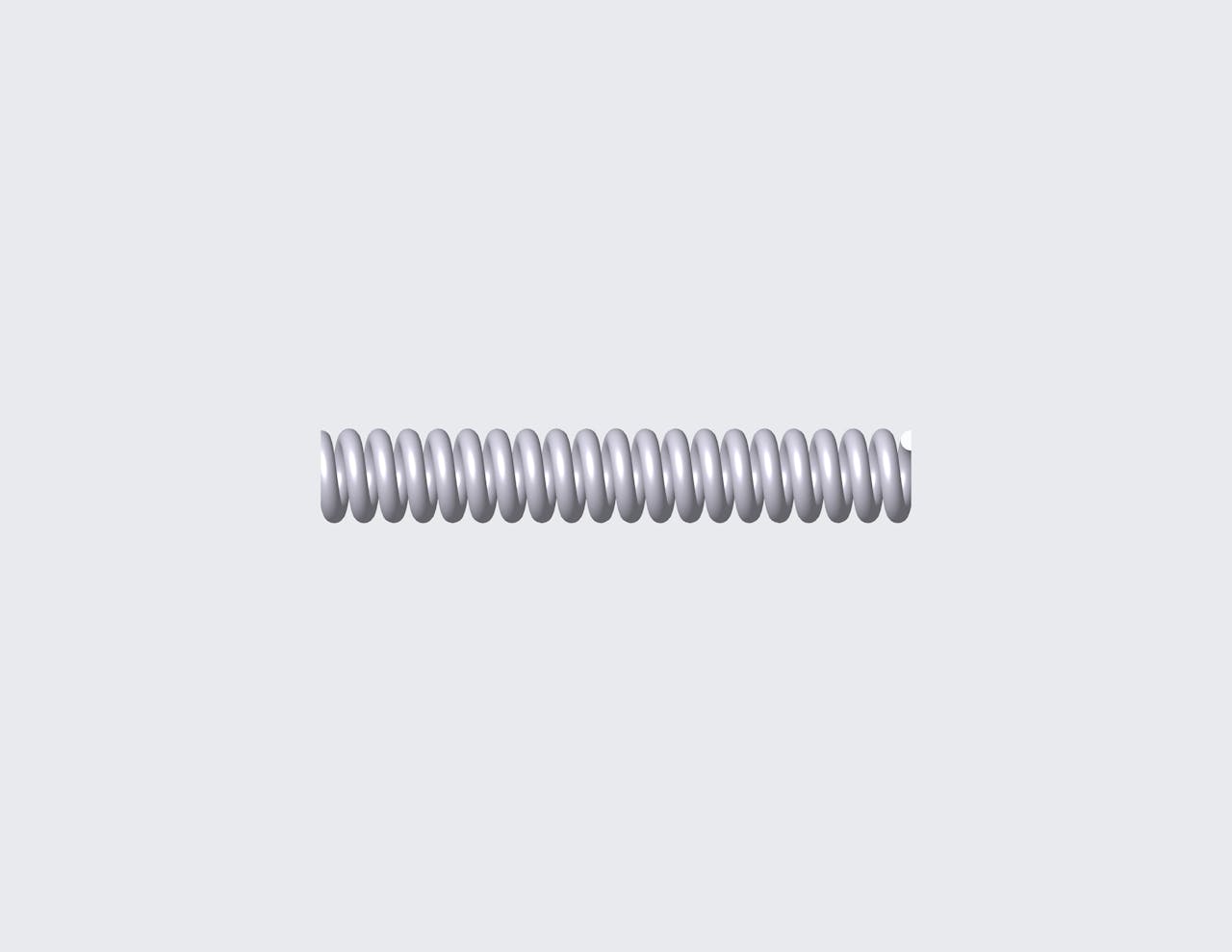

Compression spring manufactured from 316 stainless steel with 13 coils and closed ends. This spring features an O.D. of 0.109", and an I.D. of 0.077".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66115S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 0.63 in |
| Inside Diameter | 0.077 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.109 in |
| Part Type | Standard |
| Rate | 9.259 lbs/in |
| SKU | 66115SCS |
| Solid Length | 0.224 in |
| Suggested Max Deflection | 0.122 in |
| Suggested Max Load | 1.13 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66115S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 16 mm |
| Inside Diameter | 1.96 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 2.77 mm |
| Part Type | Standard |
| Rate | 1.62 N/mm |
| SKU | 66115SCS |
| Solid Length | 5.69 mm |
| Suggested Max Deflection | 3.1 mm |
| Suggested Max Load | 5.03 N |
| Total Coils | 13 |
| Wire Diameter | 0.41 mm |
The compression spring 66115SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66115S compression spring design exhibits exceptional tensile strength and resilience.
The 66115S design is manufactured with a free length of 0.63", with an outer diameter of 0.109", an inner diameter of 0.077", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.259 lbs/in.
The 66115SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 66115S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 66115S design is manufactured with a free length of 0.63", with an outer diameter of 0.109", an inner diameter of 0.077", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.259 lbs/in.
