Century Spring

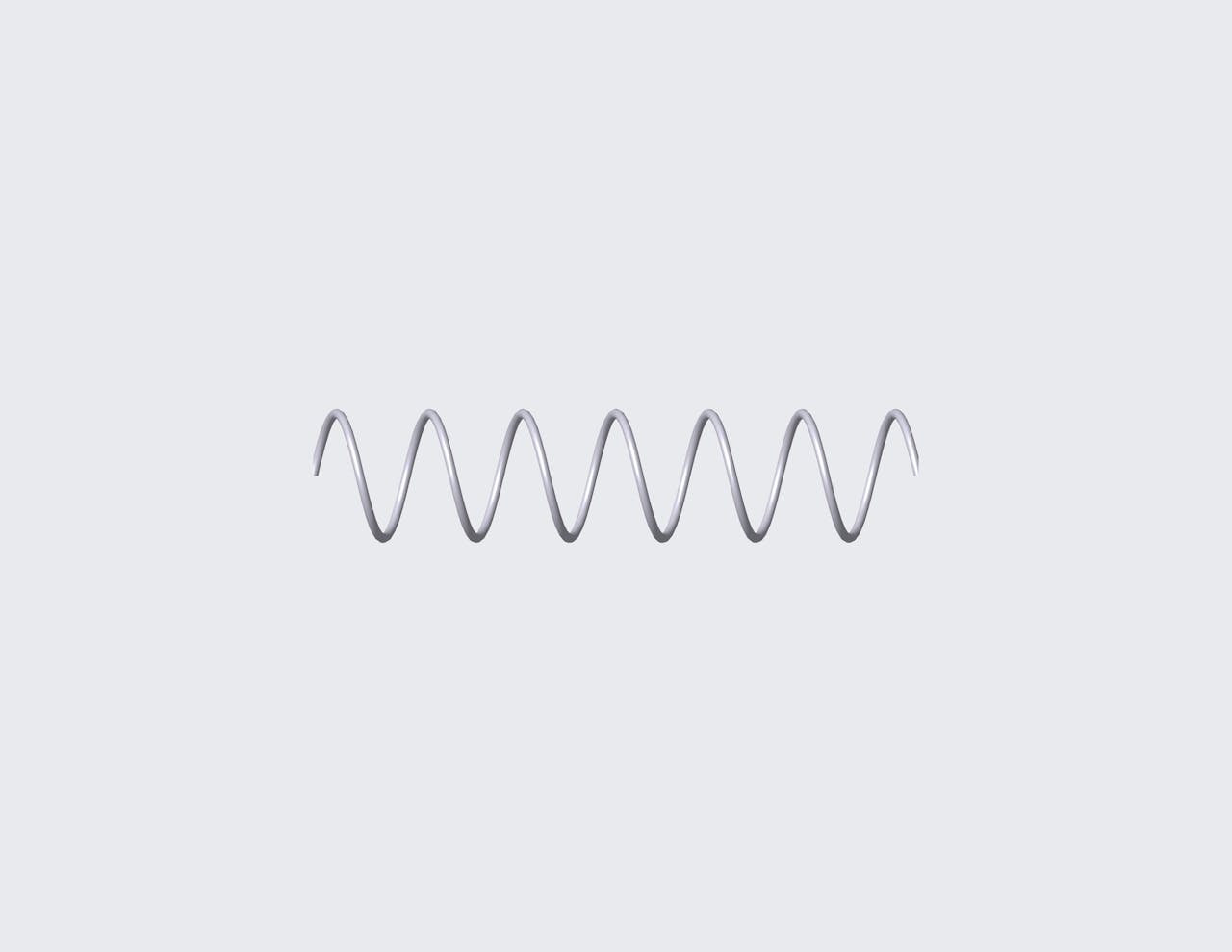

66086SCS - 0.34" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 11 coils and closed ends. This spring features an O.D. of 0.1", and an I.D. of 0.068".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66086S
Ends Closed
Finish Passivated
Free Length 0.34 in
Inside Diameter 0.068 in
Material 316 Stainless Steel
Outside Diameter 0.1 in
Part Type Standard
Rate 15.357 lbs/in
SKU 66086SCS
Solid Length 0.192 in
Suggested Max Deflection 0.079 in
Suggested Max Load 1.213 lbf
Total Coils 11
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 66086S
Ends Closed
Finish Passivated
Free Length 8.64 mm
Inside Diameter 1.73 mm
Material 316 Stainless Steel
Outside Diameter 2.54 mm
Part Type Standard
Rate 2.69 N/mm
SKU 66086SCS
Solid Length 4.88 mm
Suggested Max Deflection 2.01 mm
Suggested Max Load 5.4 N
Total Coils 11
Wire Diameter 0.41 mm
The 66086S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 66086SCS compression spring is designed with a free length of 0.25" total of 7.5 coils, and a rate of 3.118 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 66086S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
