66046SCS - 0.34" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

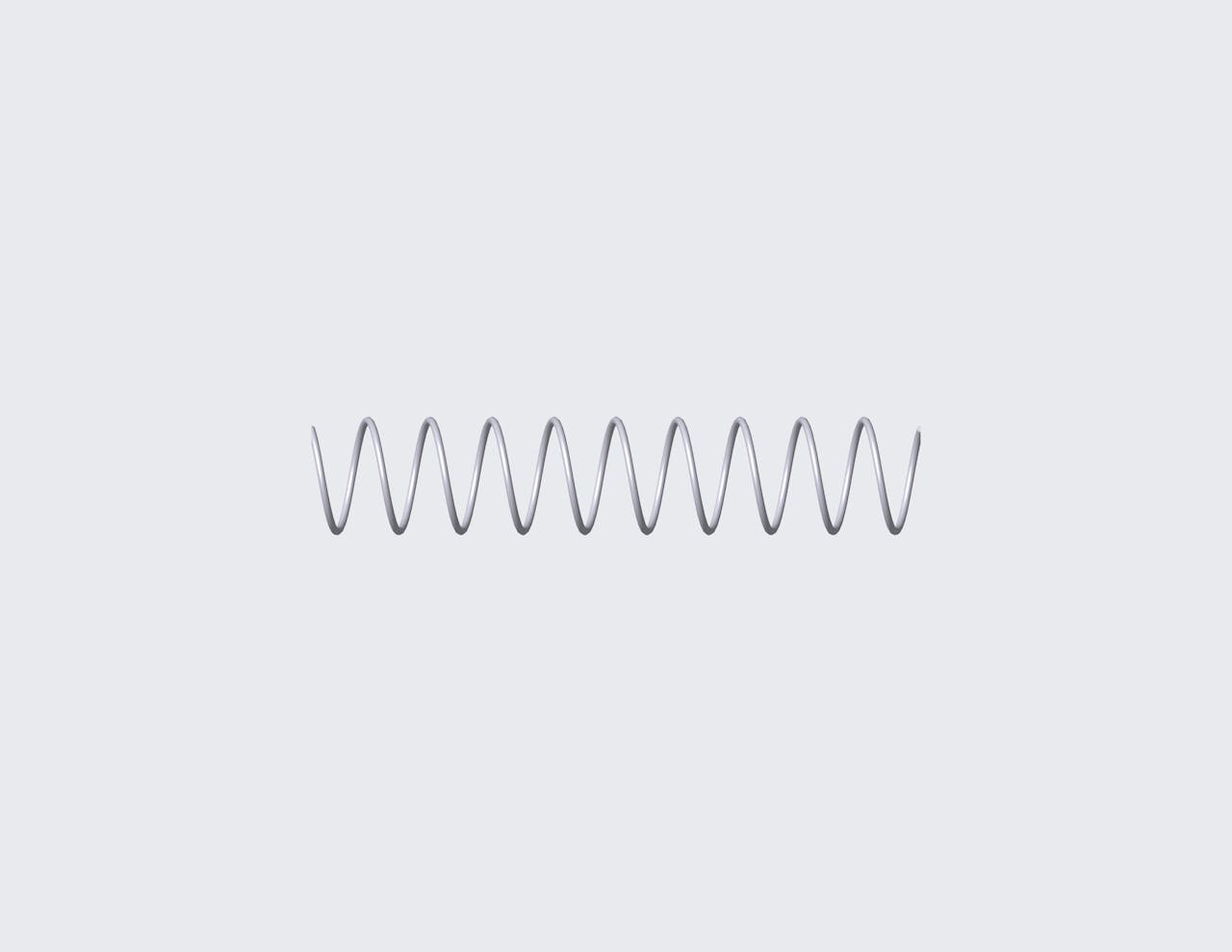

Compression spring manufactured from 316 stainless steel with 10.3 coils and closed ends. This spring features an O.D. of 0.094", and an I.D. of 0.062".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66046S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 0.34 in |
| Inside Diameter | 0.062 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.094 in |
| Part Type | Standard |
| Rate | 20.798 lbs/in |
| SKU | 66046SCS |
| Solid Length | 0.181 in |
| Suggested Max Deflection | 0.062 in |
| Suggested Max Load | 1.289 lbf |
| Total Coils | 10.3 |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 66046S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 8.64 mm |
| Inside Diameter | 1.57 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 2.39 mm |
| Part Type | Standard |
| Rate | 3.64 N/mm |
| SKU | 66046SCS |
| Solid Length | 4.6 mm |
| Suggested Max Deflection | 1.57 mm |
| Suggested Max Load | 5.73 N |
| Total Coils | 10.3 |
| Wire Diameter | 0.41 mm |
The 66046SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.016" diameter 316 stainless steel, the 66046S spring design exhibits reliable strength across its 10.3 active coils, withstanding repeated compression cycles with a maximum load of 1.289 lbf without succumbing to fatigue.
We manufacture the 66046S design to provide a compression spring that is 0.34" long at rest and provides a consistent rate of 20.798 lbs/in along its recommended maximum of 0.062" deflection. For best results, your application should fully accommodate the inner (0.062") and outer (0.094") diameters of this spring and be designed for its closed end configuration.
