Century Spring

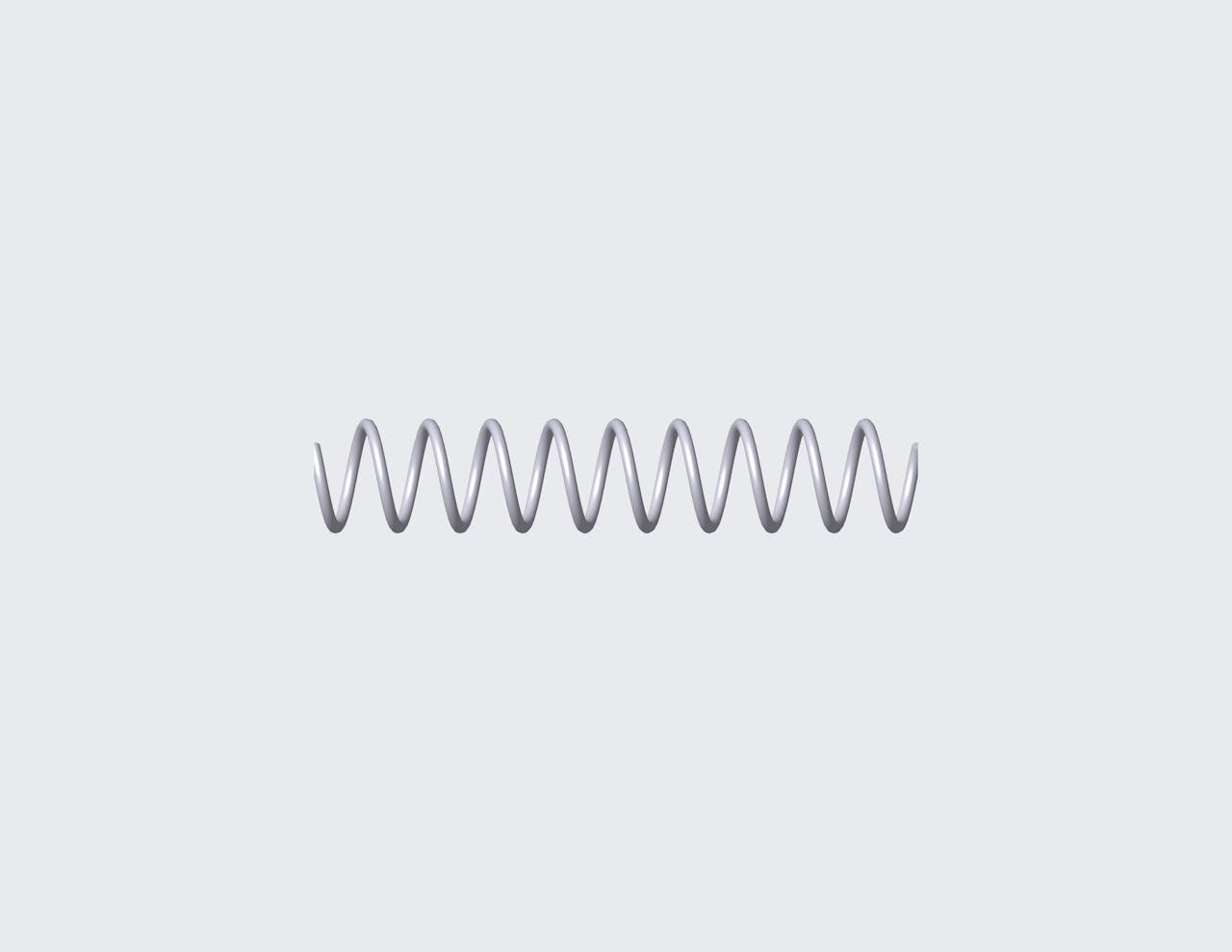

66026SCS - 0.34" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 11 coils and closed ends. This spring features an O.D. of 0.078", and an I.D. of 0.058".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66026S
Ends Closed
Finish Passivated
Free Length 0.34 in
Inside Diameter 0.058 in
Material 316 Stainless Steel
Outside Diameter 0.078 in
Part Type Standard
Rate 4.417 lbs/in
SKU 66026SCS
Solid Length 0.12 in
Suggested Max Deflection 0.092 in
Suggested Max Load 0.406 lbf
Total Coils 11
Wire Diameter 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 66026S
Ends Closed
Finish Passivated
Free Length 8.64 mm
Inside Diameter 1.47 mm
Material 316 Stainless Steel
Outside Diameter 1.98 mm
Part Type Standard
Rate 0.77 N/mm
SKU 66026SCS
Solid Length 3.05 mm
Suggested Max Deflection 2.34 mm
Suggested Max Load 1.81 N
Total Coils 11
Wire Diameter 0.25 mm
The 66026SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.01" diameter 316 stainless steel, the 66026S spring design exhibits reliable strength across its 11 active coils, withstanding repeated compression cycles with a maximum load of 0.406 lbf without succumbing to fatigue.

We manufacture the 66026S design to provide a compression spring that is 0.34" long at rest and provides a consistent rate of 4.417 lbs/in along its recommended maximum of 0.092" deflection. For best results, your application should fully accommodate the inner (0.058") and outer (0.078") diameters of this spring and be designed for its closed end configuration.
