Century Spring

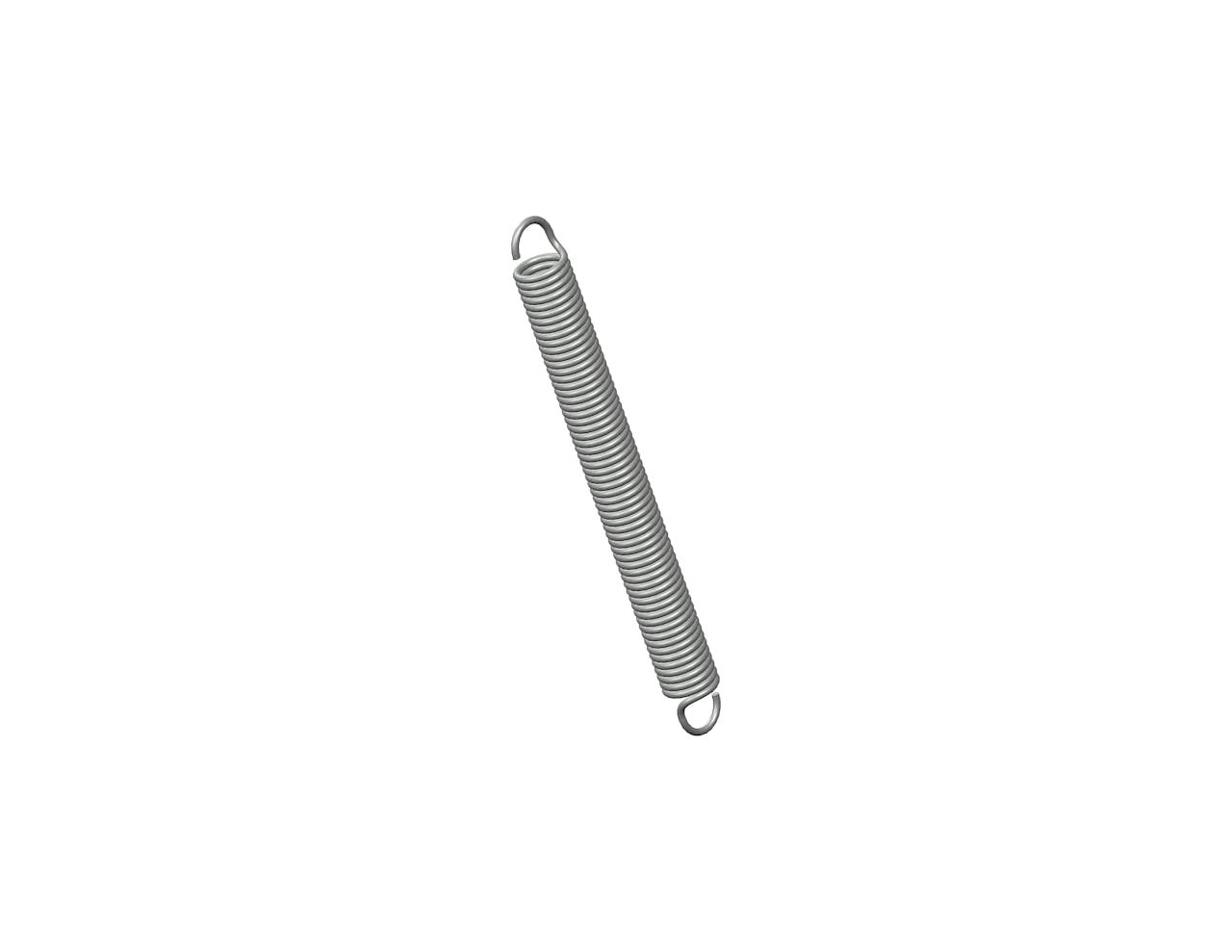

623CS - 14 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 1.375 Inch and an initial tension of 38 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 623
Ends Machine Hook
Finish Zinc
Initial Tension 38 lb
Length 14 in
Material High Carbon Steel
Outside Diameter 1.375 in
Part Type Standard
Rate 19 lbs/in
SKU 623CS
Sugg Max Deflection 6 in
Sugg Max Load 149 lbf
Wind Direction Left
Wire Diameter 0.192 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 623
Ends Machine Hook
Finish Zinc
Initial Tension 17.23 kg
Length 355.6 mm
Material High Carbon Steel
Outside Diameter 34.93 mm
Part Type Standard
Rate 3.33 N/mm
SKU 623CS
Sugg Max Deflection 152.4 mm
Sugg Max Load 662.75 N
Wind Direction Left
Wire Diameter 4.88 mm
