Century Spring

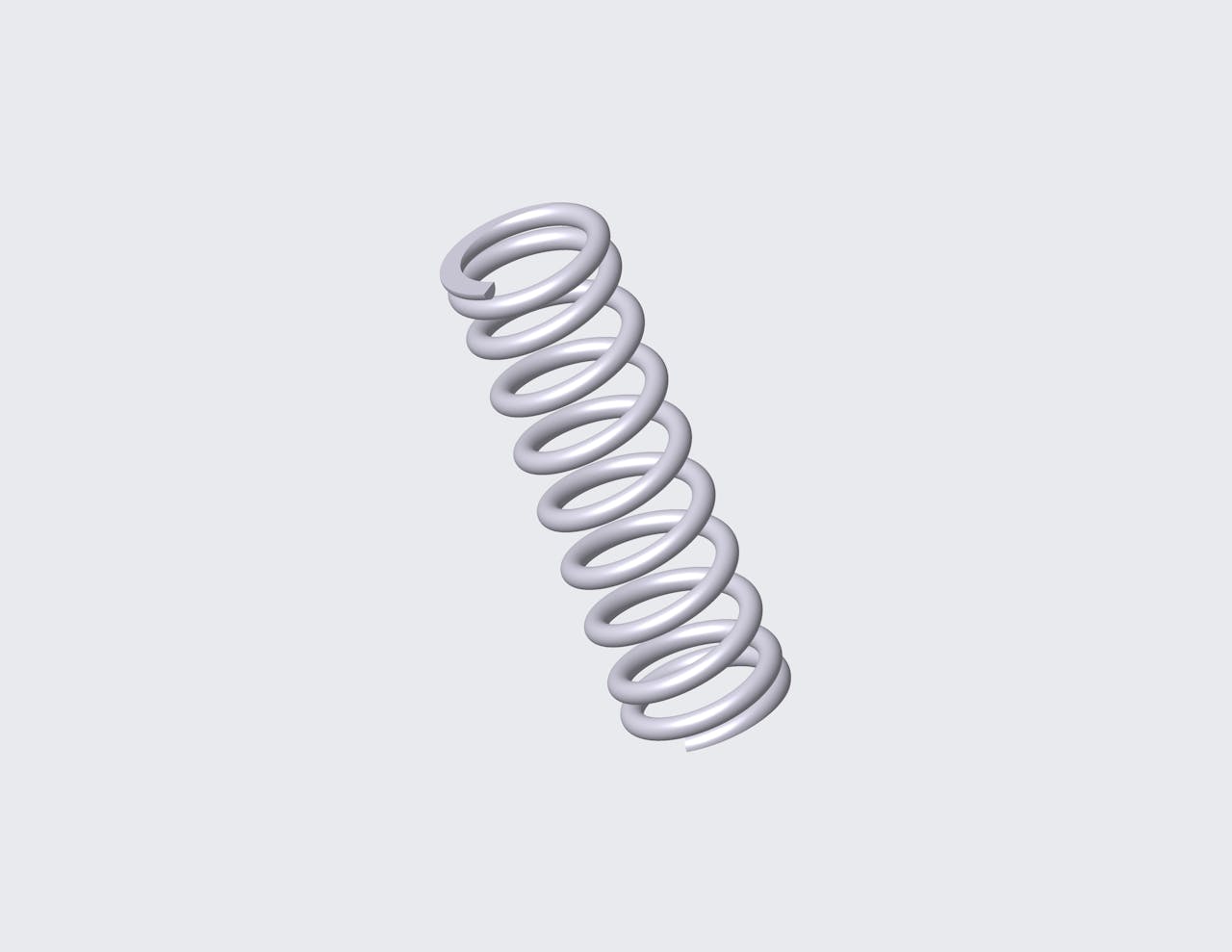

61383SCS - 0.563" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.18", and an I.D. of 0.132".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 61383S
Ends Closed & Ground
Finish Passivated
Free Length 0.563 in
Inside Diameter 0.132 in
Material 316 Stainless Steel
Outside Diameter 0.18 in
Part Type Standard
Rate 13.7 lbs/in
SKU 61383SCS
Solid Length 0.25 in
Suggested Max Deflection 0.17 in
Suggested Max Load 2.329 lbf
Total Coils 10
Wire Diameter 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 61383S
Ends Closed & Ground
Finish Passivated
Free Length 14.3 mm
Inside Diameter 3.35 mm
Material 316 Stainless Steel
Outside Diameter 4.57 mm
Part Type Standard
Rate 2.4 N/mm
SKU 61383SCS
Solid Length 6.35 mm
Suggested Max Deflection 4.32 mm
Suggested Max Load 10.36 N
Total Coils 10
Wire Diameter 0.61 mm
The 61383SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.024" diameter 316 stainless steel, the 61383S spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 2.329 lbf without succumbing to fatigue.

We manufacture the 61383S design to provide a compression spring that is 0.563" long at rest and provides a consistent rate of 13.7 lbs/in along its recommended maximum of 0.17" deflection. For best results, your application should fully accommodate the inner (0.132") and outer (0.18") diameters of this spring and be designed for its closed & ground end configuration.
