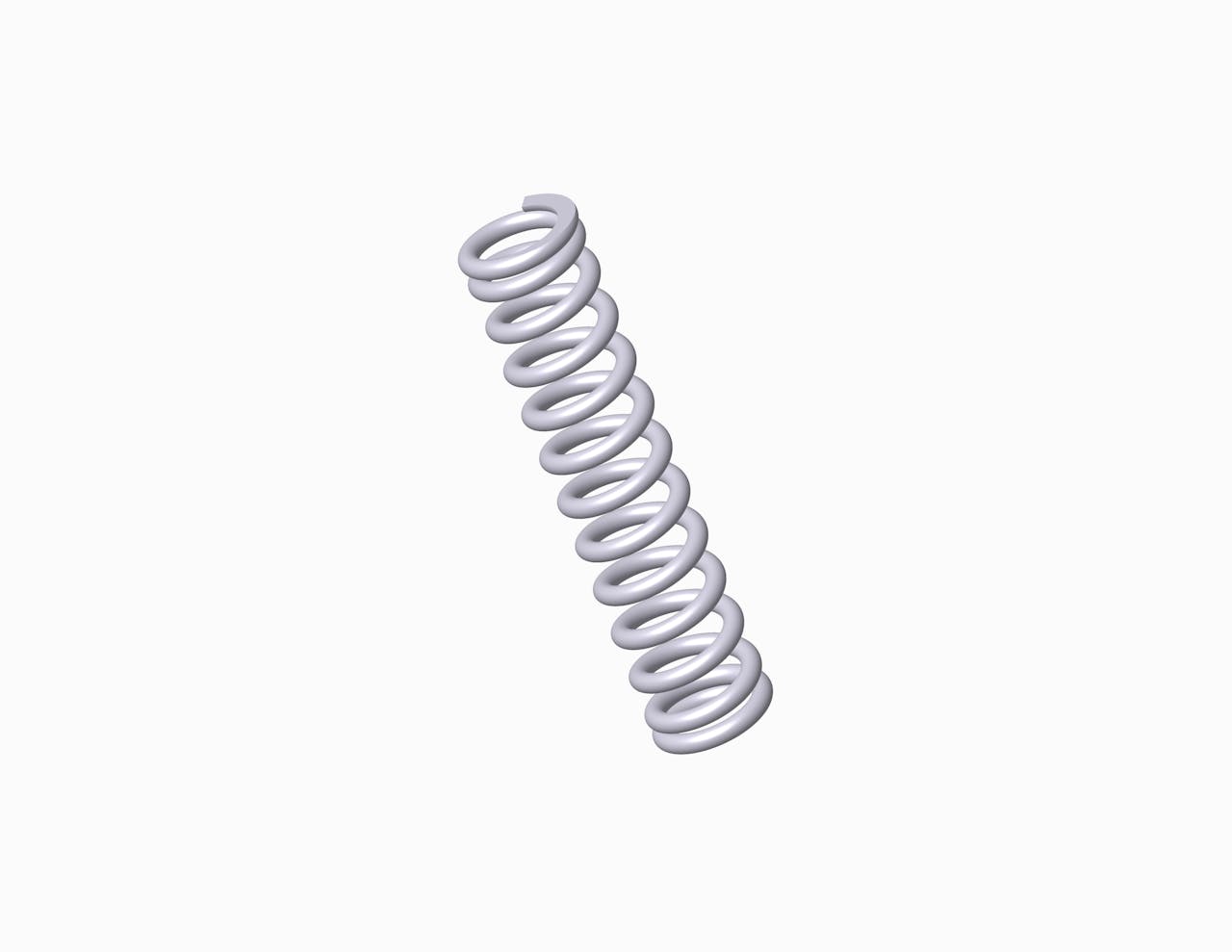

61110SCS - 0.563" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 13.1 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.085".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 61110S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.563 in |
| Inside Diameter | 0.085 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 15.602 lbs/in |
| SKU | 61110SCS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.123 in |
| Suggested Max Load | 1.919 lbf |
| Total Coils | 13.1 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 61110S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 14.3 mm |
| Inside Diameter | 2.16 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 2.73 N/mm |
| SKU | 61110SCS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 3.12 mm |
| Suggested Max Load | 8.54 N |
| Total Coils | 13.1 |
| Wire Diameter | 0.51 mm |
The 61110SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.02" diameter 316 stainless steel, the 61110S spring design exhibits reliable strength across its 13.1 active coils, withstanding repeated compression cycles with a maximum load of 1.919 lbf without succumbing to fatigue.
We manufacture the 61110S design to provide a compression spring that is 0.563" long at rest and provides a consistent rate of 15.602 lbs/in along its recommended maximum of 0.123" deflection. For best results, your application should fully accommodate the inner (0.085") and outer (0.125") diameters of this spring and be designed for its closed & ground end configuration.
