Century Spring

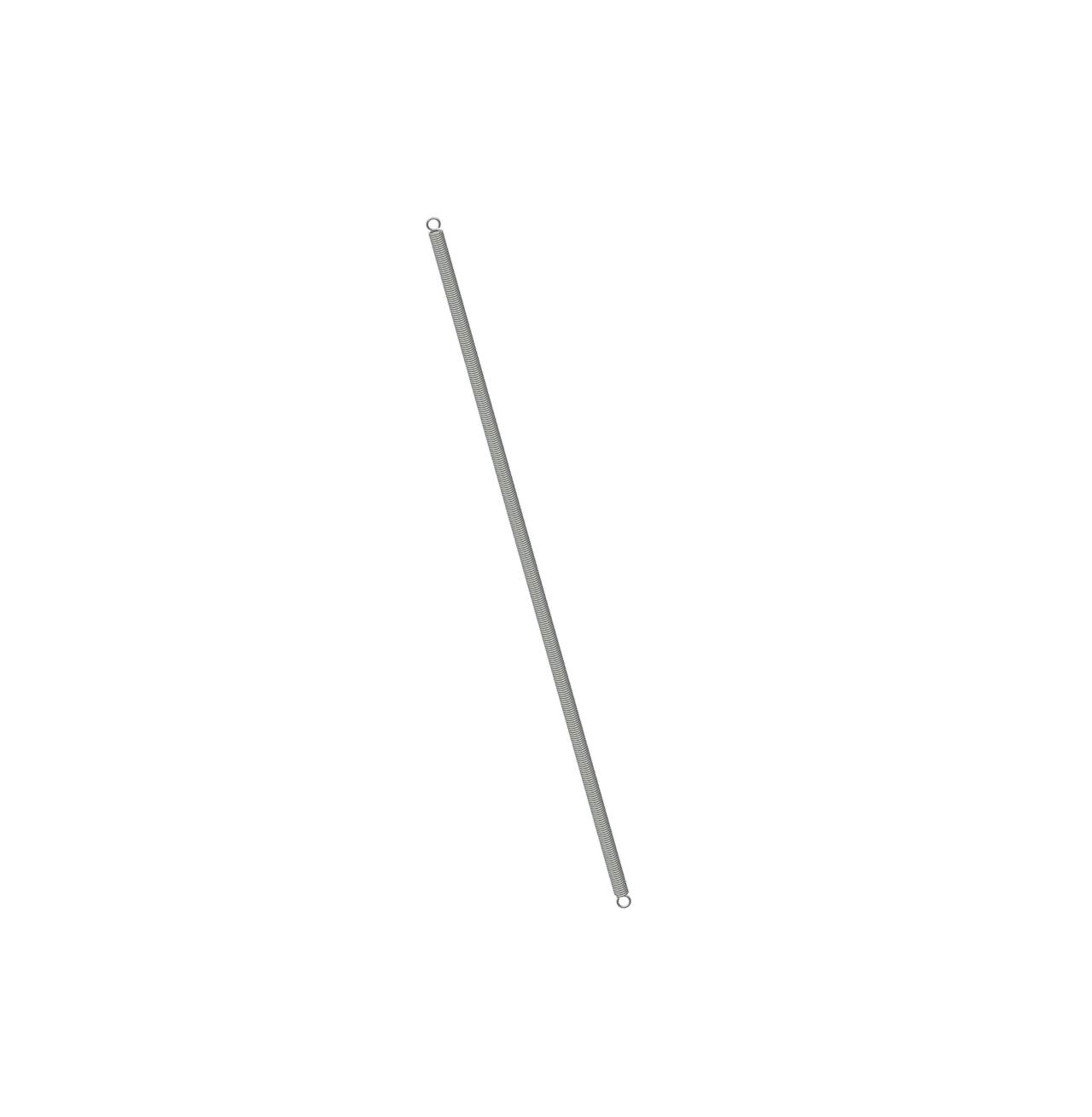

6103CS - 16.1 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.312 Inch and an initial tension of 2.971 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 6103
Ends Full Loop
Finish Zinc
Initial Tension 2.971 lb
Length 16.1 in
Material High Carbon Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 1.1 lbs/in
SKU 6103CS
Sugg Max Deflection 8.7 in
Sugg Max Load 9.6 lbf
Wind Direction Left
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 6103
Ends Full Loop
Finish Zinc
Initial Tension 1.35 kg
Length 408.94 mm
Material High Carbon Steel
Outside Diameter 7.92 mm
Part Type Standard
Rate 0.19 N/mm
SKU 6103CS
Sugg Max Deflection 220.98 mm
Sugg Max Load 42.7 N
Wind Direction Left
Wire Diameter 1.19 mm
