Century Spring

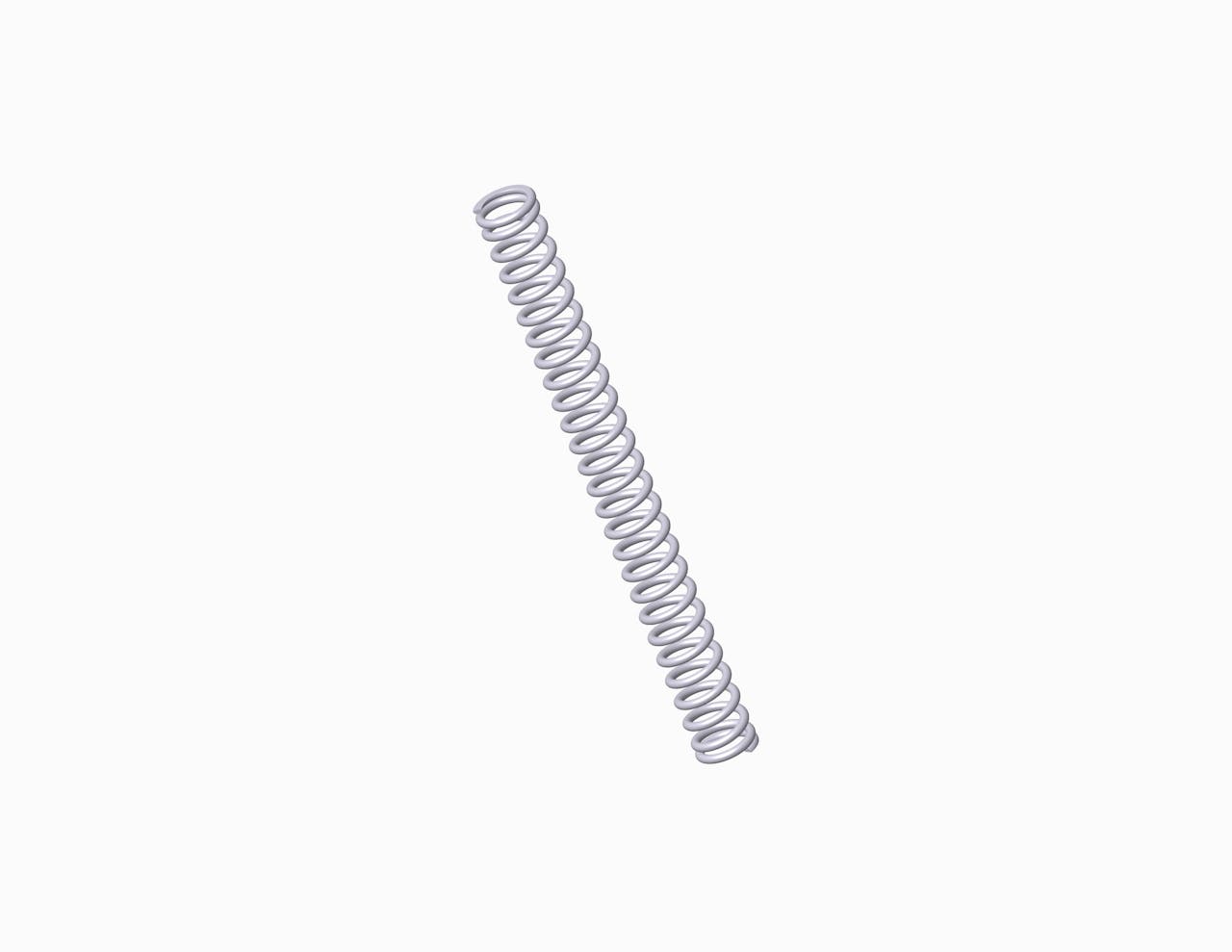

60997SCS - 1.25" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 27.6 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.089".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60997S
Ends Closed & Ground
Finish Passivated
Free Length 1.25 in
Inside Diameter 0.089 in
Material 316 Stainless Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 4.181 lbs/in
SKU 60997SCS
Solid Length 0.51 in
Suggested Max Deflection 0.342 in
Suggested Max Load 1.43 lbf
Total Coils 27.6
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 60997S
Ends Closed & Ground
Finish Passivated
Free Length 31.75 mm
Inside Diameter 2.26 mm
Material 316 Stainless Steel
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.73 N/mm
SKU 60997SCS
Solid Length 12.95 mm
Suggested Max Deflection 8.69 mm
Suggested Max Load 6.36 N
Total Coils 27.6
Wire Diameter 0.46 mm
The compression spring 60997SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 60997S compression spring design exhibits exceptional tensile strength and resilience.

The 60997S design is manufactured with a free length of 1.25", with an outer diameter of 0.125", an inner diameter of 0.089", and a total of 27.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.181 lbs/in.

The 60997SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 60997S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
