60910SCS - 0.563" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

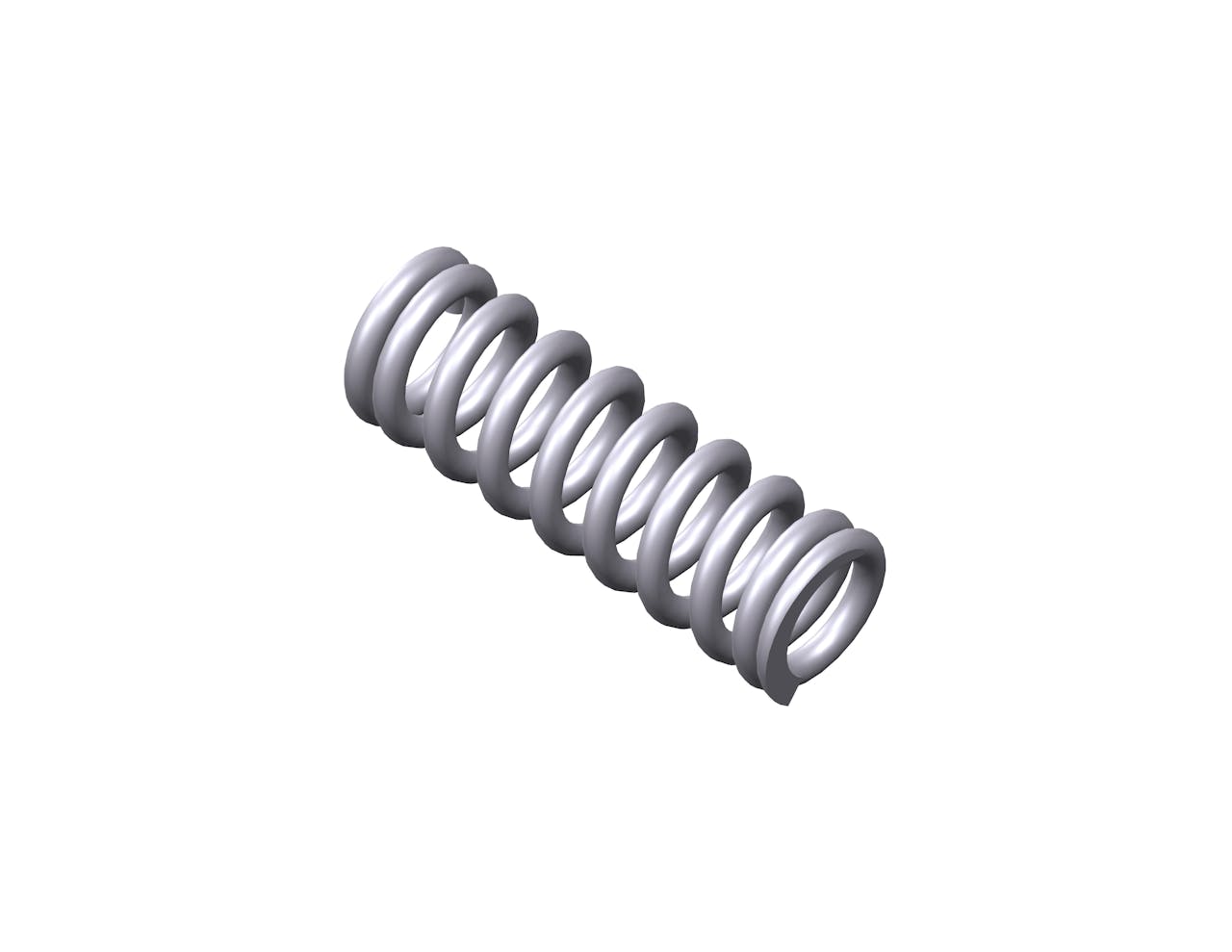

Compression spring manufactured from 316 stainless steel with 9.7 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.124".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60910S
Ends Closed & Ground
Finish Passivated
Free Length 0.563 in
Inside Diameter 0.124 in
Material 316 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 47.06 lbs/in
SKU 60910SCS
Solid Length 0.31 in
Suggested Max Deflection 0.107 in
Suggested Max Load 5.057 lbf
Total Coils 9.7
Wire Diameter 0.032 in
The compression spring 60910SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 60910S compression spring design exhibits exceptional tensile strength and resilience.

The 60910S design is manufactured with a free length of 0.563", with an outer diameter of 0.188", an inner diameter of 0.124", and a total of 9.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 47.06 lbs/in.

The 60910SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 60910S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
