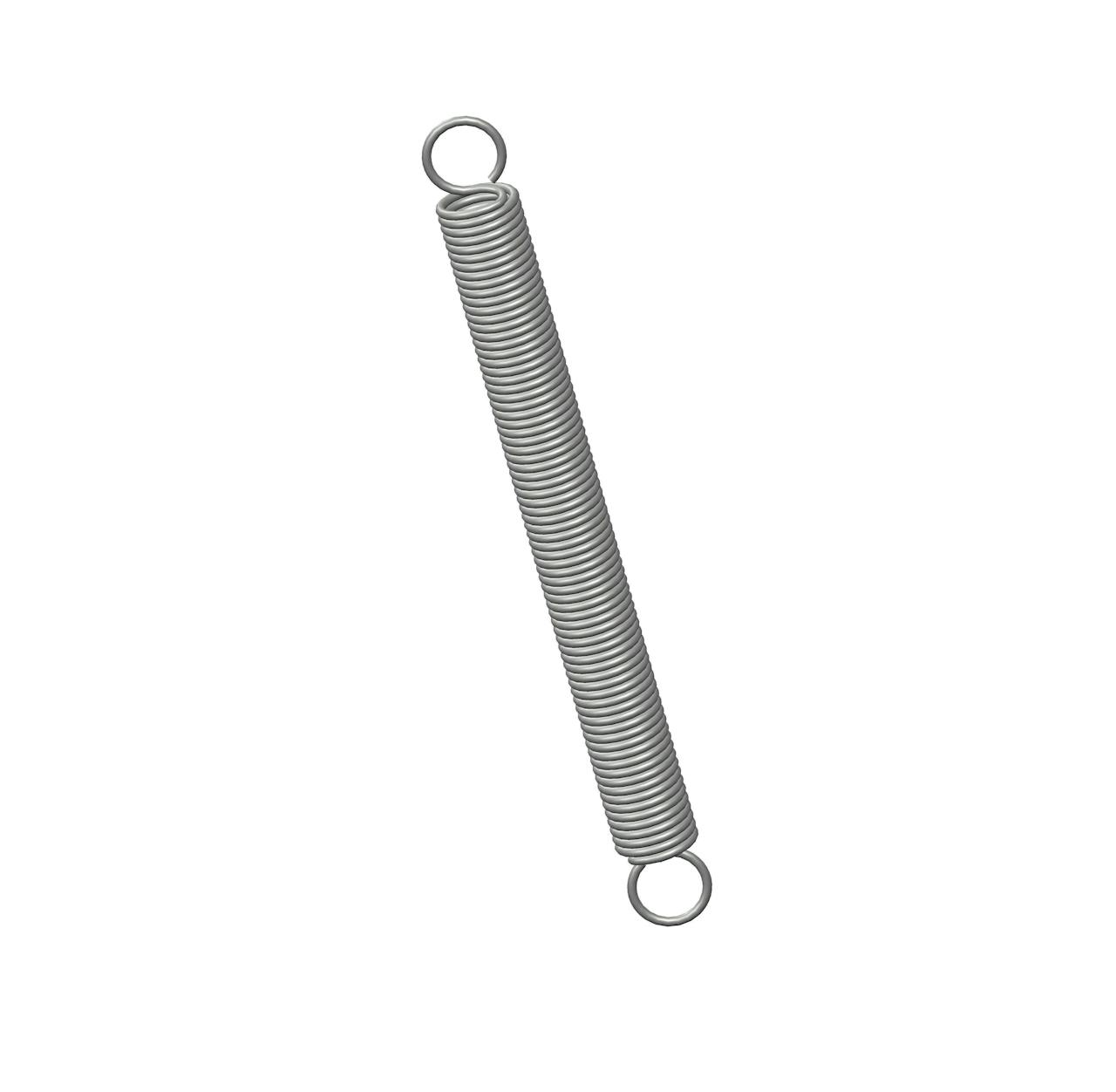

6067CS - 8.38 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 0.812 Inch and an initial tension of 5 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 6067 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 5 lb |
| Length | 8.38 in |
| Material | Music Wire |
| Outside Diameter | 0.812 in |
| Part Type | Standard |
| Rate | 3.4 lbs/in |
| SKU | 6067CS |
| Sugg Max Deflection | 10 in |
| Sugg Max Load | 40 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.092 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 6067 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2.27 kg |
| Length | 212.85 mm |
| Material | Music Wire |
| Outside Diameter | 20.62 mm |
| Part Type | Standard |
| Rate | 0.6 N/mm |
| SKU | 6067CS |
| Sugg Max Deflection | 254 mm |
| Sugg Max Load | 177.92 N |
| Wind Direction | Left |
| Wire Diameter | 2.34 mm |
