Century Spring

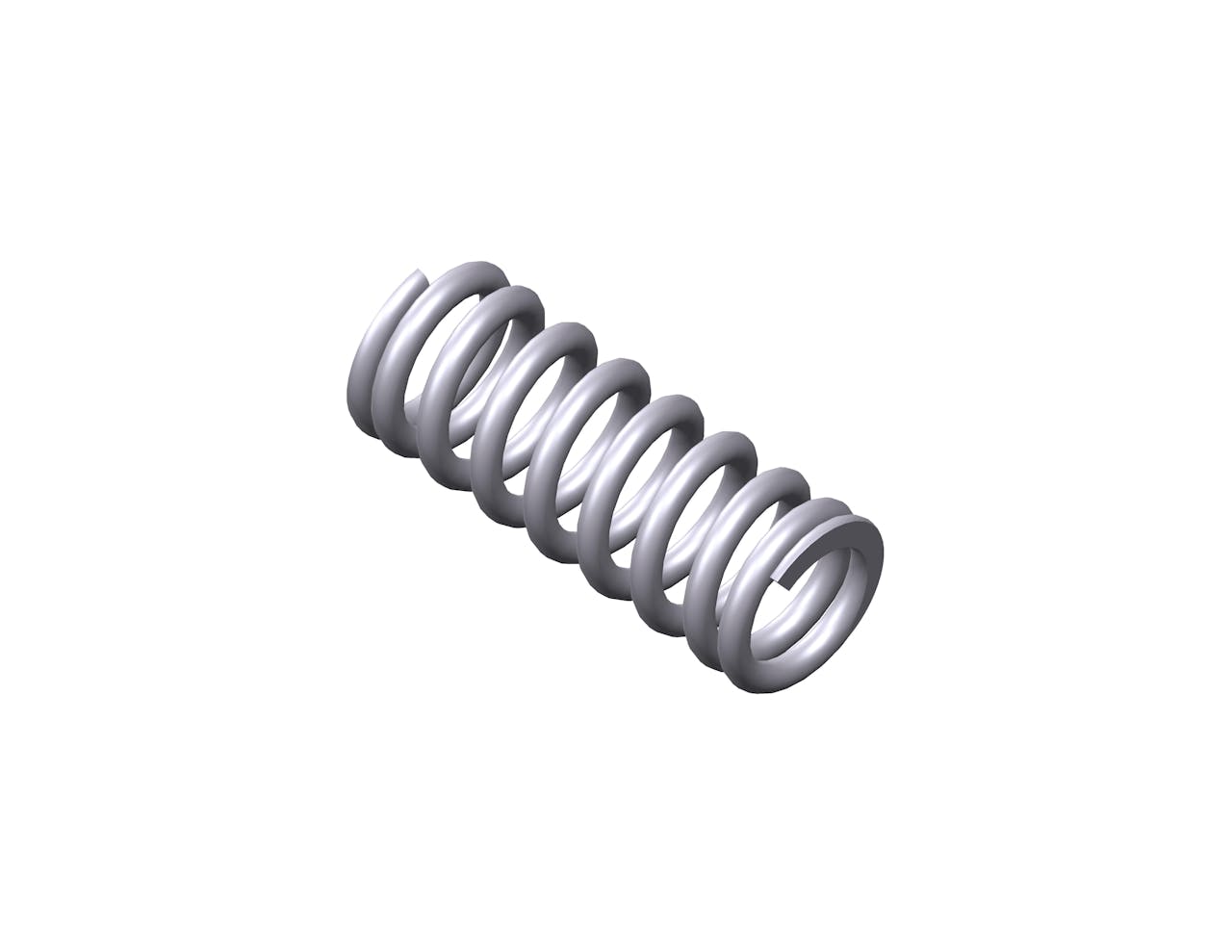

60609SCS - 0.375" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 9.1 coils and closed & ground ends. This spring features an O.D. of 0.148", and an I.D. of 0.102".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60609S
Ends Closed & Ground
Finish Passivated
Free Length 0.375 in
Inside Diameter 0.102 in
Material 316 Stainless Steel
Outside Diameter 0.148 in
Part Type Standard
Rate 24.57 lbs/in
SKU 60609SCS
Solid Length 0.209 in
Suggested Max Deflection 0.099 in
Suggested Max Load 2.435 lbf
Total Coils 9.1
Wire Diameter 0.023 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 60609S
Ends Closed & Ground
Finish Passivated
Free Length 9.53 mm
Inside Diameter 2.59 mm
Material 316 Stainless Steel
Outside Diameter 3.76 mm
Part Type Standard
Rate 4.3 N/mm
SKU 60609SCS
Solid Length 5.31 mm
Suggested Max Deflection 2.51 mm
Suggested Max Load 10.83 N
Total Coils 9.1
Wire Diameter 0.58 mm
The 60609SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.023" diameter 316 stainless steel, the 60609S spring design exhibits reliable strength across its 9.1 active coils, withstanding repeated compression cycles with a maximum load of 2.435 lbf without succumbing to fatigue.

We manufacture the 60609S design to provide a compression spring that is 0.375" long at rest and provides a consistent rate of 24.57 lbs/in along its recommended maximum of 0.099" deflection. For best results, your application should fully accommodate the inner (0.102") and outer (0.148") diameters of this spring and be designed for its closed & ground end configuration.
