Century Spring

60377SCS - 1.25" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

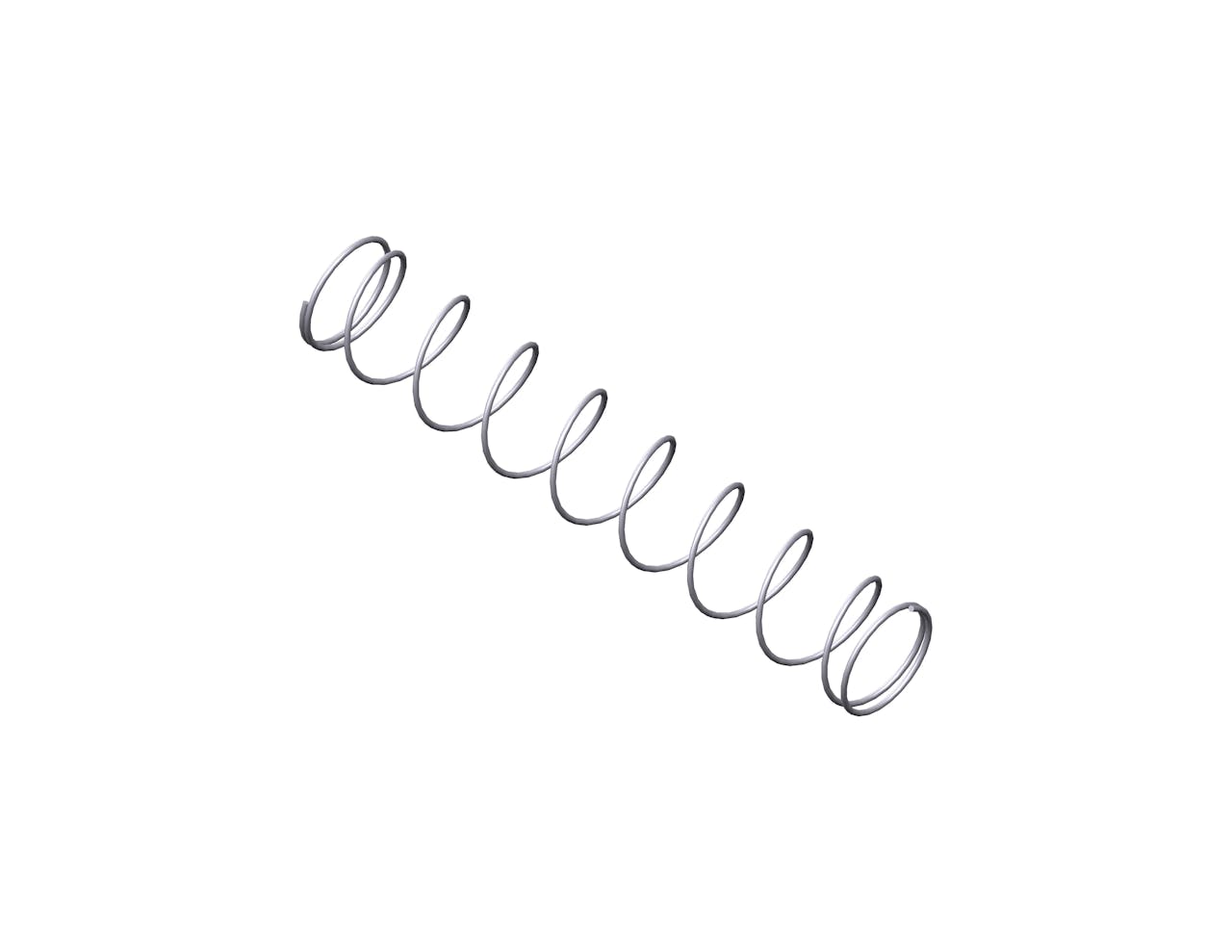

Compression spring manufactured from 316 stainless steel with 10.7 coils and closed ends. This spring features an O.D. of 0.218", and an I.D. of 0.196".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60377S
Ends Closed
Finish Passivated
Free Length 1.25 in
Inside Diameter 0.196 in
Material 316 Stainless Steel
Outside Diameter 0.218 in
Part Type Standard
Rate 0.24 lbs/in
SKU 60377SCS
Solid Length 0.129 in
Suggested Max Deflection 0.857 in
Suggested Max Load 0.202 lbf
Total Coils 10.7
Wire Diameter 0.011 in
The 60377S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 60377SCS compression spring is designed with a free length of 1" total of 8.9 coils, and a rate of 0.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 60377S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
