Century Spring

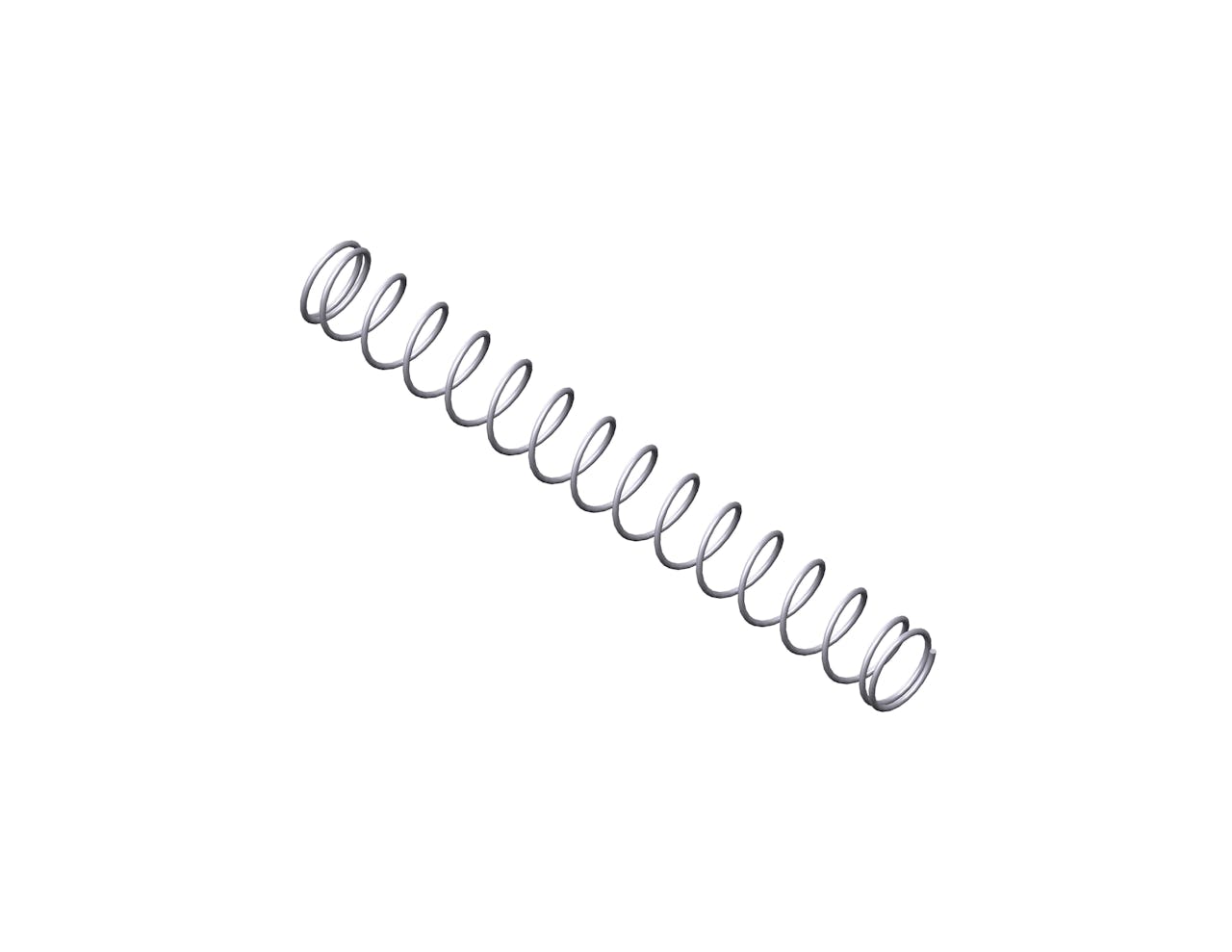

60299SCS - 1.5" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 16.4 coils and closed ends. This spring features an O.D. of 0.18", and an I.D. of 0.154".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60299S
Ends Closed
Finish Passivated
Free Length 1.5 in
Inside Diameter 0.154 in
Material 316 Stainless Steel
Outside Diameter 0.18 in
Part Type Standard
Rate 0.58 lbs/in
SKU 60299SCS
Solid Length 0.226 in
Suggested Max Deflection 0.678 in
Suggested Max Load 0.395 lbf
Total Coils 16.4
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 60299S
Ends Closed
Finish Passivated
Free Length 38.1 mm
Inside Diameter 3.91 mm
Material 316 Stainless Steel
Outside Diameter 4.57 mm
Part Type Standard
Rate 0.1 N/mm
SKU 60299SCS
Solid Length 5.74 mm
Suggested Max Deflection 17.22 mm
Suggested Max Load 1.76 N
Total Coils 16.4
Wire Diameter 0.33 mm
The 60299S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 60299SCS compression spring is designed with a free length of 1.25" total of 13.9 coils, and a rate of 0.67 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 60299S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
