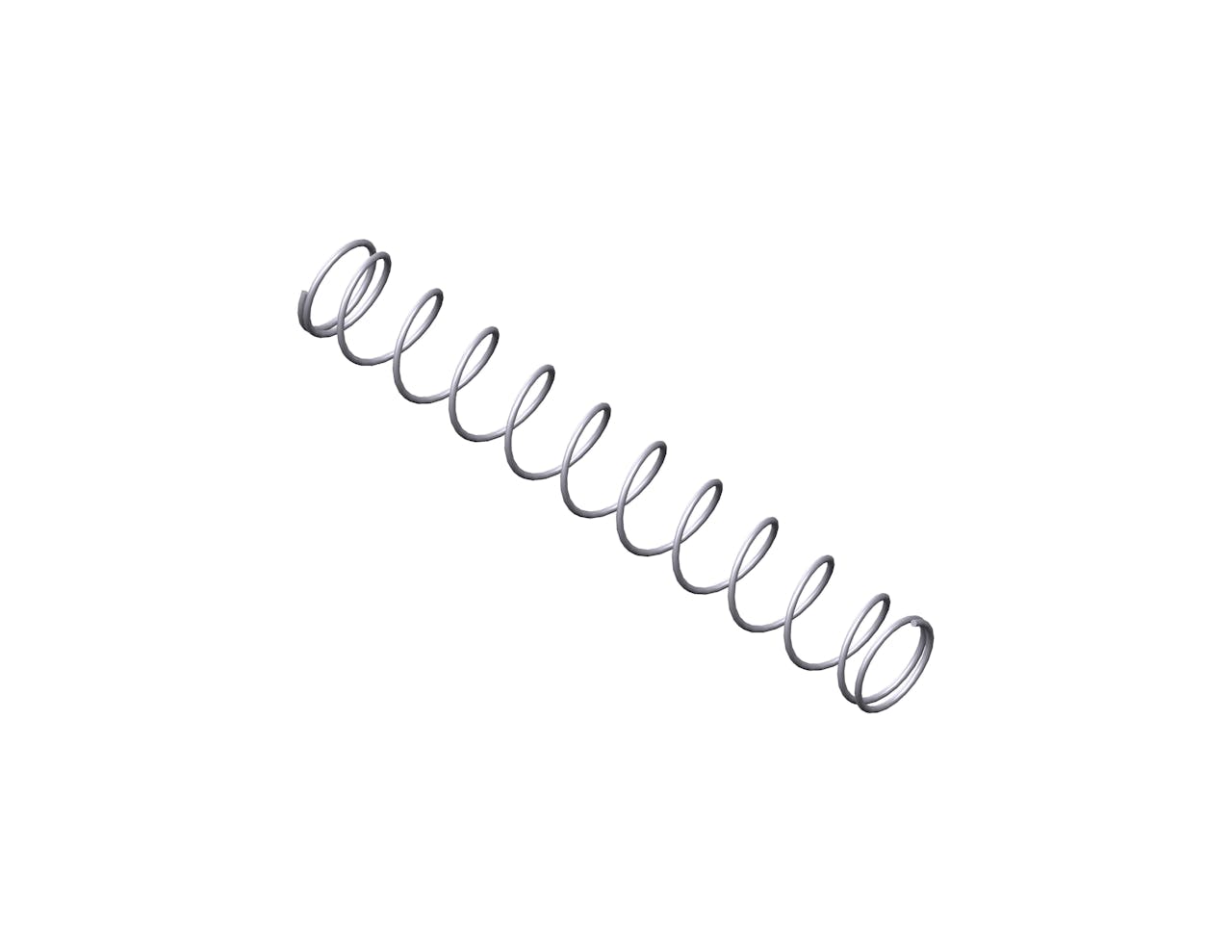

60286SCS - 1.25" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 12.8 coils and closed ends. This spring features an O.D. of 0.18", and an I.D. of 0.156".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 60286S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 1.25 in |
| Inside Diameter | 0.156 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.18 in |
| Part Type | Standard |
| Rate | 0.5 lbs/in |
| SKU | 60286SCS |
| Solid Length | 0.165 in |
| Suggested Max Deflection | 0.597 in |
| Suggested Max Load | 0.298 lbf |
| Total Coils | 12.8 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 60286S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 31.75 mm |
| Inside Diameter | 3.96 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 4.57 mm |
| Part Type | Standard |
| Rate | 0.09 N/mm |
| SKU | 60286SCS |
| Solid Length | 4.19 mm |
| Suggested Max Deflection | 15.16 mm |
| Suggested Max Load | 1.33 N |
| Total Coils | 12.8 |
| Wire Diameter | 0.3 mm |
The compression spring 60286SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 60286S compression spring design exhibits exceptional tensile strength and resilience.
The 60286S design is manufactured with a free length of 1.25", with an outer diameter of 0.18", an inner diameter of 0.156", and a total of 12.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.5 lbs/in.
The 60286SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 60286S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 60286S design is manufactured with a free length of 1.25", with an outer diameter of 0.18", an inner diameter of 0.156", and a total of 12.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.5 lbs/in.
The 60286SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 60286S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
