60232SCS - 0.5" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

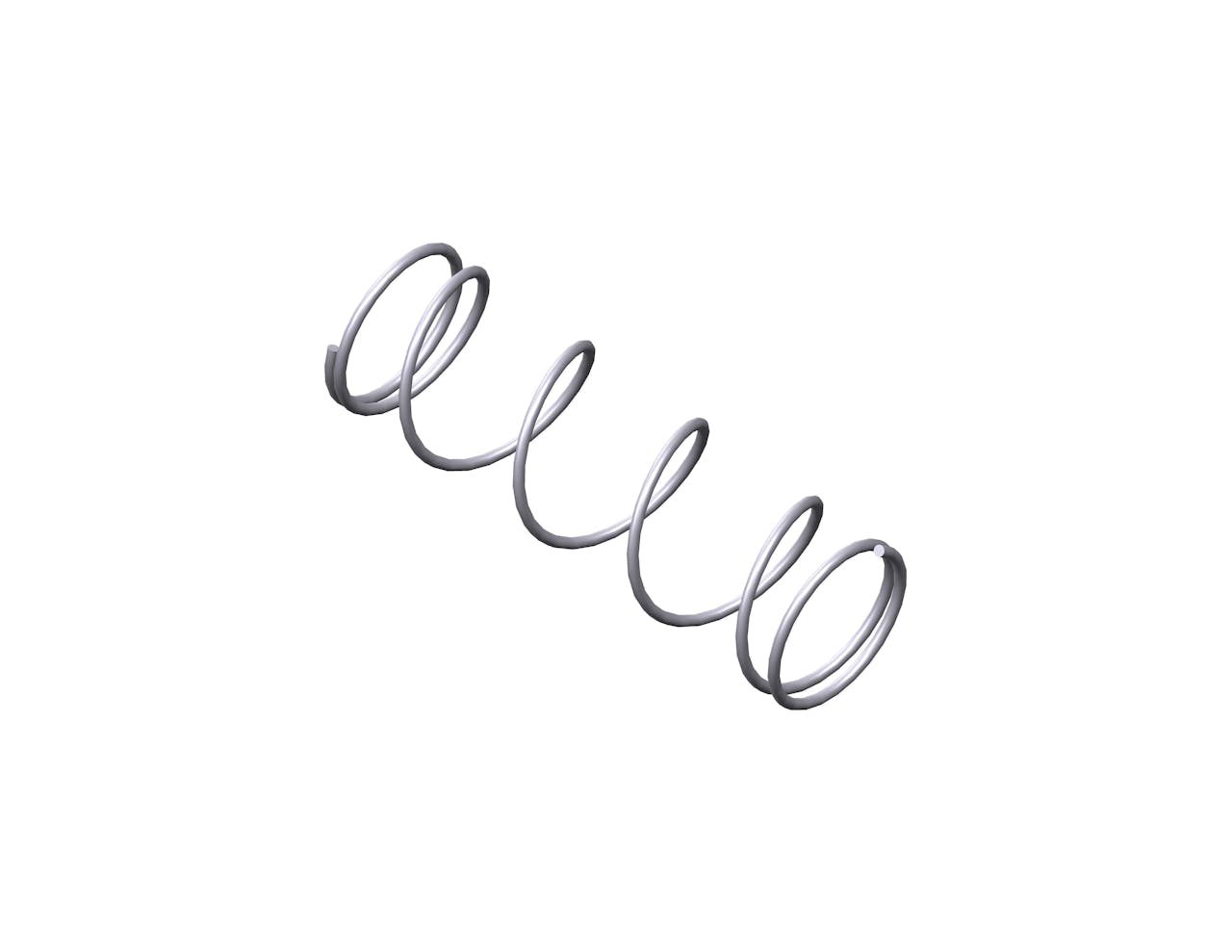

Compression spring manufactured from 316 stainless steel with 6.7 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.136".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60232S
Ends Closed
Finish Passivated
Free Length 0.5 in
Inside Diameter 0.136 in
Material 316 Stainless Steel
Outside Diameter 0.156 in
Part Type Standard
Rate 0.86 lbs/in
SKU 60232SCS
Solid Length 0.077 in
Suggested Max Deflection 0.234 in
Suggested Max Load 0.2 lbf
Total Coils 6.7
Wire Diameter 0.01 in
The compression spring 60232SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 60232S compression spring design exhibits exceptional tensile strength and resilience.

The 60232S design is manufactured with a free length of 0.5", with an outer diameter of 0.156", an inner diameter of 0.136", and a total of 6.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.86 lbs/in.

The 60232SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 60232S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
