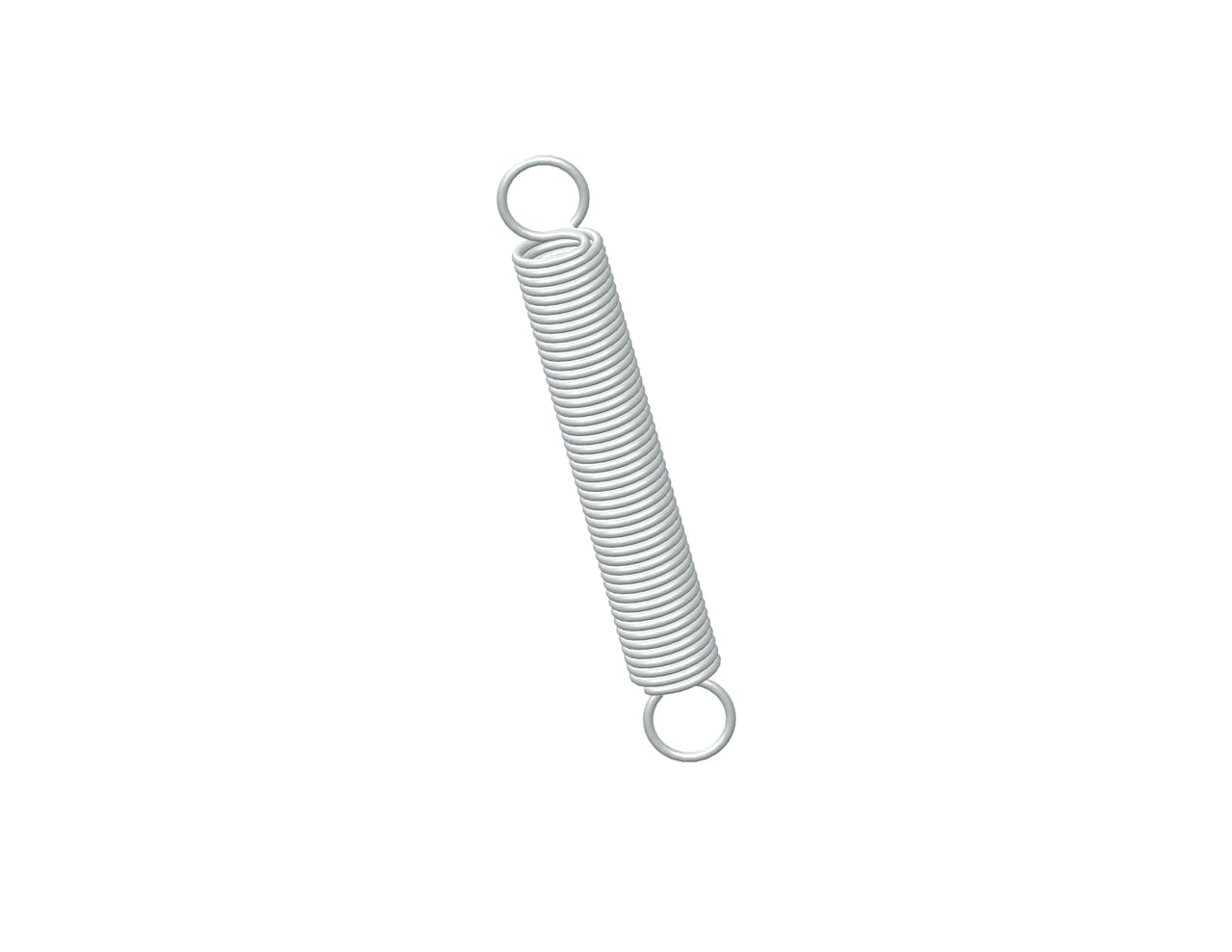

6021CS - 3.5 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 6021
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 3.5 in
Material 302/304 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 2.5 lbs/in
SKU 6021CS
Sugg Max Deflection 3.6 in
Sugg Max Load 11 lbf
Wire Diameter 0.055 in
