Century Spring

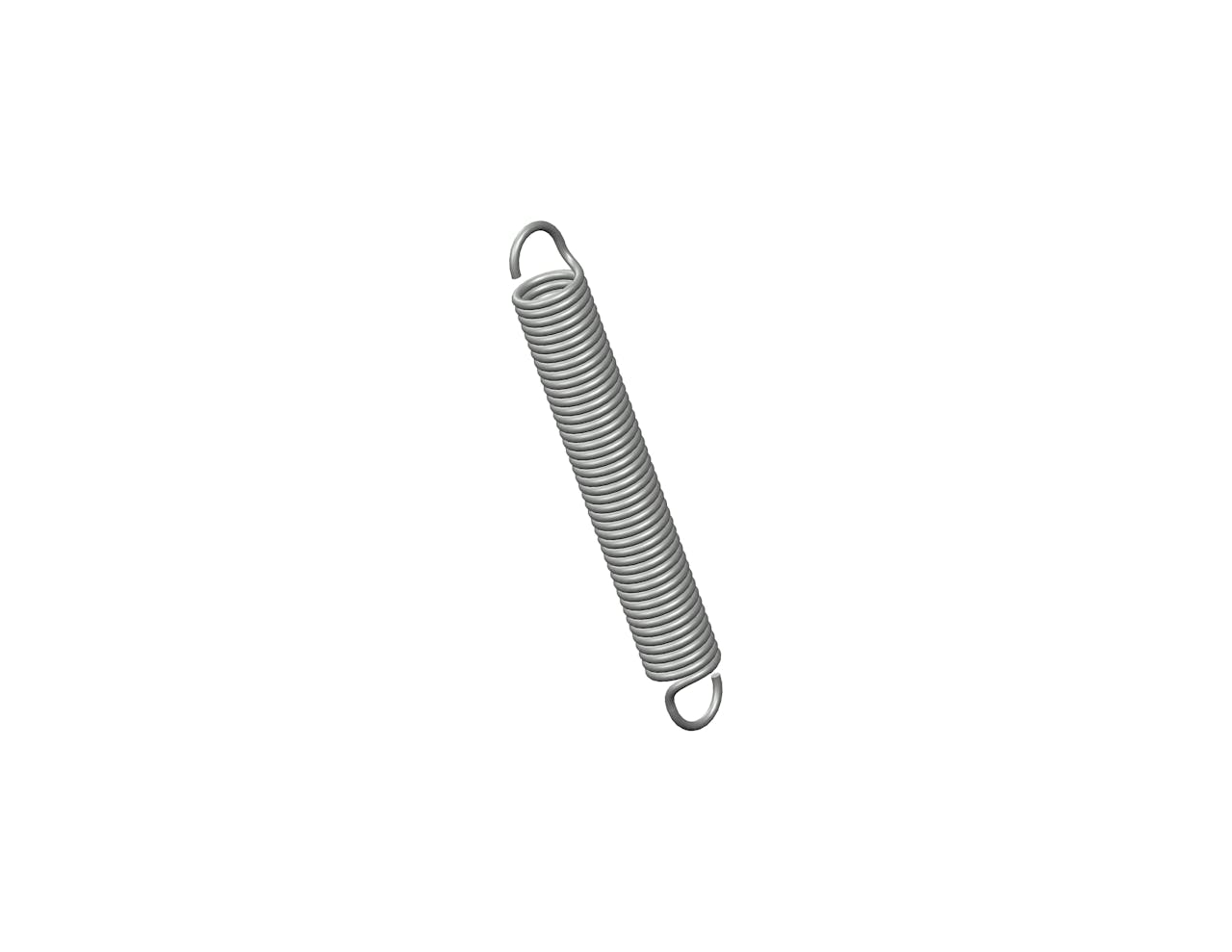

601CS - 8.5 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 1.125 Inch and an initial tension of 20 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 601
Ends Machine Hook
Finish Zinc
Initial Tension 20 lb
Length 8.5 in
Material High Carbon Steel
Outside Diameter 1.125 in
Part Type Standard
Rate 15 lbs/in
SKU 601CS
Sugg Max Deflection 4.4 in
Sugg Max Load 87 lbf
Wind Direction Left
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 601
Ends Machine Hook
Finish Zinc
Initial Tension 9.07 kg
Length 215.9 mm
Material High Carbon Steel
Outside Diameter 28.58 mm
Part Type Standard
Rate 2.63 N/mm
SKU 601CS
Sugg Max Deflection 111.76 mm
Sugg Max Load 386.98 N
Wind Direction Left
Wire Diameter 3.76 mm
